12V 22 Inch Truck LED Bar , Dual Row LED Light Bar Input Voltage 9-30V DC
12V 22 Inch Truck LED Bar , Dual Row LED Light Bar Input Voltage 9-30V DC
12V 22 Inch Truck LED Bar , Dual Row LED Light Bar Input Voltage 9-30V DC
12V 22 Inch Truck LED Bar , Dual Row LED Light Bar Input Voltage 9-30V DC
Specifications
Brand Name :
NEW WAY
Model Number :
NW-H-120
Certification :
IP68 ISO CE
Place of Origin :
China
MOQ :
20pcs, sample order for testing available
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100,000pcs per month
Delivery Time :
5-8 days
Packaging Details :
master carton
Packing Size :
70*27*27CM
LED :
3W One Led
Length :
560*82*88MM
OEM & ODM Service :
experienced
Waterproof Rate :
IP68
Car Make :
Universal
Beam :
SPOT/FLOOD/COMBO
warranty :
2 years
Description

12V 22 Inch Truck Led Bar Dual Row for Trucks with Wiring Harness Kit

ALL of our product own 2 and 3 years warranty for different kinds of products. During our warranty time, we promise, if customers have the approval showing product quality issues and if certified by NEW WAY engineers, we would request customers to ship back the failure parts and replace new items with the trans

Specifications

Product Name 22 Inch 120W Truck Led Bar Dual Row for Trucks with Wiring Harness Kit
Item NO NW-H-120
Length 22 Inch
Category LED Light Bar
Tag OFF ROAD LED LIGHT BAR, 120W LED LIGHTBAR
OEM &ODM Service experienced


Details

LED Power: 120W (40 x 3W High Intensity LED)
Beam Pattern: Spot Beam; Lumen: 8400LM
Input Voltage: 9-30V DC (fits 12V, 24V vehicles)
Working Lifespan: Over 30,000 hours
Working Temperature: -40~85 degrees Celsius
LED Color Temperature: Pure White 6000K-6500K
Material: 6063 Aluminum Profile, High quality Led Chips, PC Lens
Waterproof Rate: IP67; Waterproof, dustproof, quakeproof and anti-corrosive.
Certifications: CE, FCC and RoHS

NW-H-120 560*82*88mm 22" 120w 8400lm 1>Housing Material: Aluminum
2>Bracket Material: stainless steel
3>Beam:Spot /Flood / Combo
4>Lens Material : PC
5> Voltage :9-30V
6> LED type : 3W Epistar 7) Neutral White
NW-H-180 810*82*88mm 32" 180w 12600lm
NW-H-240 1060*82*88mm 42" 240w 16800lm
NW-H-300 1310*82*88mm 50" 300w 21000lm

Our Service

1. 24H/7D sales support.

2. Well trained sales team, easy to communicate.

3. OED& ODM service, customized logo and color box.

4. Long time parntarship, agent or even area elclusive agent.

Applications:

Off Road Lighting: Back Up Light, ATV, SUV, Truck, Trailer, Forklift, Trains, Boat, Outdoor lighting, etc.
Other Lighting: Excavator, Dozer, Road Roller, Crane, Mining, Tractor, Harvester, Grain Drill, Fire engine, Rescue Vehicle, etc.
Household Lighting: Garden, Backyard, Garage, Indoor Lighting. (Note: Use a voltage transformer/converter to convert the AC 110-120V to DC 12V.)

Advanced Chip Techs Make sure high brightness, light your way.

Adjustable Mounting Bracket

Adjustable mounting bracket makes changing direction of light beam easily

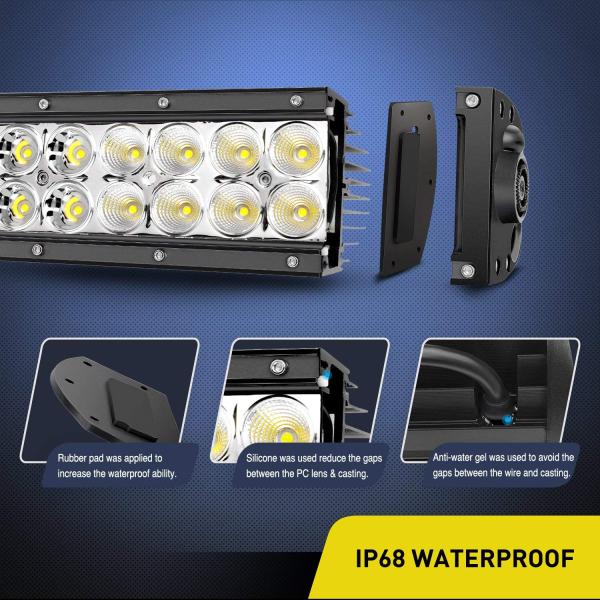

Outstanding Waterproof Grade

This Led light bar is well sealed with waterproof rubber pad &silicone sealing strip, the redesigned outer protective cover protects against water and dust.

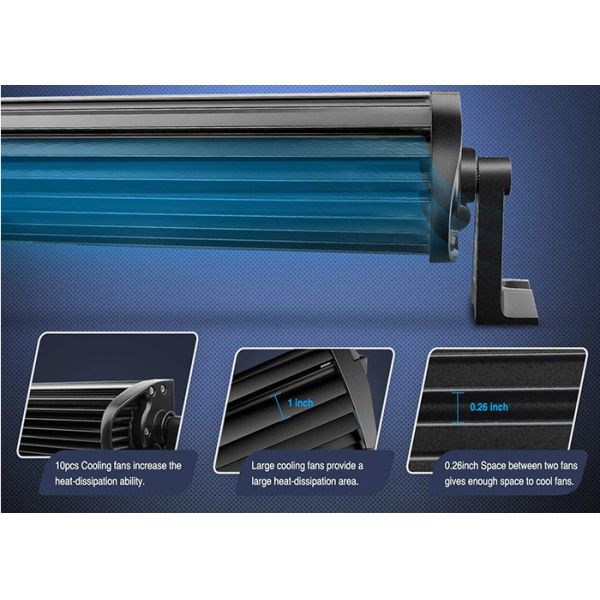

Effective Heat Dissipation

Cooling fans and High quality Die-casting Alu housing fast heat dissipation.

12V 22 Inch Truck LED Bar , Dual Row LED Light Bar Input Voltage 9-30V DC12V 22 Inch Truck LED Bar , Dual Row LED Light Bar Input Voltage 9-30V DC
