9 Inch All In One DVR car tft monitor , car tft lcd monitor with 4ch cameras recording
9 Inch All In One DVR car tft monitor , car tft lcd monitor with 4ch cameras recording
9 Inch All In One DVR car tft monitor , car tft lcd monitor with 4ch cameras recording
9 Inch All In One DVR car tft monitor , car tft lcd monitor with 4ch cameras recording
9 Inch All In One DVR car tft monitor , car tft lcd monitor with 4ch cameras recording
9 Inch All In One DVR car tft monitor , car tft lcd monitor with 4ch cameras recording
9 Inch All In One DVR car tft monitor , car tft lcd monitor with 4ch cameras recording
9 Inch All In One DVR car tft monitor , car tft lcd monitor with 4ch cameras recording
Specifications
Brand Name :
Vanwin Tracking
Model Number :
VW702-DVR
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen,Guandong
MOQ :
1 pc
Price :
negotiated
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
5000 pcs per month ;
Delivery Time :
3-7 working days
Packaging Details :
Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn
Power supply :
12V-24V DC optional
Screen Size :
7 inch TFT LCD with DVR quad picture
Resolution :
800xRGBx480
Screen Type :
16:9
Car Make :
All kinds
Warranty :
12 Months
Video inputs :
Four ways
Image format :
CIF/HD1/D1 optional
Description

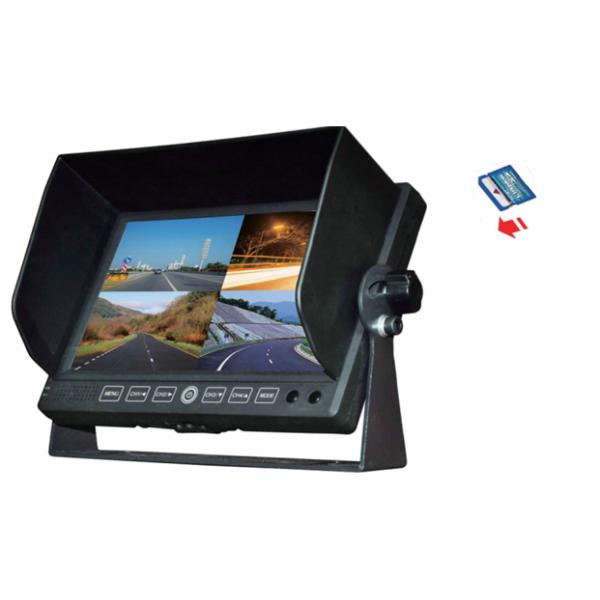

9 Inch All In One DVR car tft monitor , car tft lcd monitor with 4ch cameras recording

The 7inch/9inch monitor can support 4 camera inputs and 1way audio input and 32GB sd card storage, which is widely used for truck, trailer, coach bus and ect.

9 Inch All In One DVR car tft monitor , car tft lcd monitor with 4ch cameras recording

Specification

Screen Ratio:16:9
Back Light Luminance:LED, 300cd/㎡
Resolution:800xRGBx480
Compatiblesystem:NTSC & PAL (automatically)
OSD control:Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)
View angle:Hor. L(70) R(70) Ver. UP(50) DOWN(70)
Image reversion:UP/Down and Left/Right
Power requirement:12V DC (12-24V DC optional)
Power consumption:＜8W
Size:180mm*121mm*24mm
Key color: Black rubber oil, radium carving, through blue light
Shockproof level:4G
DVR image quality:DVR recording 4 channels video signal, VGA resolution:640*480, Recording speed: 60FPS, Storage format: AVI
Memory interface:1 SD interface
Video storage:SD high-speed card, maximum support 32G
AV Inputs:4 way video input,1way audio input
Number of Trigger and display:4 triggers
Optional functions:4 PIN connector, Butterfly style bracket
Other features:4 channel display for reversing, Full image/2 images/4 images adjustable, Built-in speaker, With removable visor
Accessories:Remote controller, Power supply cable , User manual, Bracket

9 Inch All In One DVR car tft monitor , car tft lcd monitor with 4ch cameras recording

BNC and 4-pin cable for optional below

9 Inch All In One DVR car tft monitor , car tft lcd monitor with 4ch cameras recording

Packaging & Shipping

1. Box can be color box, white box, OEM

2. Package includes power line, bracket, remote controller, headrest frame, insert card and user manual.

3. Goods will be shipped out within 2~7 days after the receipt of payment.

Why choose us?

1. 0.1% return rate , 99.5%qualified rate—strict QC system, complete QC process, including IQC,PQC,FQC, QAC,QC staff consist of engineers, technicians and production staff with 8+ years professional experience and fully trained to conduct QC

2. 25% Profit is invested on R&D—20% profit is invested on R&D to meet the market demand, we focus on the market feedback and develop market-oriented new models. new items will be released each season by our 10-years-experience R&D technicians.

3.Strictly follow the quality control system,five steps system:Incoming quality control→Semi-finished full-function test→Aging test→Final quality control→Out-going quality control.

4. 24 hours a day to serve you—24 hours customer service to solve your problems at shortest time, your inquiry& request will be replied within 24hours.

5.OEM&ODM professional service.
