98% Accuracy GPRS SD Card Bus People Counter with 1 / 2 / 3 / 4 doors for City Buses

Why choose the bus people counter system?

1. with double lens for each counting camera .,add much higher accuracy.
2. Suitable for 8V-36V power supply.Especially for bus /school bus application.
3. Just count people not count animals or object.
4. Developed by ourselves ,with patent protection.
5. 98% up accurate,High accuracy despite crowded group
6. Not affected by clothes color and passenger height etc
7. Accurate counting for On and Off through Front and Back door
8. Automatically generate statistic report
9. Easy installation and uninstallation
10. More accurate surveillance and more effective management on ticket, conductor and driver.

Our GPRS Bus People Counter is an automatic bus passenger counting machine with high accuracy (95% -98%), which is developed based on binocular stereo vision technology and intelligent video analysis technology.

With a passenger counting system, transport managers gain accurate key performance measures like passengers per mile and number of passengers per day.

For every cycle time from door-open to door-close, the passenger number of get-on or get-off with time&date and gps positioning information will be stored into SD card.

And all the counting data(including passenger nubmer, time, date, gps positioing infomation) will be sent to the server or 3rd-party application server(need customization) through the 2G wireless network.

We will provide the protocol to integrated with your third-party system with RS232 and RS485 port.

Counts two passengers at once

A single sensor is able to function properly even if a wide door allows two passengers to get on/off at the same time.

Stable accuracy more than 95%

Accuracy is based on average accuracy of an actual vehicle count (in our recommended environment).
*Note: Accuracy may vary depending on the installed environment and boarding/alighting conditions.

Outputs live images

The camera's video output function allows viewing of the conditions near the middle door (back door), which is difficult to see, and also records the images in the video event data recorder.

Bus People Counter Description&Specification:

System: Linux

CPU: TMS320DM6446

Operation Interface: OSD with mouse and remote control

Video Counting input: Max 2 channels

Video Counting output: 1 channel

Accuracy: 95% up

Operating voltage: DC 8—36V

Operating power: ≤4W

Operating temperature: -20°C -- +80°C

Operating humidity: 10% -- 95%

USB port: Standard 2.0

Counting input port: Aviation

Bus People Counter includes the whole suit and installation guide below

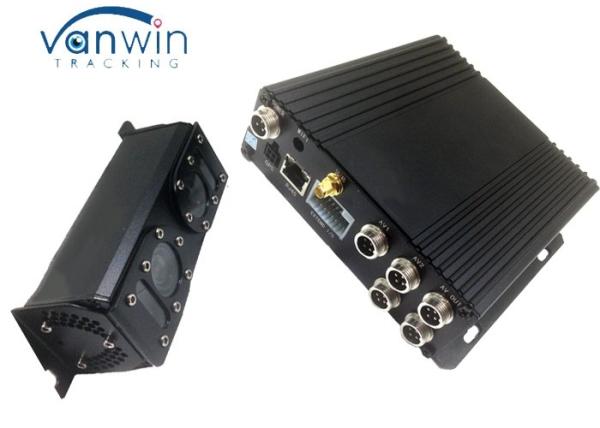

1. Main Unit

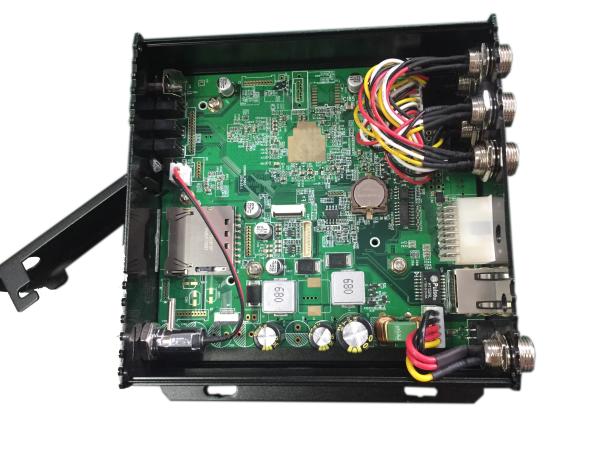

Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to SD card storage or GPRS&3g

2. Binocular Camera

Mounted on the ceiling of the doors, counts passengers get in or out of the bus.

3. Door Sensor

Door open/close sensor, is used for sensing the door open or close status.

Wire Connection

1. connect “CAM1” to “AV1” ; connect “CAM2” to “AV2” ;

2. connect “CAM3” to “AV3” ; connect “CAM4” to “AV4” ;

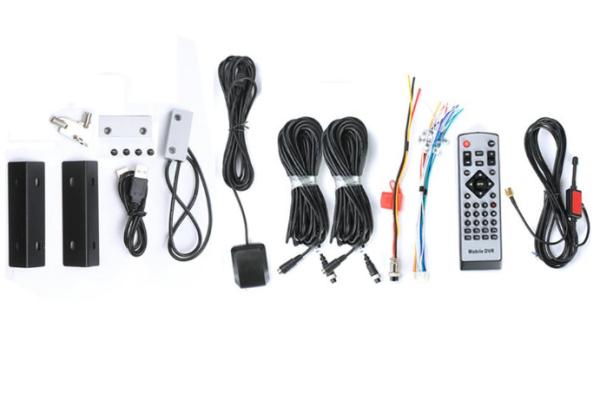

This is pure counter system in neutral package. The picture below shows the family of pure counter system.

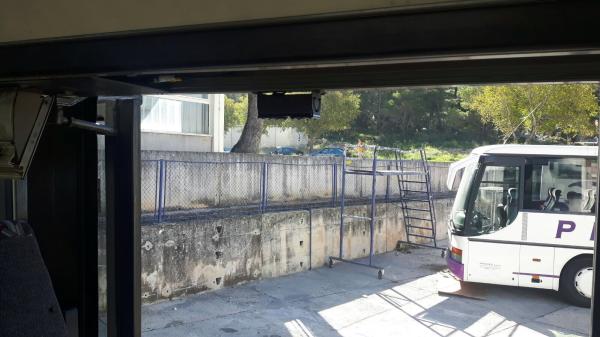

Install counting camera on top of the door

Find the suitable point on top of the door

1 If the bus has 2 doors, then use 2 counting cameras.

If one door please only connect counting camera No.1.

2 Vertical principle. It requires to face the counting camera vertical toward the ground. Use the bracket to adjust until it is vertical. The minimum angle for each single adjustment is 2.5 degree for the easiest adjustment purpose.

3 There are 4 holes on the back of the counting camera for easy fix purse by screw. M2.5 X 5 screw is recommended. This design is for easy fixing by means of other tools such as normal camera bracket, customized boom etc.

4 Make sure the counting camera is fixed on the center of the top with range 220 centimeter (minimum) from top to pedal.

5 For good performance, the lens should be selected according to target vehicle. Firm and stable feature are high demanded for the camera installation.

Platform show

Notice: If you buy our 3G counter(with mdvr together), you will use our platform ;if you buy our GPRS counter/counter ,also you can use our management platform tool ,also you can use your own platform with our protocol by RS232/485 interface.

Please contact us for specific manual in details
