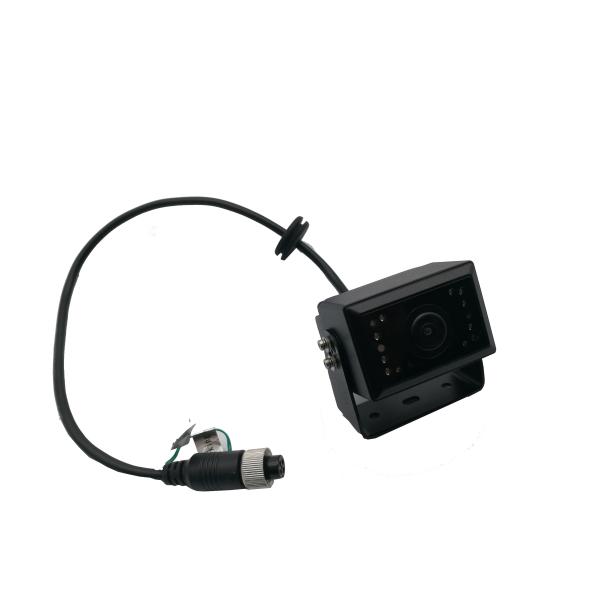

Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
Specifications
Brand Name :
Vanwin Tracking
Model Number :
VW-C391
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen, China
MOQ :
5pcs
Price :
negotiated
Payment Terms :
Western Union, T/T, Paypal
Supply Ability :
5,000 pcs per month; 170 degree wide horizontal angle bus / Truck / Trailer Camera for Front, side and back view
Delivery Time :
2-3 days for samples,15-30 days for large orders
Packaging Details :
Neutral carton box package by default
Type :
Bus / Truck camera
Image sensor :
1/4" CMOS
TV system :
PAL or NTSC
Power :
DC12 or 24V
Waterproof :
IP69
Warranty :
12 months
LED :
12 IR Lights
Sensor :
CMOS
Lens :
2.1mm
IR Distance :
10M
Resolution :
720P, 1.0MP
Application :
Bus, Truck, Van, Trailer, ship and ect.
Description

170 degree wide horizontal angle bus / Truck / Trailer Camera for Front, side and back view

The wide bus / truck camera is new arrival which can be used for many vehicle, like van, truck, school bus, city bus with good night vision and special design. It can work with mobile dvr, dvr, monitor or other monitoring / reversing system.

Main Features

  1. Image sensor: CP7210 CMOS 1/4
  2. Resolution 720P, 1.0MP
  3. Effective pixels: 1280(H)*720(V)
  4. System: PAL or NTSC or PAL&NTSC adjustable
  5. Viewing angle: horizontal 170 degree
  6. Image mode: mirror or non-mirror or mirror&non-mirror adjustable
  7. Parking guide line: without or with or adjustable
  8. Appearance: aluminium alloy material, out-hung design
  9. Waterproof level: IP69K
  10. Power supply: DC12V
  11. Application: suitable for car, bus, truck

Specifications

SPECS Model No.:VW-C391
Image sensor

CP7210 CMOS 1/4
DSP chip AVS7110 image correction chip
Resolution

720P / 1.0MP
Illuminance 0.1Lux,infrared night vision
Viewing angle 2.1 mm waterproof lens, 170 degree
Image Mirror as default (Could set mirror&non-mirror switchable)
System PAL system as default (Could set PAL&NTSC switchable)
Reference line Off as default (Could be opened by software)
Appearance and Application Aluminium alloy material, out-hanging design, suitable for bus, truck and small vehicles
Waterproof level IP67
Shockproof level 4G
Connectors 4PIN or RCA
Power supply DC12-24V
Power consumption About 1.8W
Maximum current 150MA
Key control Support single key adjustment
Output 1 channel CVBS output
Working temperature -20℃ to 70℃
Storage temperature -30℃ to 80℃
Size 67*55*43.5mm
Weight About 170G
Accessories hexagon screws, user manual


Outline Drawing

Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle

Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle

Front / Side / Back View Mobile Surveillance Cameras With 170 Degree Wide Horizontal Angle
