Specifications
Brand Name :
Vanwin Tracking
Model Number :
VW9204 fuel kit
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen,China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T or western Union or Paypal; 12 V Car CCTV DVR System 720P Mobile DVR AHD 1.3MP Security Cameras
Supply Ability :
5,000pcs per month
Delivery Time :
2-3 days for samples,15-30 days for large orders
Packaging Details :
Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Power Supply :
8V-36V
Storage Capacity :
2.5'' SATA HDD/SSD like 500GB / 1TB / 2TB HDD
Basic Function :
4 cameras monitoring , 4G GPS WIFI optional
Extend functions :
fuel level monitoring, temperature monitoring, people counting , speed limit
Applicable :
big trucks, fuel tank truck, transportation trucks
OEM / ODM :
Support or Customize
Shock Resistance :
The world class level with military use
Type :
Vehicle security system
Warranty :
16 months
fuel sensor :
Capacitor fuel sensor or ultra sonic fuel sensor
Description

4ch camera car dvr with wifi gps vehicle fuel tracking system

Feature:

  • The interface can operate reliably and stably in complex environments
  • Video encoding H.265, H.264 is optional
  • Support 4G WIFI and GPS functional modules
  • Supports a 2.5-inch optional SSD/HDD hard disk
  • Supports one SD card
  • Rich peripheral interfaces
  • Support external UPS battery life

High scalability

MDVR Specification:

9204 series is a high-performance and highly extensible product specially developed for vehicle-mounted video monitoring and remote video monitoring. It adopts a self-pop-up structure design of hard disk, high-speed processor NT98323 and embedded operating system, and integrates IT cutting-edge field H.264/H.265 video compression/decompression, 4G network, GPS/BD positioning and other technologies. It has the characteristics of strong earthquake resistance, simple appearance, flexible and convenient installation, comprehensive function and high reliability. Suitable for public security police, financial escort, long-distance passenger transport, road administration inspection and other vehicle movement monitoring fields.

Item parameters
Audio and Video Inputs video input

AHD:4ch 1080/25fps

IPC:Scalable 1-4ch
audio input 4ch audio input
Audio and Video outputs video output Default 1-way CVBS output (VGA output optional)
speech output 1ch audio output
Audio and video parameter coding video coding H.264 Main Profile/H.265
Resolution 1080P/720P/D1 optional
audio coding Default G.726,G.711A optional
storage space HDD 1 2.5-inch optional: SSD/HDD hard disk
SD Support 1 SD card
wireless network 4G Supports 1 SIM card, optional: all major communication modules in the world
WIFI 2.4/5.8G optional
locate mode BD/GPS Support for mixed positioning, speed detection, time synchronization
interface USB USB2.0 interface, support export data, external engineering treasure
serial port Support 2 RS232, 1 RS485, can be connected with external sensor
I/O 4 level inputs, 2 analog inputs, 2 alarm outputs
network interface Support external IPC, support hybrid NVR function
· Intercom 1 special intercom handheld mark interface
Physical Specifications size 176.9mm(L)*186.8mm(W)*54mm(H)
weight

NW:1.4kg

GW:2kg(M51Hv-DGNE1-L as a standard)
work environment operating temperature -20〜+70℃
operating humidity 8%〜90%(No condensation)

Other

 operator schema remote control,APP,WEB
· Gravity sensor Built-in G-Sensor
Configurable AI algorithms Face recognition ,People Counting,ADAS+DMS

Fuel sensor specification

ZC08 Fuel sensor is independent research and development by Vanwin Tech, which within innovative technologies. It can detect fuel level continuously. And The resolution is less than 1mm. JT606 can be cut the length to fit the height of fuel tank .Simply flanged installation that no need extra screws. Wide voltage input to make sure no voltage limits under any situation.

Features:

1)It can be cut according to the height of fuel tank.

2)Integrated structure without any elastic elements, also support various signal output.

3)Push-button field calibration, it’s very convenient.

4)Wide Power voltage input.

NO. Item Performance parameters
1 Collection principle Capacitance
2 Size

100mm to 1500mm(minimum can be detected

100mm,maximum can be detected 1500mm)
3

Electrical

parameters

 Input DC:4—70V
4

Power

Consumption

 0.13W/5V, 0.19W/12V, 0.38W/24V
5

Signal output

(can be

customized)

 Voltage output:0—5V
Digital output:RS-232 RS-485
Analog resistant output:10—500Ω
Current output: 4—20mA
Communication baud rate:2400,4800,9600,57600,115200
6

Detection of liquid

type

 Diesel, bio diesel, kerosene, gasoline, etc.
7

Use of the

environment

 Work temperature:-40℃~+85℃
Save temperature:-40℃~+105℃
8 Material Aluminum alloy
9 Protection class IP67
NO. Item Performance parameters
1 Collection principle Capacitance
2 Size

100mm to 1500mm(minimum can be detected

100mm,maximum can be detected 1500mm)
3

Electrical

parameters

 Input DC:4—70V
4

Power

Consumption

 0.13W/5V, 0.19W/12V, 0.38W/24V
5

Signal output

(can be

customized)

 Voltage output:0—5V
Digital output:RS-232 RS-485
Analog resistant output:10—500Ω
Current output: 4—20mA
Communication baud rate:2400,4800,9600,57600,115200
6

Detection of liquid

type

 Diesel, bio diesel, kerosene, gasoline, etc.
7

Use of the

environment

 Work temperature:-40℃~+85℃
Save temperature:-40℃~+105℃
8 Material Aluminum alloy
9 Protection class IP67

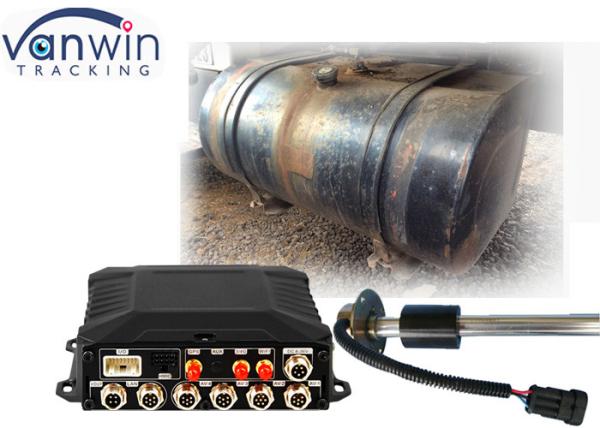

Product Picture

4ch Wifi GPS Vehicle Fuel Tracking HD Mobile DVR with 8V-36V Power Supply and High Capacity4ch Wifi GPS Vehicle Fuel Tracking HD Mobile DVR with 8V-36V Power Supply and High Capacity4ch Wifi GPS Vehicle Fuel Tracking HD Mobile DVR with 8V-36V Power Supply and High Capacity

Application
4ch Wifi GPS Vehicle Fuel Tracking HD Mobile DVR with 8V-36V Power Supply and High Capacity4ch Wifi GPS Vehicle Fuel Tracking HD Mobile DVR with 8V-36V Power Supply and High Capacity4ch Wifi GPS Vehicle Fuel Tracking HD Mobile DVR with 8V-36V Power Supply and High Capacity
