Specifications
Brand Name :
Vanwin Tracking
Model Number :
VW706LA
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1PC
Price :
USD30-USD70
Payment Terms :
L/C, T/T, Western Union,paypal
Supply Ability :
1000PCS/month
Delivery Time :
3-15days upon payment
Packaging Details :
Neutral package, carton box
Brightness :
500-650cd/㎡
Product name :
AHD car monitor with DVR for 2 channel video
Support :
2 splits, DVR function, Sd card storage
Car make :
Universal,buses,Bus
Warranty :
18 Months
Resolution :
1024*R.G.B*600
Screen size :
7"
Power supply :
DC 12V-24V
Color :
Black
Video input :
Quad/4-CH Inputs
Size :
7inch(9inch, 10.1 inch as optional)
Viewing angle :
160°
Format :
PAL,NTSC
Backlight :
LED
Description

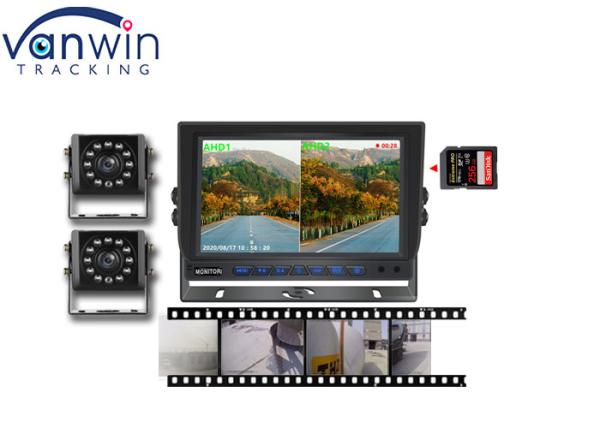

7inch 9inch 10 inch AHD car display monitor with 2 splits for 2 channel video recording

SPECIFICATION
AV Resolution:1024*R.G.B*600

Back Light Luminance:LED,500-650cd/㎡
View angle:L/R:85°,UP:85°,down:85° degree


Two-channel AHD video input,adjustable display of single and two-segment images and picture-in-picture images

Full images/2 images adjustable

Support AHD720P/960P/1080P and CVBS multi-video hybrid input
Audio Input:Built-in speaker,1 way audio input(V2)


2 ways Trig Trigger priority:V2>V1, Reverse reference point
TWO channels independently adjust the image flip in left, right, upper and lower directions
with light sensor receiver,can adjust screen brightness automatically day & night
System:PAL&NTSC auto-switching


Supports fast photography

Supports replay previous videos and images.

supports pause, fast forward, fast backward and other operations.


Video files can be locked for protection.

Locked files will not be overwritten and deleted.
Storage card supports overlay deletion automatically and manual deletion
Video storage:SD high-speed card, maximum support256G
Video compression format:H.264 compression mode


Power supply: Power supply: DC 9V-36V input,12V output
High-low voltage protection&short circuit protection


Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃


Appearance color: black rubber paint
standard:Metal U type bracket, Detachable sunshade
/Butterfly bracket/fan bracket (optional)
RCA/ 4pin connector (Optional)

PRODUCT PICTURE

7'' 9'' 10'' 2 Splits AHD Car Display  TFT Car Monitor For 2 Channel Video Recording7'' 9'' 10'' 2 Splits AHD Car Display  TFT Car Monitor For 2 Channel Video Recording7'' 9'' 10'' 2 Splits AHD Car Display  TFT Car Monitor For 2 Channel Video Recording7'' 9'' 10'' 2 Splits AHD Car Display  TFT Car Monitor For 2 Channel Video Recording

INSTALLATION

7'' 9'' 10'' 2 Splits AHD Car Display  TFT Car Monitor For 2 Channel Video Recording

7'' 9'' 10'' 2 Splits AHD Car Display  TFT Car Monitor For 2 Channel Video Recording

APPLICATION

7'' 9'' 10'' 2 Splits AHD Car Display  TFT Car Monitor For 2 Channel Video Recording

7'' 9'' 10'' 2 Splits AHD Car Display  TFT Car Monitor For 2 Channel Video Recording7'' 9'' 10'' 2 Splits AHD Car Display  TFT Car Monitor For 2 Channel Video Recording
