4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR
4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR
4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR
4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR
4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR
4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR
4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR
4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR
4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR
4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR
Specifications
Brand Name :
Vanwin
Model Number :
9208
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1pc
Price :
USD100-USD200
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
1000PCS/month
Delivery Time :
3-7 working days
Packaging Details :
Carton Box
Material :
Aluminum alloy
video inputs :
8 channel video inputs
Resolution :
1080P/720P/D1 optional
Backup :
SD+HDD
Basic functions :
3G, 4G, GPS, BD, WIFI, alarm
Extensive functions :
RFID, AI detect, Fuel sensor, temperature sensor,
Applicable for vehicles :
big bus, double-decker bus, big trucks, trailers
Description

MDVR 4G GPS WIFI 8 Channel Mobile DVR AHD 1080P HDD GPS Tracker

MDVR 4G GPS WIFI 8 Channel Mobile DVR AHD 1080P HDD Real time View GPS Tracker for Vehicle Truck Bus Security

PRODUCT INTRODUCTION

9208 is designed for big vehicles' video monitoring(e.g. big buses, Double-decker bus, big trucks, trailers etc), remote video monitoring development of a high performance, high expansion and extension of the product, the use of hard disk can be self-pop-up structure design and high-speed processor NT98323 and embedded operating system, integration of IT cutting-edge field H.264/H.265 video compression/decompression, 4G network, GPS/BD positioning technology. It has the characteristics of strong earthquake resistance, simple appearance, flexible and convenient installation, comprehensive function and high reliability. Suitable for public security police, financial escort, long-distance passenger transport, road administration inspection and other vehicle movement monitoring fields.

STRONG POINTS

  • 8 Channel Video inputs for big vehicles' multiple channel video recording
  • The interface can operate reliably and stably in complex environments
  • Video encoding H.265, H.264 is optional
  • Support 4G WIFI and GPS functional modules
  • Supports a 2.5-inch optional SSD/HDD hard disk
  • Supports one SD card
  • Rich peripheral interfaces
  • Support external UPS battery life
  • High scalability

PARAMETER

Item parameters
Audio and Video Inputs video input 8ch AHD video input
audio input 4ch audio input
Audio and Video outputs video output Default 1-way CVBS output (VGA output optional)
speech output 1ch audio output
Audio and video parameter coding video coding H.264 Main Profile/H.265
Resolution 1080P/720P/D1 optional
audio coding Default G.726,G.711A optional
storage space HDD 1 2.5-inch optional: SSD/HDD hard disk
SD Support 1 SD card
wireless network 4G Supports 1 SIM card, optional: all major communication modules in the world
WIFI 2.4/5.8G optional
locate mode BD/GPS Support for mixed positioning, speed detection, time synchronization
interface USB USB2.0 interface, support export data, external engineering treasure
serial port Support 2 RS232, 1 RS485, can be connected with external sensor
I/O 4 level inputs, 2 analog inputs, 2 alarm outputs
network interface Support external IPC, support hybrid NVR function
Intercom 1 special intercom handheld mark interface
Physical Specifications size 176.9mm(L)*186.8mm(W)*54mm(H)
weight

NW:1.4kg

GW:2kg(M52Hv-DGNE1-L as a standard)
work environment operating temperature -20〜+70℃
operating humidity 8%〜90%(No condensation)
Other operator schema remote control,APP,WEB
· Gravity sensor Built-in G-Sensor
Configurable AI algorithms Face recognition ,People Counting,ADAS+DMS

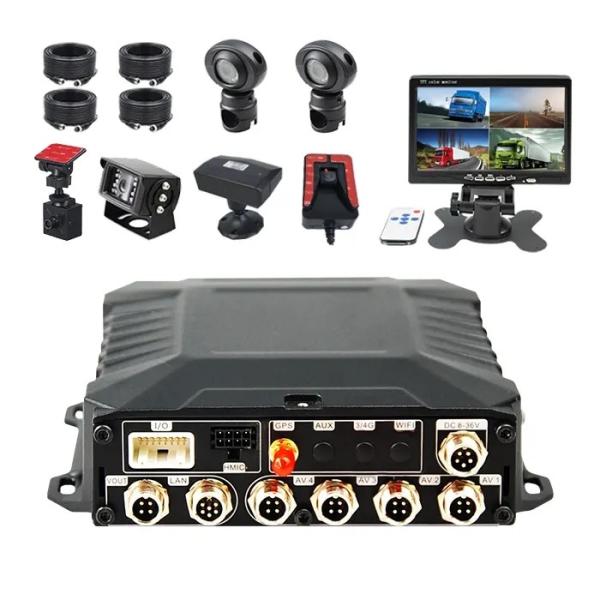

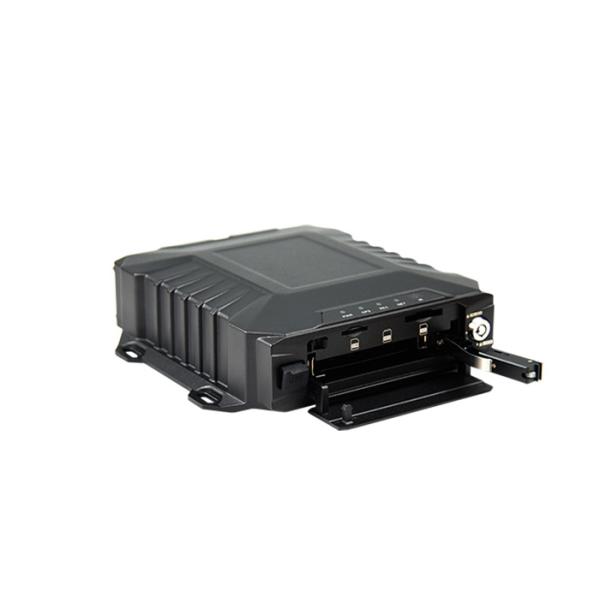

PRODUCT PICTURE

4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR

APPLICATION

4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR

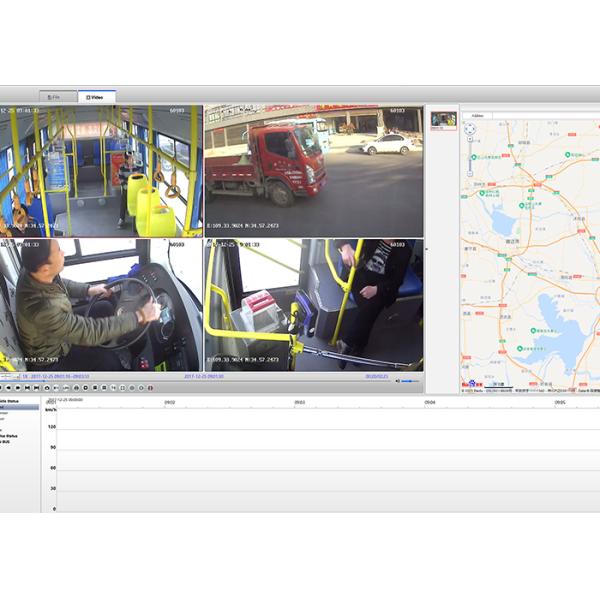

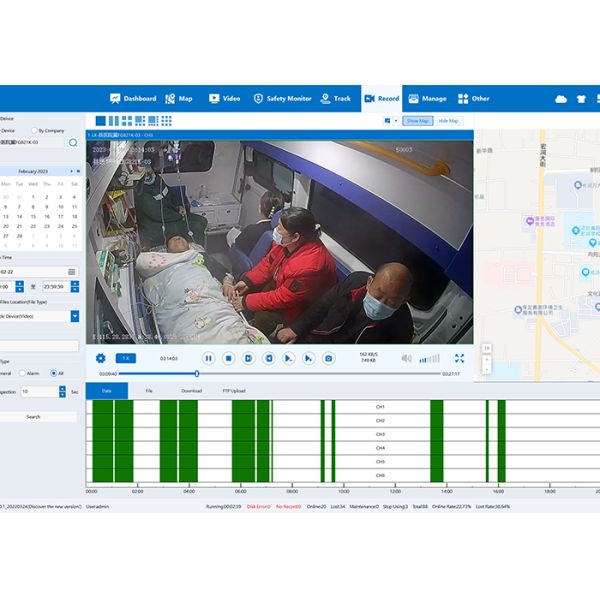

ONLINE VIDEO STREAMING

4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR4G GPS WIFI HDD SD AHD 1080P 8 Channel 3g Mobile DVR
