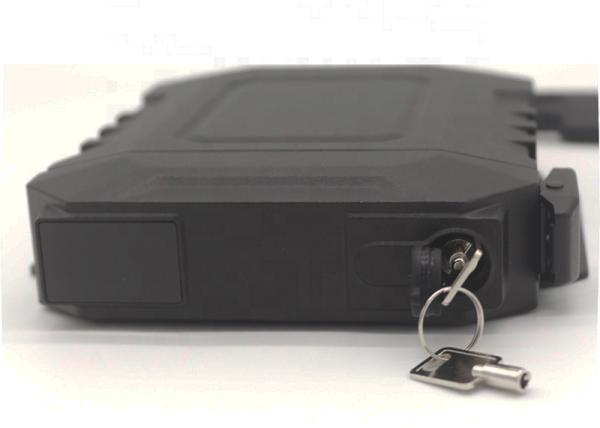

4CH 1080p Car Waterproof 3G Mobile Dvr H.264 With SSD
4CH 1080p Car Waterproof 3G Mobile Dvr H.264 With SSD
4CH 1080p Car Waterproof 3G Mobile Dvr H.264 With SSD
4CH 1080p Car Waterproof 3G Mobile Dvr H.264 With SSD
4CH 1080p Car Waterproof 3G Mobile Dvr H.264 With SSD
4CH 1080p Car Waterproof 3G Mobile Dvr H.264 With SSD
Specifications
Brand Name :
Vanwin Tracking
Model Number :
VW904W-HD
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen,China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T or western Union or Paypal
Supply Ability :
5,000pcs per month
Delivery Time :
2-3 days for samples,15-30 days for large orders
Packaging Details :
Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Video Format :
H.264
Waterproof :
Support
AHD Camera :
720P/960P/1080P
Power input :
DC 8V~36V
Alarm :
6CH Alarm inputs, 2CH Alarm output
Resolution :
4ch 720P(1280x720), 960p, 1080P
Storage :
2TB hdd storage+1*sd card
Optional function :
oil sensor and so on,3G/4G,Wifi
Software Support :
client for PC and Mobile Phone, server, playback software
Application :
Bus, truck, taxi, cab, petrol, excavator, mining truck fleets
Description

4CH 1080p Car Waterproof 3G mobile dvr cctv with SSD record storage for Vehicles

  1. VW904W-HD Waterproof is a professional HD H.264 mobile digital video recorder(DVR) specially designed for vehicle surveillance purpose.
  2. It adopts high speed processor hardware and embedded Linux system.
  3. The state of the art mobile dvr use the latest IT technologies, such as H.264 code,data flow streaming, A/V noise reduction,module-style design, anti-vibration technology, wide-range voltage design.
  4. It supports analog AHD record and hybrid model which can easily upgrade your old CIF/D1 analog mobile DVR to HD solution(high definition.)
  5. This powerful mobile DVR has robust hardware for anti-shock and rich interfaces with simple deploy and reliable work.

Main Specifications

OS Linux
User interface Support E-set, remote controller, remotely operation, SD card, etc to configure
Language English,Chinese (option customized)
Security User password, Administrator password management
Video & preview Input/output 4 channel video input, 1 channel video CVBS output; 1.0Vp-p, 75Ω
OSD Overlays letters... like date /time, vehicle ID,GPS,etc into the video
Compression H.264 High Profile Compression
Dual stream Record with HD video and remotely live view with lower stream
preview 1 channel/Quad preview; support events trigged to full screen and video switch
Speed(frame rate) PAL: 100fps, each channel 25fps; NTSC: 120fps, each channel 30fps
Resolution 720P /D1/CIF adjustable
Image quality High, middle, and low option
Video rate

CIF: 384 kbps/512 kbps/768 kbps/1024 kbps/1536 kbps, 5 grades adjustable

D1: 512kbps/768kbps/1024kbps/1536kbps/2048kbps, 5 grades adjustable

720P:1024kbps/2048kbps/3072kbps/4096kbps/5120kbps, 5 grades adjustable
Audio Audio input/output

4 channel audio input/1 channel audio output; independent handheld talk

MIC port
Compression G.726
Record Storage

Basic type: support 2 sd cards &external fire box, max

support 256GB

Functional type: support 2 sd cards $ external fire box, And

supports 2.5' SSD, max support 2TB.
Format FAT32
Record strategy

Default power-on record, also support time schedule record,

alarm record and events trigger record
Alarm Input 4 channel level signal and 2 channel analog signal input
Output 2 channel level signal output
Communication Serial Port Support 2 channel RS232
port Network 10M/100M network port
3G/4G/WIFI Support 3G/4G and compatible with GPRS, EDGE, etc; built-in WIFI
G-Sensor Built-in G-Sensor
GPS(option) Support GPS, option/BD/GLONASS
Firmware upgrading SD card; remotely upgrade; HDD upgrade; USB pen driver upgrade
Power supply Power manage ACC on/off; delay off;
Voltage DC:+8V ~ +36V
Voltage output + 12V@ 2.5A : +5V@1A

Power failure

protection

 Built-in UPS, to ensure the record completely when power failure suddenly;
Consumption Working: <10W; Support turning off with no power consumption
Work Environment Temperature -25℃ ~ +60℃
Humidity 10% ~ 95%
Size 154(W) x 39(H) x 137(D) mm
Weight Net weight: 1.6KG; Gross weight: 2.5KG

4CH 1080p Car Waterproof 3G Mobile Dvr H.264 With SSD

Main Features

1. Industrial-grade design with special vehicle port for reliable working on harsh environment
2. Wide voltage support over-load ,short circuit ,reverse connect protection
3. UPS power for continual work
4. Basic type: support 2 sd cards &external fire box, max support 256GB
5. Functional type: support 2 sd cards $ external fire box, And supports 2.5' SSD, max support 2TB.
6. 4G/WIFI transmit; multiple grade image quality transmitting option
7. GPS/BD/GLONASS global positioning
8. Powerful software platform including remote preview, playback, broadcast, talk and more
9. IP communication
10. PTTgroup talk function
11. Support multiple serial port extension

3G Client Monitoring Platform CMSV6

4CH 1080p Car Waterproof 3G Mobile Dvr H.264 With SSD

FQA

1. Do you provide the free CMS?

Yes, is free of charge. We will provide you the authorized code after you buy our equipment.

2. What is the minimum requirement to run this software?

CPU 2.5G four core; Memory 8GB; HDD 1TB;

3. Which OS can run this software?

server2002 / server2008 / Windows xp / Windows 7 / Windows 10, both 32bit and 64bit.

4. After we build our own server, can the IP of units be changed remotely?

Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.

Any further questions, please don't hesitate to contact us, we are very pleased to help you.

Below are some screen shot of our CMS:
