1/3 CMOS 1080P Bus Security Wide View Camera For Surveillance / Reversing
1/3 CMOS 1080P Bus Security Wide View Camera For Surveillance / Reversing
1/3 CMOS 1080P Bus Security Wide View Camera For Surveillance / Reversing
1/3 CMOS 1080P Bus Security Wide View Camera For Surveillance / Reversing
1/3 CMOS 1080P Bus Security Wide View Camera For Surveillance / Reversing
1/3 CMOS 1080P Bus Security Wide View Camera For Surveillance / Reversing
1/3 CMOS 1080P Bus Security Wide View Camera For Surveillance / Reversing
1/3 CMOS 1080P Bus Security Wide View Camera For Surveillance / Reversing
Specifications
Brand Name :
Vanwin Tracking
Model Number :
VW-381
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen, China
MOQ :
5pcs
Price :
negotiated
Payment Terms :
Western Union, T/T, Paypal
Supply Ability :
5,000pcs per month; 4 Way System Waterproof Video Truck Side View Security 4G Vehicle Camera system
Delivery Time :
2-3 days for samples, 5-10 days for large orders
Packaging Details :
Neutral carton box package by default
Type :
Truck Side View rearview camera
Application :
side view or rearview camera for bus, truck, van
TV system :
PAL or NTSC
Voltage :
DC 12V/24V
Connector :
4 pin aviation, RCA
Warranty :
12 months
Resolution :
CCD 600TVL / 720P /960P /1080P
View angle :
110 degree in horizontal
Description

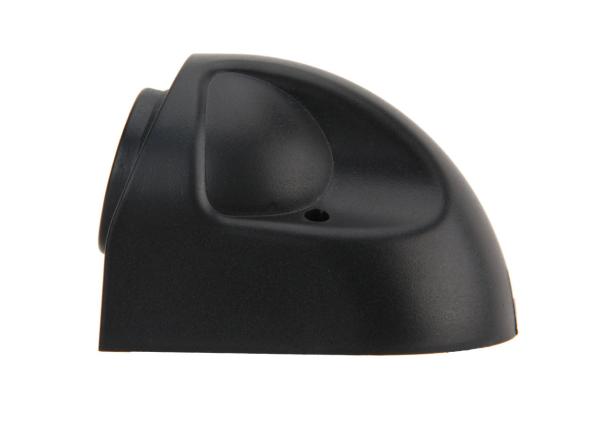

1/3" CMOS1080P Bus security wide side view camera for surveillance or reversing
It can be used with mobile DVR system or reversing system for side view, rearview.

It's very welcomed with its good night vision, sturty housing, and special mold. It's very sturdy and not easily broken.

wide side view camera Main Specifications

Technology
 infrared
Sensor AHD 1080P
Shape Streamlined camera
Types wide view camera
Waterproof IP67
Audio Optional audio
Lens 2.8MM/3.6MM
IR LED 5PCS
Power DC12V/24V
Color Black
Connector 4 PIN or RCA connector
Material aluminium alloy
Effective Pixels 720P 1.0MP/ 960P 1.3MP/1080P 2.0MP
Operating Temperature -25℃~70℃
Warranty 1 Years

1/3 AHD 1080P wide side view camera for example
Chip Technical Parameters
Image Sensor 1/2.9" IMX323 200W Video Out 1CH BNC AHD output,
Support TVI/CVI/CVBS Mode
Image System PAL/NTSC WDR auto
Resolution 1920 (H)×1080(V) SNR >45db
Min.illumination 0.01Lux full color White Belance AWB
Electronic Shutter 1/25s~1/100,000s DR 76db
Video Standard AHD Advanced Function 2D_DNR
Frame Rate 1920×1080@25 fps;
1920×1080@30 fps;		 Working Environment -25℃~+70℃,Humidity 95%
Lens 2.1/2.8/3.6 Power supply DC 12V +/-15%,
