Mini Size 4CH Mobile DVR Add Msata SSD Supported With 4G Vehicle Gps Tracking Mdvr

SD Card MDVR Description

The Mini Size Add Msata SSD Supported 4CH Mobile DVR is an advanced video recording solution designed for mobile surveillance applications. Compact and efficient, this DVR is perfect for vehicles like buses, taxis, and fleet management systems, providing real-time monitoring and high-quality video capture.

Msata SDD SD Card MDVR Key Features:

• Compact Design: The mini size makes it easy to install in various vehicles without taking up too much space.

• 4-Channel Input: Supports up to four cameras simultaneously, allowing for comprehensive coverage and monitoring of multiple angles.

• Msata SSD Support: Equipped with an mSATA slot for solid-state drives, ensuring fast data transfer and enhanced reliability.

• High-Resolution Recording: Capable of recording in high-definition, providing clear video evidence for security and safety.

• Real-Time Playback: Immediate video playback capabilities for quick access to recorded footage.

• Robust Build: Designed to withstand harsh conditions, making it suitable for mobile environments.

• User-Friendly Interface: Intuitive controls and settings for easy operation and configuration.

​4CH SDD MDVR Applications:
Ideal for use in public transportation, logistics, and any mobile surveillance needs where reliability and video quality are paramount.

Product Specifications: SD Card Mobile DVR

• Item	Parameter		Specification
  System	Language		English/Chinese
  	OSD		Graphic User Interface(OSD menu)
  	Password		User password/Administrator password
  Video	Input		Support 4ch 1080P/720P/D1 video input Support 2ch 1080P AHD + 2ch 720P /2CH D1 video input Support 2ch 720P AHD + 2ch D1 video input
  	Output		1ch video output(V-OUT), 1ch VGA video output
  	Display		1CH/4CH display
  	Standard		PAL/NTSC ( PAL@60 frame 1080P; NTSC@60 frame 1080P )
  	Image Compression		H.264 Main profile, 100fps
  Audio	Input		4CH audio input
  	Output		1ch audio output(A-OUT)
  	Recording Mode		Synchronous recording in audio&video
  Image Processing & Storage	Video format		CIF / HD1 / D1 / 960H / 720P/1080P.
  	Video Stream Standard		ISO14496-10
  	Video Bit Rate(kbps)		CIF:1536Kbps ~ 128Kbps HD1/D1:2048Kbps ~ 400Kbps, 720P:4096Kbps ~ 512Kbps 1080P: 4096Kbps ~ 1024Kbps
  			4 levels settings optional, highest: level 4; lowest: level 1
  	Audio Bit Rate		40KB/s
  	Storage		Support 1*SD card, Max 512GB
  Alarm	Input		3CH alarm input
  	Output		1CH alarm output, high level 12V output
  Communication Port	RS232 Interface		Support 1 RS232 interface
  	network interface		Support a 6 Pin header network interface, support access to local network and report to server,connect the IP cams.
  	USB2.0 Interface		Support 1*USB interface for software upgrading and record file copy
  Wireless	3G		3G(HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA) module optional
  	4G		4G(FDD-LTE/TDD-LTE) module optional
  	WIFI		WIFI module(2.4/5.8GHz) optional
  GPS	Support built-in GPS module, Geographical co-ordinates, driving speed can be written in coding flow, and uploaded via wireless(optional)
  G-Sensor	Build-in G-Sensor
  Software	PC Playback	Play back video on computer and analyze vehicle information from recording file
  	CMS	Video preview, GPS uploading, alarm uploading, central command parameter configuration etc. via wireless
  Software Upgrading	Support USB upgrading, SD card upgrading and CMS remote upgrading

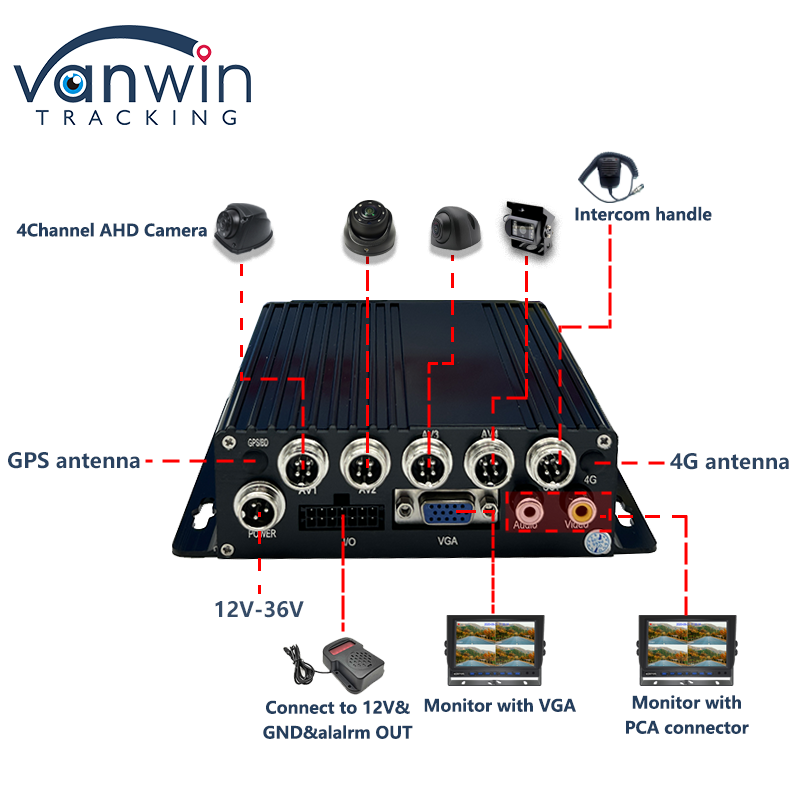

• • SDD SD Card Mobile DVR Photos
•

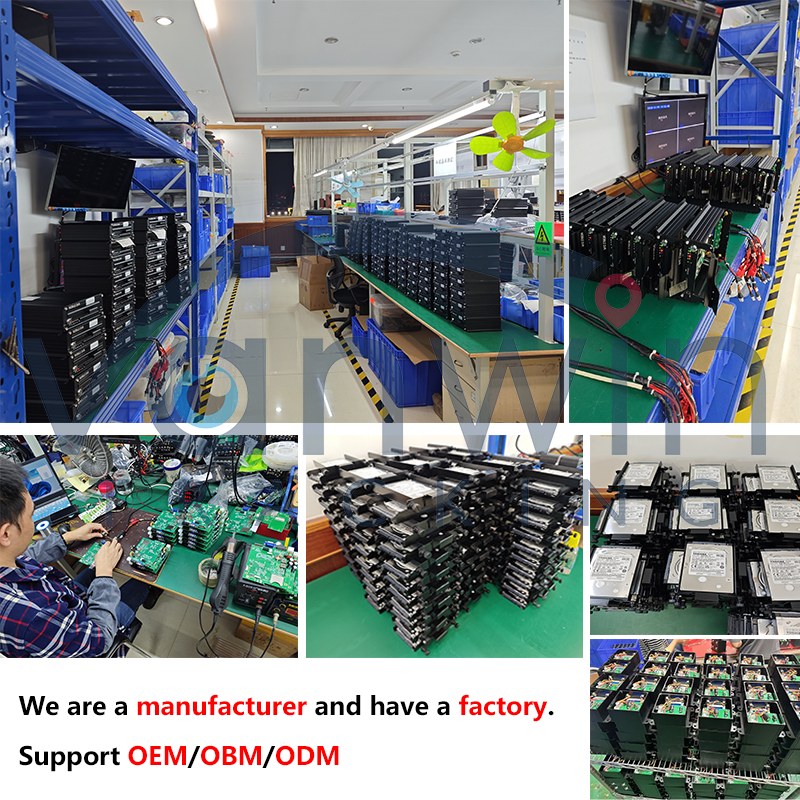

• About Us

• Why Choose us?

  We have always adhered to the concept of sincerity, kindness, and altruism,customer-oriented, and do our best to help customers benefit mankind!We believe in making the world a safer place for drivers and pedestrians We do this professionally by owning our entire manufacturing process, by having a deep understanding of the vehicle safety field with over 15 years of experience, and by using only the highest quality materials and up-to-date with the most advanced AI technology

•
• FAQ

• Q1: What is the storage capacity of the mSATA SSD that can be added?
  A1: The Mini Size Add mSATA SSD Supported 4CH Mobile DVR can accommodate mSATA SSDs up to 2TB, depending on the specific model used.

  Q2: How many camera inputs does the DVR support?
  A2: This DVR supports up to 4 camera inputs, allowing for multi-channel recording and monitoring.

  Q3: Is the DVR compatible with any specific camera brands?
  A3: The DVR is compatible with most standard analog and IP cameras. Always check the specifications of your cameras for compatibility.

  Q4: Can I access the DVR remotely?
  A4: Yes, the DVR supports remote access through mobile apps and web browsers, enabling real-time viewing and playback from anywhere.

  Q5: How do I install the mSATA SSD?
  A5: The mSATA SSD can be easily installed by opening the DVR casing and connecting the SSD to the designated mSATA slot. Detailed instructions are provided in the user manual.

  Q6: What is the power requirement for the DVR?
  A6: The DVR typically requires a DC 12V power supply. Ensure you use the recommended power adapter for optimal performance.

  Q7: Does the device support loop recording?
  A7: Yes, the DVR supports loop recording, allowing it to overwrite the oldest footage when the storage is full.

  Q8: What video formats does the DVR support for playback?
  A8: The DVR supports various video formats, including H.264 and H.265, ensuring efficient storage and playback.

  Q9: Can the DVR be mounted in a vehicle?
  A9: Yes, the compact design makes it suitable for installation in vehicles, including cars, buses, and trucks.

  Q10: What warranty is provided with the DVR?
  A10: The DVR comes with a standard one-year warranty, covering manufacturing defects and hardware issues.
