Specifications
Brand Name :
Vanwin Tracking
Model Number :
VW708AI
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen,China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T or western Union or Paypal
Supply Ability :
5,000pcs per month;
Delivery Time :
2-3 days for samples,15-30 days for large orders
Packaging Details :
Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Power Supply :
8V-36V
Mouse Operating :
Support
Storage Capacity :
HDD/SSD, can support 2TB
Software Support :
Client, Server, Playback Software
Applicable :
Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining truck fleets
System Upgrading :
Supporting SD card, hard drive upgrading and remote upgrading
Basic Function :
8 1080P cameras monitoring with 4G real time, GPS tracking, Wi-Fi
Cameras :
1~4 Analog or AHD 1080P cameras
Dimensions :
150*137*60MM
Alarm Inputs :
6CH level alarm inputs
Playback :
Playback with Google map route
Video input :
8CH 4P 1080P /1080N/ 960P / 720P
Description

8CH AI MDVR 4G GPS DVR Vehicle for bus support ADAS DMS BSD with 4G 5G Car black box Video Recorder for school bus

The MDVR supports 8 channel FULL 1080P video recording, 3G/4G wireless live video transmission through PC&phone remotely, with GPS tracking on google map, wifi auto downloading, with RJ45, RS232&RS485 serial port, I/O port interface for multiple outer device integration. Its storage (max 4TB) lasts more than 30 days recording.

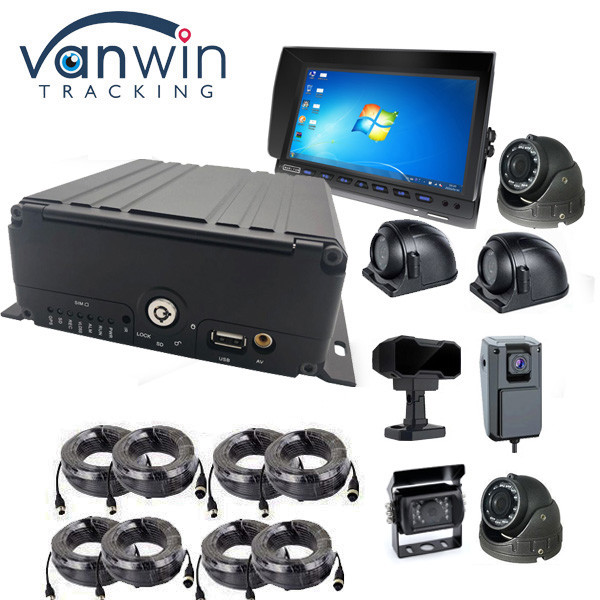

The complete system includes:

1. One 8CH MDVR with 4G/3G GPS WIFI G-sensor for Option
2. DSA+ADAS built-in
3. 6-8 pcs 1080p / 960p cameras with extension cables
4. One monitor for the driver
5. HDD 500GB/1TB/2TB
6. Micphone, Talkback device, Panic button
  • Easy Install Camera System – come with 4CH Mobile DVR,4pcs 1080P cameras,7 inch HD VGA monitor and all the accessories required for installation are already equipped, such as differenct length extension cables,tape,screws and so on
  • DVR for Long Loop Recording – ① It have HDD +SD Card slot where you can insert a HDD/SSD up to 2TB and 256GB SD card (SD card not included) ② H.265 Video Format – H.265 coding offers longer recording time saving up to 30-40% of storage space than H.264 systems
  • Cameras for all-Round Monitoring – ① 4pcs 1080P AHD 2.0MP metal cameras,all 3.6MM lens ② side view and rear view camera are IR night vision and waterproof ③ the indoor dome camera without IR and not waterproof, built in Microphone for recording,so it is very suitable to install behind the windshield
  • 7 inch HD VGA Monitor – ① Provide 8FT monitor power supply wires,more installation locations to choose ② Powered directly from the MDVR, more convenient to install ③ Screen resolution: 1024*600
  • Well Protected by Super-capacitor – designed to record reliably even when effected by shocks and strong vibrations. MDVR Support 5s recording and mandatory event videos saving
  • Professional 4CH MDVR system for effective fleet management - It’s designed for various vehicles management, and widely used in buses, coaches, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.

Main Specification

Operating System
Linux
Language
English, Chinese or Customized language.
Video Compression
H.264/H.265
OSD
Support time, date, vehicle ID, image, etc.
GUI
OSD Interface
Can external connect to LCD and set the system specifications by remote
Video
and Recording
Video Input
8CH 1080P AHD/Analog/Compound video input, aviation connector,
1.0Vp-p, 75Ω
Video Output
1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω.
Support 1CH full screen and 4CH division.
Preview
Single/8CH Pictures Preview, support full screen of event trigger or
back view of car reversing
Recording
Resolution
Support 1080P/720P/D1/HD1/CIF, support at maximum 8 Channels 1080P
Video Rate
8CH @1080P PAL, 1*15fps@1080P PAL,1*20fps@1080P NTSC
Audio
Audio Input
8CH Aviation connector inputs
Audio Output
1CH Aviation connector output
Communication Interface
Optional for 1CH RS232 or 1CH RS485
Wireless Transmission
Support built-in 3G/4G wireless transmission, WCDMA, CDMA2000,
Location /G-sensor
Support built-in GPS/BD module, built-in G-sensor, can analysis and playback for vehicle driving route
Video Storage
Supports 2*2.5-inch hard disks, maximum supports 2*4TB solid state drives, thickness 14MM
Security Management
User Password or administrator password management, support screen locked
Power and
Consumption
Power Management
Self-adaptive wide voltage input, with protect functions for overload, undervoltage, short circuit, reversing connection, etc
Support time setting startup/shutdown, delayed power off function
Power and Consumption
Input Voltage
DC:+8V - +36V
Output Voltage
+12V 1.5A,+5V 1.5A
Power-off Protection
UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off.
Working environment
Temperature
-40℃ - +70℃
Humidity
20% - 80%

Main Features

  • H.265 video compression, multi code stream.
  • Support 8CH 1080P/720P HD real-time video inputs. Also, support 4CH analog cameras inputs or compound inputs for 2CH HD cameras and 2CH analog cameras.
  • 1CH VGA output is optional.
  • With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.
  • 8-36V wide voltage power supply, super low power consumption. With overload/ undervoltage/ shortcircuit/ reversing protection, support all vehicles.
  • Support a 2T 2.5 -inch HDD and 1 256G SD card storage
  • With watchdog abnormal restart protection function, it can better protect the machine and video.
  • Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
  • Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.
  • Support 8CH alarming inputs and 1CH independent alarm input.
  • Optional for 1CH RS232 Serial port or 1CH RS485 extension.
  • Support GPS/G-Sensor.
  • Support remote operation and monitoring by 3G.
  • Support ministry of communications agreement, support SMS remote configuration and equipment control.
  • Support voice broadcast, intercom and text schedule dispatch.
  • Support fuel sensor, temperature sensor, POS, LED advertising screen.
  • Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.
  • With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.
  • Support all vehicles, including bus, taxi, truck, school bus, etc.

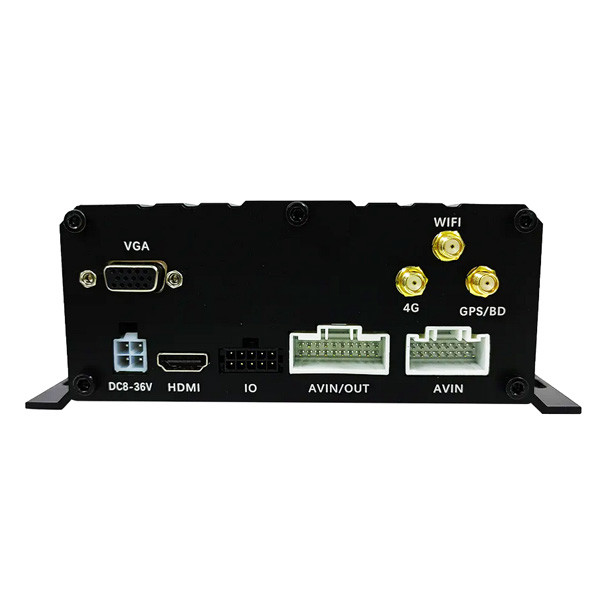

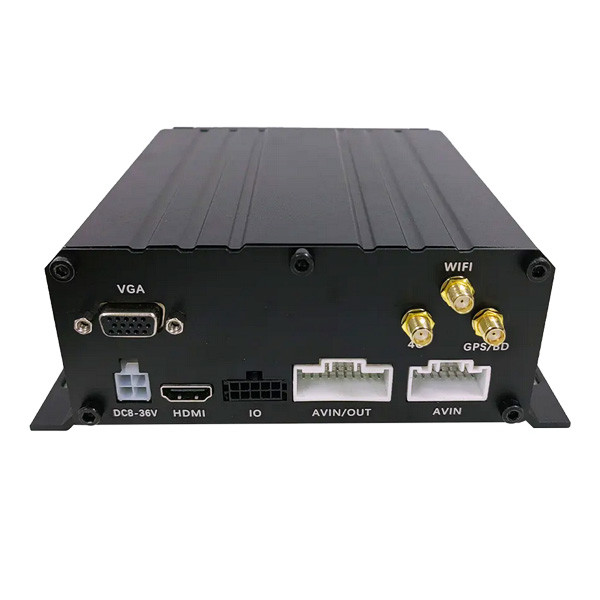

Back View for 8CH 1080P MDVR

8CH AI MDVR 4G GPS DVR Vehicle For Bus Support ADAS DMS BSD With 4G 5G Car Black Box Video Recorder For School Bus

8CH AI MDVR 4G GPS DVR Vehicle For Bus Support ADAS DMS BSD With 4G 5G Car Black Box Video Recorder For School Bus

8CH AI MDVR 4G GPS DVR Vehicle For Bus Support ADAS DMS BSD With 4G 5G Car Black Box Video Recorder For School Bus

8CH AI MDVR 4G GPS DVR Vehicle For Bus Support ADAS DMS BSD With 4G 5G Car Black Box Video Recorder For School Bus

4G Client Platform
