BSD Camera With Built-in Algorithm Description

HD 1080p BSD Camera With Built-in Algorithm Pedestrian Vehicle Detection with Audible Alarm

The BSD (Blind Spot Detection) Camera with Built-in Algorithm is a cutting-edge vision system designed to revolutionize safety and operational efficiency in automotive, industrial, and smart infrastructure applications. Combining high-resolution imaging with advanced embedded AI, this camera delivers real-time object detection, collision avoidance, and environmental awareness—all processed locally for zero latency and maximum reliability.

BSD Camera With Built-in Algorithm Key Features

1.Integrated AI Processor

• Onboard neural network accelerator enables real-time analysis of video streams (up to 60 FPS) for instant decision-making.
• Pre-trained algorithms for blind spot monitoring, pedestrian detection, vehicle tracking, and obstacle recognition.

2.High-Performance Imaging

• 1080p/4K resolution with HDR support for crisp visuals in low-light, glare, or backlit conditions.
• Ultra-wide 150° field of view (FOV) minimizes blind zones.

3.All-Weather Durability

• IP69K-rated housing withstands extreme temperatures (-30°C to +85°C), dust, and water immersion.
• Anti-vibration design for heavy-duty vehicles or machinery.

4.Plug-and-Play Flexibility

• Compatible with CAN/LIN/Ethernet interfaces for seamless integration into existing ADAS or IoT platforms.
• Configurable via mobile app or PC software; supports OTA (Over-the-Air) updates.

5.Data Privacy & Security

• Edge computing ensures sensitive data is processed locally, eliminating cloud dependency.
• AES-256 encryption for secure communication.​

BSD Camera With Built-in Algorithm Main Specifications:

BSD Camera With Built-in Algorithm Applications

Automotive: Blind spot detection for trucks/buses, lane-change assistance, cyclist alerts.

Industrial: AGV (Automated Guided Vehicle) navigation, warehouse safety zones.

Smart Cities: Intersection monitoring, traffic flow analysis.

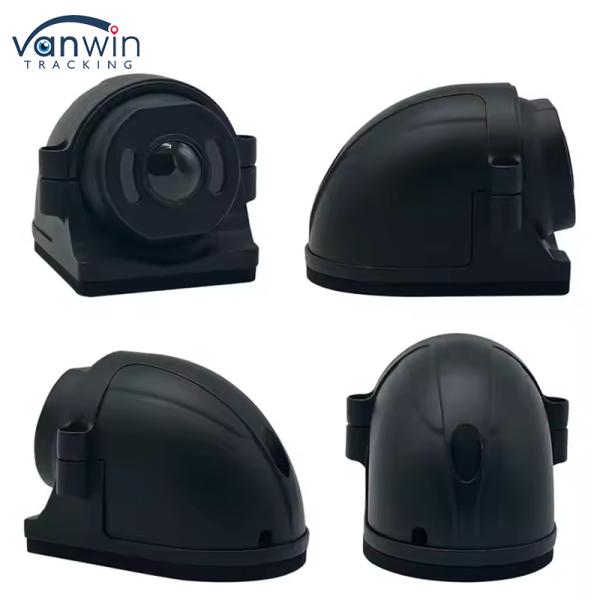

BSD Camera With Built-in Algorithm Product Photos

Why Choose Our BSD Camera?

Accuracy: 99.5% detection rate (tested under ISO 17387 standards).

Cost-Effective: Eliminates external servers/GPUs with onboard processing.

Scalable: Add custom algorithms (e.g., license plate recognition, gesture control).

FAQ:BSD Camera With Built-in Algorithm

1. Product Functionality
Q1: What distinguishes this BSD Camera from traditional cameras?
A: Unlike standard cameras, this device integrates an AI processor (NPU) directly on-board, enabling real-time object detection (e.g., vehicles, pedestrians) and blind spot analysis without relying on external servers or cloud computing.

Q2: Can it operate in extreme weather conditions?
A: Yes. With an IP69K rating and a temperature range of -30°C to +85°C, it performs reliably in heavy rain, snow, dust, and high-heat environments.

Q3: Does it require internet connectivity?
A: No. All processing is done locally via edge computing, ensuring zero latency and data privacy. Internet is only needed for optional OTA updates or cloud backups.

2. Installation & Compatibility
Q4: What systems is the camera compatible with?
A: It supports CAN, LIN, and Ethernet interfaces, making it compatible with most ADAS platforms, IoT gateways, and industrial control systems.

Q5: Is specialized training required for installation?
A: No. The plug-and-play design and included SDK/API simplify integration. Basic automotive/IT expertise is sufficient.

Q6: Can I mount it on non-automotive equipment (e.g., AGVs, drones)?
A: Absolutely. The anti-vibration housing (MIL-STD-810G) suits heavy machinery, AGVs, drones, and smart city infrastructure.

3. Algorithms & Performance
Q7: What pre-installed algorithms are included?
A: Default algorithms cover blind spot detection, pedestrian/vehicle tracking, obstacle recognition, and traffic flow analysis.

Q8: Can I add custom algorithms (e.g., license plate recognition)?
A: Yes. The open SDK/API allows integration of third-party or custom AI models. Training support is available upon request.

Q9: What is the detection accuracy?
A: Lab-tested at 99.5% under ISO 17387 standards. Real-world performance may vary slightly based on environmental factors.

4. Security & Maintenance
Q10: How is data privacy ensured?
A: Edge processing keeps data on-device, and AES-256 encryption secures communication. No raw video is stored unless configured.

Q11: How are firmware updates handled?
A: Updates are pushed via OTA (Over-the-Air) or manually through the PC software. Release notes and backward compatibility are guaranteed.

Q12: What maintenance is required?
A: The camera is designed for zero maintenance. Periodically clean the lens and check wiring connections for optimal performance.

5. Purchasing & Support
Q13: What’s included in the package?
A: The camera unit, mounting bracket, harness kit, SDK documentation, and a 2-year warranty.

Q14: Do you offer volume discounts for OEM?
A: Yes. Contact our sales team for customized pricing based on order volume and integration requirements.

Q15: How do I access technical support?
A: 24/7 support is available via email, phone, or a dedicated portal. Remote diagnostics can be performed with user consent.
