Specifications
Brand Name :
Vanwin Tracking
Model Number :
VW-88
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen,China
MOQ :
5 pcs
Price :
negotiated
Payment Terms :
T/T or western Union or Paypal
Supply Ability :
50,000pcs per month;
Delivery Time :
2-3 days for samples,15-30 days for large orders
Packaging Details :
Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Function :
Night Vision, Waterproof, Dustproof, Shockproof
IR Lens :
6 PCS
Angle :
wide Angle 130°
Applicable Model :
Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester, Corn Machine
Sensor :
CMOS
Signal system :
PAL/NTSC
Pixel :
1920(H)×1080P(V)/1280(H)×720(V)/CVBS
Lens :
2.7mm
Power Consumption :
DC 5-25V
Waterproof :
IP68
Warranty :
12 months
Customized support :
Online technical support, OEM, ODM
Description

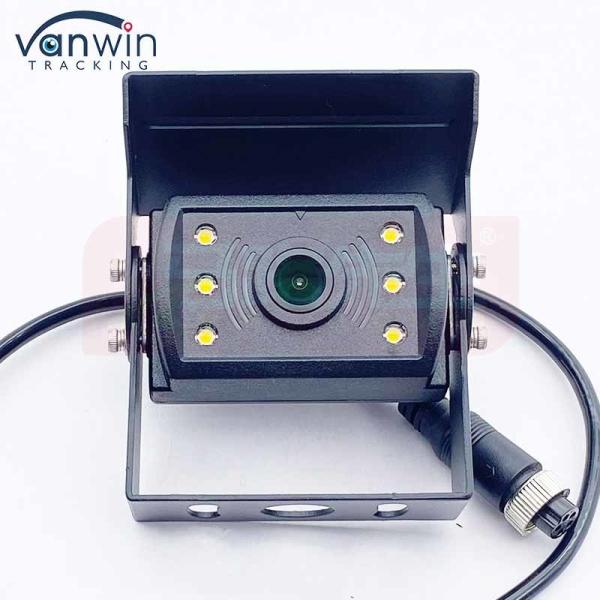

7int HD IP68 Waterproof AHD Radar Reverse Side Rear View Vehicle Camera For Bus Truck

Product Description

Experience unparalleled visibility in low-light conditions with our advanced Night Vision Camera. Designed for security, wildlife observation, or nighttime adventures, this camera provides high-definition imaging and exceptional clarity, even in complete darkness.

Key Features:

  • Infrared Technology: Equipped with state-of-the-art infrared sensors, our night vision camera captures clear images in total darkness without any visible light.
  • High Definition: Enjoy stunning 1080p HD video resolution, ensuring that every detail is captured vividly.
  • Wide Viewing Angle: With a 130-degree field of view, monitor larger areas without the need for multiple cameras.
  • Durable Design: Built to withstand harsh weather conditions, this camera is ideal for outdoor use, featuring an IP67 waterproof rating.
  • Motion Detection: The built-in motion sensor alerts you to any activity, ensuring you never miss an important moment.
  • Easy Setup: Quick installation with user-friendly mobile app integration for remote viewing and control from your smartphone or tablet.

Specifications:

Feature
Bus Track VAN Cameras
Image Type
1/3" 1/4 Color CCD/CMOS
Night vision
With IR lamp
LED
6pcs
TV System
NTSC/PAL
Lens Angle (Deg.)
130 degree
IP Rating
IP68
Connector
4P connector or RCA connector for selection
Effective Pixels
1920(H)×1080P(V)/1280(H)×720(V)/CVBS
Horizontal Resolution
420TVL/600TVL
B.L.C
Back light Compensation (Auto)
White Balance
Auto White Balance (Auto)
Minimum Illumination
0Lux (LED ON)
S/N Ratio
≥48dB
Electronic Shutter
1/60~1/100,000 Sec
Power consumption
<3W
Built-in Lens
f:1.8mm
Power Consumption
DC 5-20V
Audio
without
Operation Temperature
-30℃~+70℃.RH95% Max
Storage Temperature
-40℃~+80℃.RH95% Max
Certificate
FCC,CE,ISO9001,IATF16949, RoHs
Weight/Package
4Pin connection diagram:0.3KG

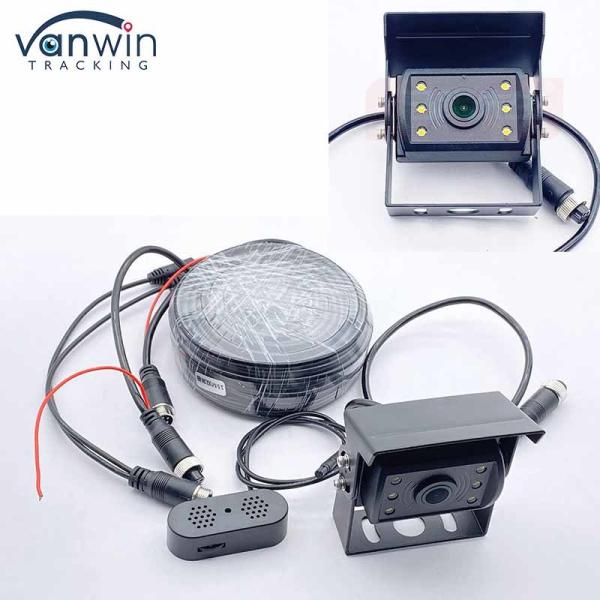

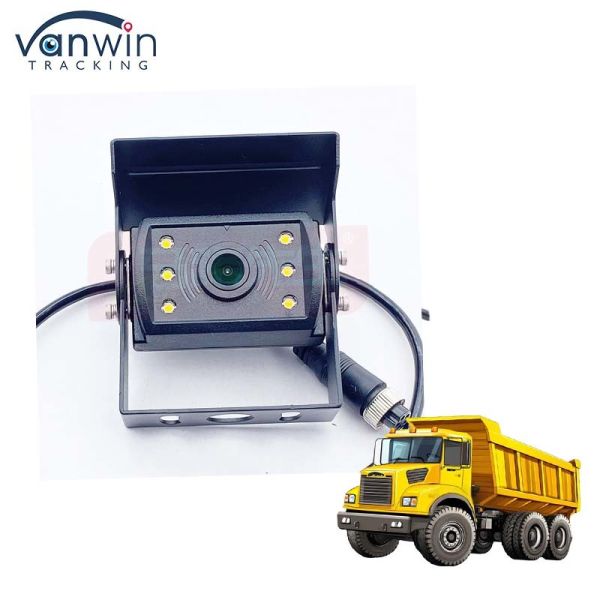

7 inch HD IP68 Waterproof AHD Radar Reverse Side Rear View Vehicle Camera For Bus Truck7 inch HD IP68 Waterproof AHD Radar Reverse Side Rear View Vehicle Camera For Bus Truck

7 inch HD IP68 Waterproof AHD Radar Reverse Side Rear View Vehicle Camera For Bus Truck

Connetor Available for Option

  1. 4Pin Aviation connector
  2. DC+RCA connector
  3. CCTV security BNC connector

FAQ

How does night vision technology work?

Night vision cameras typically use infrared light, which is invisible to the naked eye. The camera detects this infrared light and converts it into a visible image. Some models may also use digital enhancement techniques to improve image quality.

What is the best way to mount a night vision camera?

Mounting options vary by model, but common methods include wall mounts, pole mounts, or using a tripod. Ensure the camera is positioned for optimal coverage of the area you want to monitor.

Can I use a night vision camera during the day?

Yes, most night vision cameras can be used during the day. However, it’s important to check the specifications, as some models may require a filter to prevent damage from bright sunlight.

Are night vision cameras waterproof?

Many night vision cameras are designed to be weather-resistant or waterproof. Always check the product specifications for details on its IP rating to ensure it meets your needs for outdoor use.

Do night vision cameras record audio?

Not all night vision cameras have audio recording capabilities. If this feature is important to you, make sure to look for models specifically designed with built-in microphones.

How long does the battery last?

Battery life varies based on usage, camera features, and specific models. On average, night vision cameras can last anywhere from several hours to several weeks on a single charge, depending on whether they are in standby or active recording mode.
