8CH AI Mobile DVR With ADAS DMS BSD Description

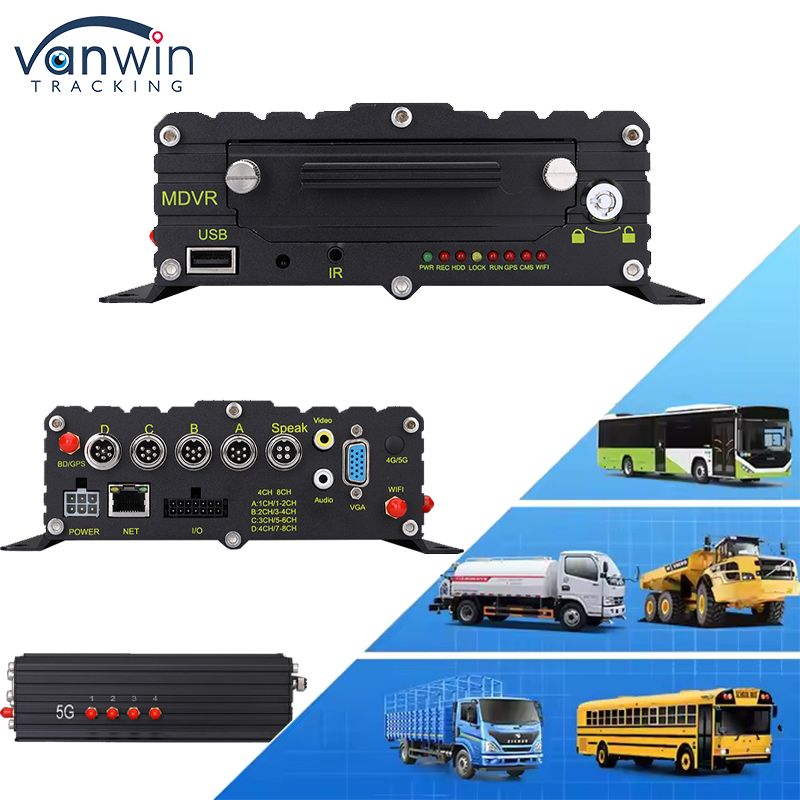

8CH 1080p 4G AI Mobile DVR With ADAS DMS BSD Camera System GPS Mobile DVR For Truck

The 8CH AI Mobile DVR is a cutting-edge in-vehicle surveillance and safety system designed to provide comprehensive monitoring and advanced driver assistance features. Equipped with Artificial Intelligence (AI), this device integrates Advanced Driver Assistance Systems (ADAS), Driver Monitoring System (DMS), and Blind Spot Detection (BSD) to enhance road safety and driving efficiency.

8CH AI Mobile DVR Key Features:

1.8-Channel Recording:

• Supports up to 8 cameras, providing 360-degree coverage around the vehicle. This ensures complete monitoring of the vehicle's surroundings, ideal for fleet management, public transportation, or personal use.

2.AI-Powered ADAS (Advanced Driver Assistance System):

• Forward Collision Warning (FCW): Alerts the driver of potential frontal collisions.
• Lane Departure Warning (LDW): Notifies the driver if the vehicle unintentionally drifts out of its lane.
• Pedestrian Detection: Identifies pedestrians near the vehicle to prevent accidents.
• Speed Limit Recognition: Detects and displays speed limit signs to help drivers comply with traffic regulations.​

3.Driver Monitoring System (DMS):

• Fatigue Detection: Monitors the driver's facial expressions and eye movements to detect signs of drowsiness or fatigue.
• Distraction Alert: Alerts the driver if they are not paying attention to the road.
• Smoking/Calling Detection: Identifies unsafe behaviors like smoking or using a phone while driving.

4.Blind Spot Detection (BSD):

• Monitors the vehicle's blind spots and alerts the driver to potential hazards when changing lanes or reversing.
• Enhances safety by reducing the risk of collisions with vehicles or objects in hard-to-see areas.

5.High-Resolution Recording:

• Supports high-definition video recording (e.g., 1080p or higher) for clear and detailed footage.
• Night vision capabilities ensure reliable performance in low-light conditions.

6.GPS Tracking and Real-Time Monitoring:

• Built-in GPS for real-time location tracking and route history.
• Live streaming via 4G/5G networks for remote monitoring and management.

7.G-Sensor and Event Recording:

• Automatically saves footage in case of sudden impacts, collisions, or harsh braking.
• Protects critical evidence for insurance claims or legal purposes.

8.User-Friendly Interface:

• Easy-to-use mobile app and software for seamless configuration, playback, and data management.
• Compatible with smartphones, tablets, and PCs.

9.Wide Compatibility:

• Suitable for various vehicle types, including trucks, buses, taxis, and private cars.
• Supports multiple storage options (e.g., SD cards, external hard drives).

10.Durability and Reliability:

• Designed to withstand harsh environments, including extreme temperatures, vibrations, and dust.
• Built-in surge protection and anti-interference technology for stable performance.

​

Applications:

• Fleet Management: Monitor driver behavior, ensure compliance, and reduce accidents.
• Public Transportation: Enhance passenger safety and provide evidence in case of incidents.
• Personal Vehicles: Improve driving safety and protect against fraudulent claims.

​8-channel AI MDVR Main Specifications:

8CH AI Mobile DVR scenario application:

8CH AI Mobile DVR Photos

Installation Guide for 8CH AI Mobile DVR with ADAS, DMS, and BSD

Installing the 8CH AI Mobile DVR system requires careful planning and execution to ensure optimal performance. Below is a step-by-step guide to help you install the device correctly:

Tools and Materials Needed:

• Screwdrivers (Phillips and flathead)
• Drill and drill bits
• Cable ties or clips
• Electrical tape
• Power cables and connectors (included in the package)
• Mounting brackets (included)
• SD card or external storage (if not included)

Step-by-Step Installation:
1. Plan the Camera Positions

• Identify the locations for the 8 cameras to ensure full coverage (front, rear, sides, and blind spots).
• Common positions:
• Front Camera: Near the rearview mirror or windshield.
• Rear Camera: Above the license plate or rear windshield.
• Side Cameras: On the side mirrors or doors.
• Blind Spot Cameras: Near the rear bumper or fenders.

2. Mount the Cameras

• Use the provided mounting brackets to secure the cameras in the chosen locations.
• Ensure the cameras are firmly attached and angled correctly for optimal coverage.
• For external cameras, drill holes if necessary and seal them to prevent water ingress.

3. Install the Main DVR Unit

• Choose a secure and discreet location for the DVR unit, such as under the dashboard or in the glove compartment.
• Ensure the unit is well-ventilated and protected from excessive heat or moisture.
• Secure the DVR unit using screws or adhesive mounts.

4. Connect the Cameras to the DVR

• Route the camera cables through the vehicle’s interior (e.g., under the carpet, along the headliner, or through cable channels).
• Use cable ties or clips to secure the cables and avoid loose wiring.
• Connect each camera to the corresponding port on the DVR unit.

5. Power the DVR System

• Connect the DVR unit to the vehicle’s power supply using the provided power cable.
• Typically, the red wire connects to the ignition (ACC) for automatic power-on, and the yellow wire connects to the battery for continuous power.
• Use a fuse tap to ensure safe and stable power supply.

6. Install the GPS Antenna

• Mount the GPS antenna on the dashboard or roof for clear satellite signal reception.
• Route the antenna cable to the DVR unit and connect it to the designated port.

7. Set Up the ADAS, DMS, and BSD Features

• ADAS Calibration: Follow the manufacturer’s instructions to calibrate the ADAS system. This may involve driving the vehicle at a specific speed or aligning the front camera with the road.
• DMS Calibration: Adjust the driver-facing camera to ensure it captures the driver’s face clearly.
• BSD Calibration: Position the blind spot cameras to cover the vehicle’s blind spots effectively.

8. Configure the System

• Insert an SD card or connect external storage to the DVR unit.
• Power on the system and access the settings via the mobile app or software.
• Configure recording settings, motion detection, and alerts for ADAS, DMS, and BSD features.

9. Test the System

• Verify that all cameras are functioning and recording properly.
• Test the ADAS, DMS, and BSD features to ensure they provide accurate alerts and warnings.
• Check the GPS tracking and live streaming functionality (if applicable).

Tips for Optimal Performance:

• Ensure all cables are properly insulated and protected from wear and tear.
• Regularly clean the camera lenses to maintain clear video quality.
• Update the DVR firmware periodically to access the latest features and improvements.

​The 8CH AI Mobile DVR with ADAS, DMS, and BSD is an all-in-one solution for modern vehicle safety and surveillance, combining advanced AI technology with robust recording capabilities to deliver peace of mind on the road.
