Waterproof 1080P DVR AHD 12.3 Inch Front Rear Blind Area Car Monitor with Rear View Side View Camera
Waterproof 1080P DVR AHD 12.3 Inch Front Rear Blind Area Car Monitor with Rear View Side View Camera
Specifications
Brand Name :
Vanwin Tracking
Model Number :
VW-1230LS
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen,China
MOQ :
5 pcs
Price :
negotiated
Payment Terms :
T/T or western Union or Paypal
Supply Ability :
50,000pcs per month;
Delivery Time :
2-3 days for samples,15-30 days for large orders
Packaging Details :
Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Type :
12.3 Inch Truck Bus E-Mirror Side View Blind Spot Dual Lens Camera System
Warranty :
18 Months
View angle :
H=150°,V=90°
Waterproof :
IP 68
Video inputs :
2 CH video input and 2 splits display
Feature :
Blindspot video display
Application :
Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester, Corn Machine
Resolution :
1080P
Power supply :
DC12V±10%
Power consumption :
≤1.5W
Description

12.3 Inch Front Rear Blind Area Car Monitor with Rear View Side View Camera

Key Features:

1. Support AHD 1080P/960P/720P and 960H/ CVBS mixed input signal sources; Compatible with PAL/NTSC system input;

2. Each input video signal can be independently set brightness, contrast, saturation, chroma and sharpness and mirror, flip, rotation and other functions; 3. Video output, you can set the zoom display of the upper, lower, left and right margins, the display screen can be full display, the picture is not cut and deleted;

4. Each image can be set independently to enlarge and cut the image, which can cut the excess image around;

5. Support time-lapse video of stopping and extinguishing (24H parking monitoring function);

6. Maximum 512G memory card, ultra-long panoramic image memory, convenient for users to consult at any time;

7. Independent two-way display function, automatic switch display screen;

8. Panoramic monitoring recording image controllable playback function for instant viewing;

9. Users of this system can upgrade the latest program through the video card;

12.3 inch Mirror Specification:

Item 12.3inch Electronic Rearview Mirror
Chip sensor Hiss HI3520 (V300)
System language Chinese/English (others can be customized)
Video compression format H.264 Compression
Brightness 850cd/m2
Contrast 800:1
OSD Support time, date, channel characters, partition frame, vehicle information and other image overlay

Video and recordImage system

 Video input 2video AHD1080P/960P/720P ,960H/CVBS mixed input； support PAL and NTSC system auto display
Display model Multi-picture mode combination display, support manual/voltage trigger full screen display function
Resolution 1920*1080 ,1280*720 ,1024*768
Recording resolution 1920*1080
Video Support 1080P/960P/720P/CVBS
Video recording Automatic power-on video recording
Trigger input 2 video I/O trigger, support 12-24V, Power triggered full screen display

Storage

SD card

Support 2-512G SD card,loop recording
Upgrade method Support SD card recording upgrade
Recording Real-time storage, no frame loss, no missing seconds

Video playback

 Video search Can choose the latest three days, the latest week, the latest two weeks, the latest month, all, etc.
playback 2 Video synchronous playback supports pause, fast forward, and fast rewind
Support 2, 4, 8 times fast forward or backward
Power supply and consmption

Adaptive wide power input, with low voltage, overvoltage, reverse short-circuit protection functions;
Power input DC:+15V ~ +35V
Power output +11.5V/3A

Dual Len Camera Specificaiton:

Item Dual Lens Camera
Chip Sensor SONY IMX307
Image sensor 1/2.8 "
Pixel Size 2.9um x 2.9um
Pixel 1945*1109
Min.Lux 0.0001Lux(@F1.2,AGC ON)
TV system NTSC standard/Pal Optional
Lens 150°(H) for front view /90°(H) for rear view
Waterproof IP68
ADC resolution 10 bit ADC
Max Frame rate 1080P@25fps / 1080P@30fps
Video output 1920(h)*1080(v)
Current output DC:12V ±10%
Operating temperature -30~70℃
Stable Image temperature -40~80℃
Input frequency 74.25/37.125MHz
Size 109*74*46cm

Night Vision Car Dome Camera User Precautions

Installation:

  • Ensure proper installation according to the manufacturer’s guidelines to avoid damage and ensure optimal performance.
  • Mount the camera securely to prevent it from falling or shifting during driving.

Power Supply:

  • Use only the recommended power supply to avoid electrical issues.
  • Regularly check the power connections to ensure they are secure and free from corrosion.

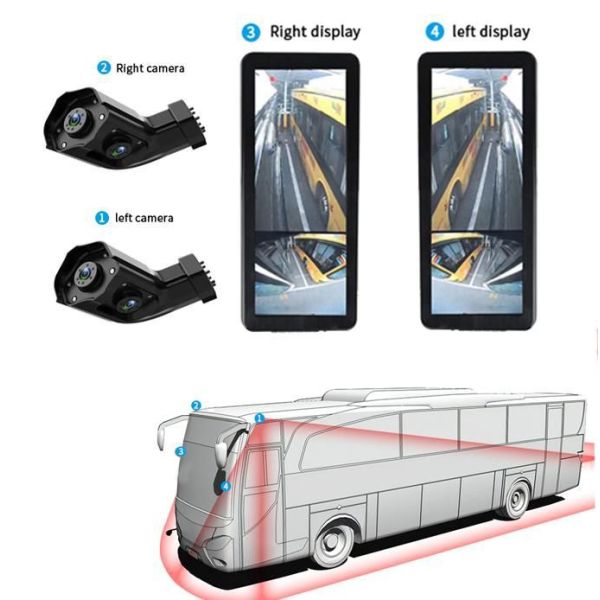

Product Pictures
