H.265 4CH Full HD Mobile DVR Description
H.265 4CH Full HD Mobile DVR Live Stream Blackbox Recorder 4G Wifi GPS Vehicle CCTV
The H.265 4CH Full HD Mobile DVR is designed for reliable video surveillance in vehicles. This advanced digital video recorder supports high-definition recording, ensuring clear and detailed footage, making it ideal for transportation and fleet management.
H.265 4CH Full HD Mobile DVR Key Features
-
H.265 Video Compression: Utilizes H.265 technology for efficient video compression, reducing storage needs while maintaining high video quality.
-
4-Channel Recording: Supports simultaneous recording from four channels, allowing comprehensive coverage of the vehicle's surroundings.
-
Full HD Resolution: Captures video in Full HD (1080p) resolution, delivering sharp and clear images for enhanced security.
-
Mobile Optimization: Specifically designed for mobile applications, ensuring durability and reliability in various environmental conditions.
-
Built-in GPS: Equipped with GPS tracking capabilities to log the vehicle's location and speed, providing additional context to recorded footage.
-
Multiple Storage Options: Supports both HDD and SSD storage solutions, offering flexibility in data storage management.
-
Remote Access: Allows users to access live feeds and recorded footage remotely via a secure internet connection, enabling real-time monitoring.
-
User-Friendly Interface: Features an intuitive interface for easy setup and operation, suitable for users of all skill levels.
-
Robust Build Quality: Engineered to withstand vibrations and shocks associated with vehicle movement, ensuring long-lasting performance.
4CH 4G Live Video Full HD Mobile DVR Main Specifications
Item | Device parameter | Performance |
System | Main processor | Hi3520DV400 |
Operating system | Embedded Linux operating system |
Operating language | Chinese/English/Russian |
Operating interface | Graphical menu operation interface, support mouse operation |
Password security | two-level management of user password and administrator password |
Audio & Video | Video standard | PAL/NTSC |
Video compression | H.264/H.265 |
Image resolution | 1080P/720P |
Playback quality | 1080P/720P |
Combination | various ways |
Decoding capability | 4ch 1080P real time |
Video quality | 1 to 4 levels can be configured |
Screen display | support 1, 2, 3, 4 screen display |
Audio Compression | Not Supported |
Recording method | video recording |
Recording & Playback | Recording mode | manual, alarm |
Video bit rate | 4-level picture quality optional |
Audio bit rate | 8KB/s |
Storage media | Hard Disk+SD card |
Video query | Search by channel and video type |
Local playback | one-way, by time |
Firmware upgrading | Upgrading mode | manual upgrade, remote upgrade |
Upgrading method | USB interface, network |
Interface | Video input | 4-way 6-pin aviation header interface |
Video output | 1 channel VGA video output, 1 channel aviation head video output |
Alarm input | 4 trigger alarm inputs (four configurable positive/negative triggers) |
Disk interface | 2.5-inch hard drive, up to 2TB |
SD card | 1 SDXC high-speed card (maximum support 512G |
USB interface | 1 USB 2.0 (support full mouse operation, USB delay self-test) |
Ignition input | 1 ACC signal |
Serial port | 1 channel 232 |
LED Indication | PWR/REC/SD/GPS/VLSS/ALM |
Disk lock | 1 |
GPS | Supports antenna insertion/removal/short circuit detection |
3G/4G | Support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE |
Others | Power input | 8~36V DC |
Power output | 12V 2A |
Power consumption | Standby 3mA Maximum consumption 30W @12V 2.5A @24V 1.25A |
Working temperature | -20 - 70℃ |
Storage | 1080P 1.9G/hour/channel 720P 0.8G/hour/channel |
Dimension | 166mm*155mm*137mm |
4CH GPS HDD Mobile DVR Applications
- Public Transportation: Enhances safety and accountability in buses and taxis.
- Fleet Management: Monitors driver behavior and vehicle performance for logistics companies.
- Emergency Services: Provides critical video evidence for police and ambulance services.

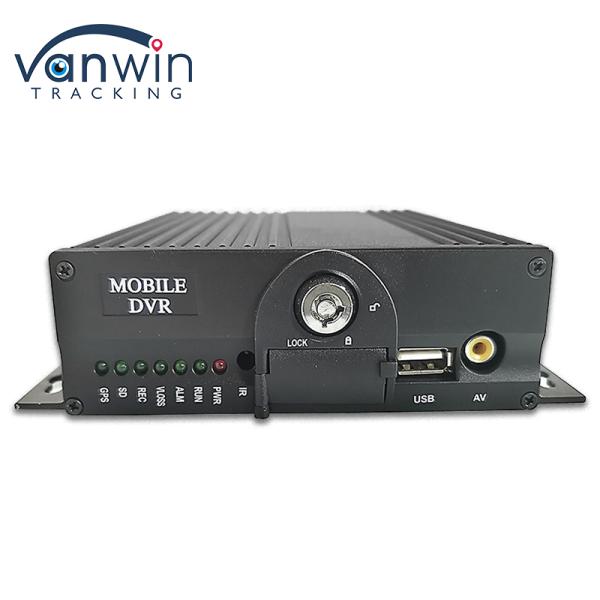

4CH Mobile DVR Product Photos

Advantages of H.265 4CH Full HD Mobile DVR
1.High Compression Efficiency:
- H.265 Technology: The advanced H.265 compression algorithm significantly reduces video file sizes while maintaining high quality, optimizing storage and bandwidth usage.
2.Superior Video Quality:
- Full HD Recording: Captures video at 1080p resolution, providing clear and detailed images that are essential for accurate surveillance and incident documentation.
3.Multi-Channel Support:
- Four Channels: Ability to record from four cameras simultaneously ensures comprehensive coverage of vehicle surroundings, enhancing security.
4.Durability for Mobile Use:
- Robust Construction: Designed to withstand vibrations and shocks typical in vehicles, ensuring reliability in various driving conditions.
5.Integrated GPS Tracking:
- Location and Speed Logging: Built-in GPS functionality allows for real-time tracking of vehicle location and speed, adding another layer of security and accountability.
6.Remote Monitoring Capabilities:
- Access Anywhere: Users can view live feeds and recorded footage remotely via a secure connection, facilitating real-time decision-making and oversight.
7.User-Friendly Interface:
- Easy Setup and Operation: The intuitive interface allows for hassle-free installation and operation, suitable for users regardless of technical expertise.
8.Flexible Storage Options:
- HDD/SSD Compatibility: Supports a variety of storage solutions, enabling users to choose the best option based on their needs and budget.
9.Wide Application Range:
- Versatile Use Cases: Ideal for public transportation, fleet management, emergency services, and more, making it a versatile security solution.
10.Enhanced Safety and Accountability:
- Documentation of Events: Provides valuable evidence for incidents, improving safety and accountability for drivers and passengers alike.
