Specifications
Brand Name :
Vanwin Tracking
Model Number :
VW-112
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen, China
MOQ :
5pcs
Price :
negotiated
Payment Terms :
Western Union, T/T, Paypal
Supply Ability :
5,000pcs per month ,
Delivery Time :
2-3 days for samples, 5-10 days for large orders
Packaging Details :
Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Type :
vehicle dome camera
Power :
12V- 24V
Resolution :
CMOS/CCD 600TVL, 720P/960P/1080P/IP
Connector :
POE, 4PIN, BNC+DC, 6PIN
TV system :
PAL or NTSC
Sensor :
CMOS / CCD
Audio Built-in :
Support
Color :
white
Lens :
2.8mm
Lens Angle :
90-120 horizontal degree
Night Vision :
Yes
Warranty :
12 Months
Description

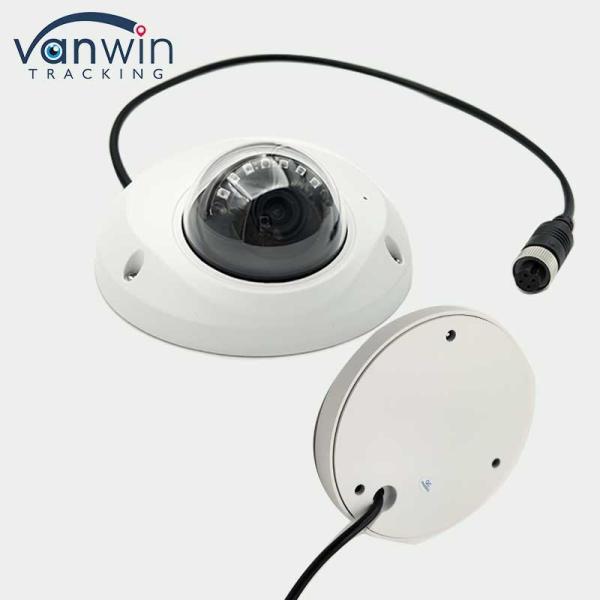

720P/960P/1280P Camera 120 Wide Angle HD Metal White Dome Camera For Bus, Truck

Metal White Dome Camera Advantages

  • High durability: The metal housing offers excellent resistance to impacts, scratches, and corrosion, ensuring the camera can withstand the harsh conditions of vehicle use and has a long service life.
  • Good heat dissipation: Metal has good thermal conductivity, which helps to dissipate heat generated by the camera during operation, maintaining stable performance and preventing overheating.
  • Enhanced signal shielding: The metal shell can provide better shielding for the camera's internal electronic components, reducing the interference of external electromagnetic signals and ensuring the stability and clarity of the video signal.

Metal White Dome Camera Application Scenarios

  • Commercial vehicles: Commonly used in trucks, buses, and other commercial vehicles to monitor the driving environment, record driving conditions, and assist in parking and reversing, which helps improve driving safety and operational efficiency.
  • Off - road vehicles: Due to their high durability and reliability, they are suitable for off - road vehicles that often travel in harsh environments. They can withstand vibrations, bumps, and dust, providing clear images for drivers to navigate.
  • High - end passenger cars: Installed in high - end passenger cars to enhance the vehicle's safety and intelligent features, such as providing 360 - degree panoramic views for parking assistance and monitoring the surrounding environment during driving.

Metal White Dome Camera Technical Specifications

Camera Main processor FH8852V200
Image Sensor 1/2.9″ CMOS GC2063
Horizontal Resolution 3.0MP/2.0MP(default)
Minimum Illumination Color:0.01Lux/F1.2
S/N ≥69dB(AGC OFF)
Day and night switch EXT(default),Support IR CUT switching
Electronic Shutter 1/25S~1/10000S
IR LEDS Quantity 12pcs LEDs
IR distance ≤8 meters
Lens Lens focal length 2.8mm 2.8mm
Lens mount M12*P0.5
Video Processing Video compression standard H.264/H.265
Video resolution Main stream: 2304x1296,1920×1080,1280×720;Sub stream:800x448 ,704x576,640x360,352x288
Video frame rate 300W(30fps)
Audio Audio G.711U,G.711A
Audio input Built-in Mic
Network Function Network Protocol Support: P2P,CGI,HTTP,TCP/IP,IPv4,RTSP,UDP,NTP,DHCP, DNS,IP Filter
Access Protocol Support ONVIF Protocol
Interface Communication interface 10/100M adaptable Ethernet interface, RJ45
General Specification Waterproof grade IP65
Operating Temperature ,-20°C~+70°C
Power Supply DC12V±10%

Metal White Dome Camera Photoes

720P/960P/1280P Camera 120 Wide Angle HD Metal White Dome Camera For Bus, Truck

We are different from other suppliers.Welcome you to test and compare.

Our advantages


1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.

2. Careful production Process:

Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing


3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been cooperating with us all the time .


4.We explore some wide angle or special cameras to meet your requirements that others don't have.

FAQ

1.How does night vision technology work?
Night vision cameras typically use infrared light, which is invisible to the naked eye. The camera detects this infrared light and converts it into a visible image. Some models may also use digital enhancement techniques to improve image quality.


2.Can I use a night vision camera during the day?
Yes, most night vision cameras can be used during the day. However, it’s important to check the specifications, as some models may require a filter to prevent damage from bright sunlight.


3.What is the range of a night vision camera?
The range can vary significantly depending on the model. Most consumer-grade night vision cameras have a range of 30 to 100 feet in complete darkness, while advanced models can reach several hundred feet.


4.Are night vision cameras waterproof?
Many night vision cameras are designed to be weather-resistant or waterproof. Always check the product specifications for details on its IP rating to ensure it meets your needs for outdoor use.
