Specifications
Brand Name :
Vanwin
Model Number :
VW9014NGS-5G
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen, China
MOQ :
1 pcs
Price :
negotiated
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
50,000 pcs per month
Delivery Time :
2-3 days for samples,15-30 days for bulk orders
Packaging Details :
Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Type :
4CH HDD DVR 5G GPS
Resolution :
1080P 720P (optional)
Platform :
CMSV6
GPS :
Support
Warranty :
1 Year
Working Temperature :
-20℃~70℃
ADAS/BSD/DMS :
support
OEM/ODM :
Support
Item Type :
HDD DVR
OSD Language :
Chinese (Simplified),Chinese (Traditional),English,KOREAN,Russian
Description

4CH HDD DVR 4G GPS ADAS DMS 1080P HD Support OEM/ODM MDVR Video System For Car Truck Bus MDVR Car Black Box

4CH 5G Mobile DVR with GPS Tracking Main Features

Next-Gen Fleet Monitoring

4CH 1080P HD Recording + H.265+ Storage Optimization

5G Ultra-Fast Live Streaming & Real-Time GPS Tracking

AI-Powered (ADAS/DMS) for Collision & Fatigue Alerts

-30°C~70°C Operation & IP67 Waterproof

Proven Performance

✔️ 40% Safer - Top Choice for EU/LATAM Fleets

✔️ OEM/ODM Ready - Customized for Your Brand

Upgrade Your Fleet Now!

4CH 5G Mobile DVR with GPS Product Specifications:

  • Specification
    Item specification
    OS Linux
    Language Chinese/English/Russian/Others (can be customized)
    Video Compression H.265 H.264
    OSD Character overlay function,Overlays information such as date time and vehicle ID
    GUI Graphical User Interface System parameters can be set through an external display screen and remote control operation
    Video Record System Video Input 4CH:1080P,720P,D1
    8CH:1080P,720P,D1
    Video Output 1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω, supports 1 full screen and 2/4 split channels
    Preview support Single channel, 2/4 screen splicing preview, support manual/event triggered full screen display function
    Resolution Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames per channel.
    Video Quality 0-8 levels video recording available, 0 is the best level, 8 is the lowest level.
    Video Standard PAL: 100 frames per second, CCIR625 line, 50 fields
    NTSC: 120 frames per second, CCIR525 line, 60 fields;
    CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional;
    HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional;
    D1: 800Kbps ~ 3Mbps, multi levels video quality optional;
    720P : 1Mbps~2Mbps, multi levels video quality optional;
    1080P: 1Mbps~4Mbps, multi levels video quality optional;
    Record Mode Default automatic recording, supporting ignition recording, manual recording, alarm recording, etc
    Audio Audio Input 4 or 8 channel aviation Plug
    Audio Output 1channel
    Compression G.711A compression, 8KB/s speed
    Alarm Input 4CH IO Alarm Input, pulse speed input,support alarm linkage function
    Alarm Output 2-channel switch output, linked with sound and light alarm, oil and power outage, etc
    Communication Interface 1CH RS232,Expandable POS machine, fuel sensor, LED advertising screen, OBD, etc
    1CH 485 interface, can connect PTZ,etc.
    Wireless transfer Built-in 4G network wireless transmission, TD-LTE, FDD-LTE
    Position Support built-in GPS/BD module, can report to the CMSV7 standard platform
    Storage Storage SD card supports up to 512GB, hard drive supports 2TB; SD card can be used as a mirror recording to ensure data security.IPC MDVR max to 4TB.
    Update Mode Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade
    Storage Mode Exclusive bare disk storage method: Currently it is a relatively advanced storage method in the industry
    USB Front USB interface, can use USB flash disk to upgrade and backup ; support USB mouse to backup video
    Video Playback Video Search Search video by Record Time/Record Mode etc
    Playback Supports a maximum of four channels simultaneous replays, including pause, fast forward, and fast rewind
    Support x 2,x4,x8,x16. fast forward or fast backward play
    Voltage &Power Consumption Power Management Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection;
    Support timed power on/off and delayed shutdown functions.
    Voltage Input DC:+12V ~ +36V
    Voltage Output +12V@2.5A,+5V@2A
    Power Consumption Normal Working <5W
    Working Environment Temperature -20℃ to +70℃
    Humidity 20% to 80%
    Safety Management Password Access Two level management of user password and administrator password
    others Size 20.5*21 *6.2cm or IPC MDVR 22.5CM (D)* 18.7CM(W)* 6.2CM(H)
    Net Weight 2.5 Kg

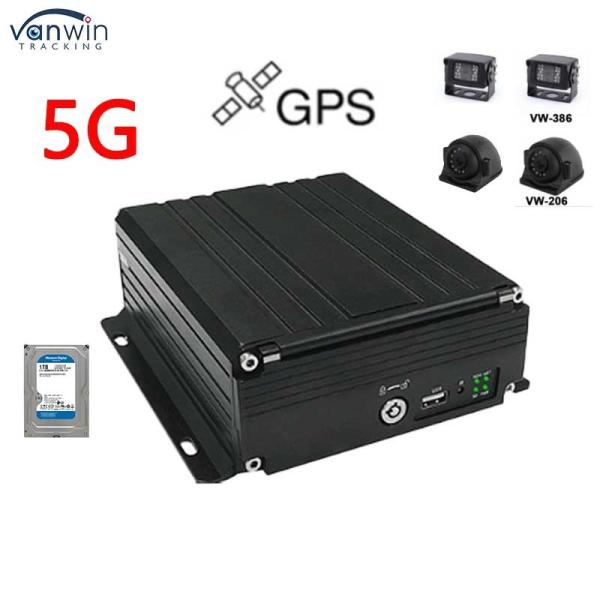

4CH HDD MDVR 5G GPS Tracker Product Pictures

4Channel HDD DVR 5G GPS Tracking 1080P HD Moblie DVR Video System Support OEM/ODM For Car Truck Bus MDVR Car Black Box

4CH HDD MDVR 5G GPS Tracker Application:

4Channel HDD DVR 5G GPS Tracking 1080P HD Moblie DVR Video System Support OEM/ODM For Car Truck Bus MDVR Car Black Box

Our Mission
Make drivers safe, make vehicles safe, make passengers safe, make thousands of families safe.Make the roads safer place by providing our drivers with the highest quality &most personalized safety solutions!
