EV-388 Vehicle Refrigeration System For Full Electric drive
EV-388 Vehicle Refrigeration System For Full Electric drive
EV-388 Vehicle Refrigeration System For Full Electric drive
EV-388 Vehicle Refrigeration System For Full Electric drive
EV-388 Vehicle Refrigeration System For Full Electric drive
EV-388 Vehicle Refrigeration System For Full Electric drive
Specifications
Brand Name :
Yinhuasheng/OEM
Model Number :
EV-388
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Model :
EV-388
Temperature Range :
-25°C To +25°C
Cooling Capacity(0℃) :
3010W
Cooling Capacity(-18℃) :
1710W
Application Box Volume :
≤12 m³
Outside Temperature :
30°C To 50 °C
Compressor Brand :
Highly
Compressor Mode :
PAG 68
Condenser :
Parallel Flow Condenser
Evaporator :
Inner grooved copper tube&aluminum Fin
Description

Powered by the vehicle battery, our EV-088 unit is specially designed for NEV full electric trucks.

Which is widely be used for reefer truck box size of 8m³.

Yinhuasheng units will be customer's preferential choice who wants to put together durability and reliability, with low operational cost and handling charges.

Standard Features:

1.Applicable for small and medium sized new energy vehicles.

2. High grade(IP67) water-proof and insulation design, AC-DC interlock and four in one design.

3. Ultra-slim fiberglass evaporator or Al-alloy evaporator, with big air flow.

4. Fully enclosed electric compressor: high efficiency, eco-friendly, not affected by vehicle speed.

5. The compressor is inbuilt inside the condenser unit, compact design.

6. Multi-functional and LCD controller, precise temperature control, fully display and easy operation, with fault codes and alarms.

7. None-interference between charging and unit running, saving charging time and extending the service life of battery.

8. HP and LP switch safety protection.

9. Standard AC220V standby for parking cooling.

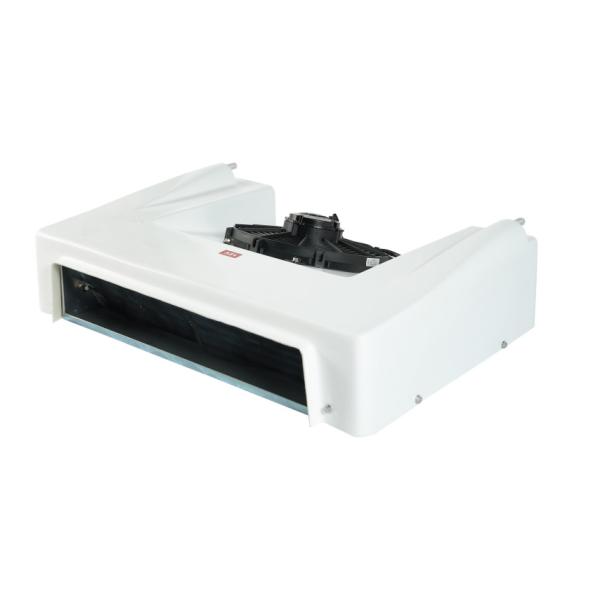

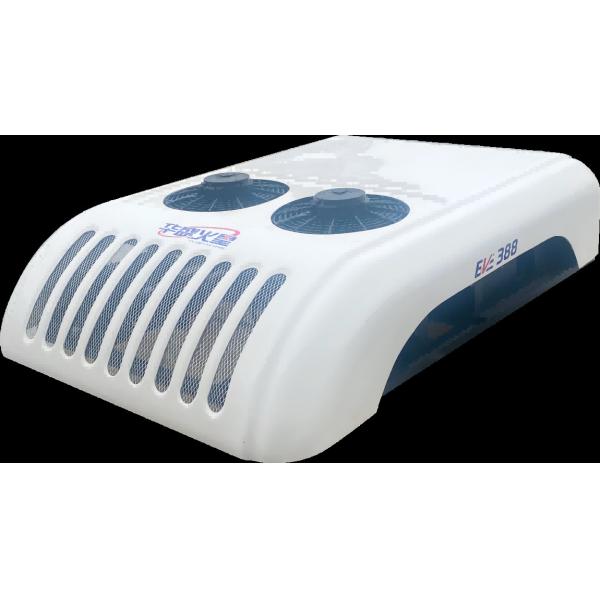

Product Pictures:

EV-388 Vehicle Refrigeration System For Full Electric drive

EV-388 Vehicle Refrigeration System For Full Electric drive

Technical paramet

Unit Model EV-388
Applicable Temperature(℃) -25℃ ~ +25℃
Box Volume (m³) ≤12m³

Cooling Capacity

(W)

 0℃ 3010 W
-18℃ 1710 W
Compressor Model DTH356
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Number of Fans 2 PCS

Condenser

 Material Parallel flow condenser
Number of Fans 2 PCS
High Voltage DC250V-DC450V/DC380V-DC750V
Low Voltage Power DC-DC
Control Voltage DC12V(9-16V)/DC24V(16-32V)
Refrigerant R404a
Refrigerant Charge 1.3 KG
Box Temperature Adjustment Electronic digital display
Safety Protect High and low pressure switch
Defrosting Hot gas defrost automatically
Weight/Dimensions Evaporator 17 KG
Condenser ＜58 KG
Evaporator 1000*580*210
Condenser 1150*850*280
Drive Model Full electric driven
