X-58 Vehicle Refrigeration System Truck Chiller, ≤14m³
X-58 Vehicle Refrigeration System Truck Chiller, ≤14m³
X-58 Vehicle Refrigeration System Truck Chiller, ≤14m³
X-58 Vehicle Refrigeration System Truck Chiller, ≤14m³
X-58 Vehicle Refrigeration System Truck Chiller, ≤14m³
X-58 Vehicle Refrigeration System Truck Chiller, ≤14m³
X-58 Vehicle Refrigeration System Truck Chiller, ≤14m³
X-58 Vehicle Refrigeration System Truck Chiller, ≤14m³
Specifications
Brand Name :
Yinhuasheng/OEM
Place of Origin :
China
Certification :
CE
MOQ :
1SET
Price :
Negotiable
Packaging Details :
Negotiable
Delivery Time :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Model Number :
X-58
Product Name :
Roof-top Refrigeration Unit
Model :
X-58
Temperature Range :
-25°C To +25°C
Cooling Capacity(0℃) :
3250W
Cooling Capacity(-18℃) :
1830W
Application Box Volume :
≤14m³
Outside Temperature :
30°C To 50 °C
Compressor Brand :
Dayin
Compressor Mode :
5H14
Compressor Displacement :
138 CC
Condenser :
Parallel Flow Condenser
Evaporator :
Inner grooved copper tube&aluminum Fin
Description

1. Top mounted on refrigeration van or truck.

2. Direct drive by vehicle engine, this is designed for 14m³ refrigerated trucks, to deliver the chill & frozen foods, medicals, fruits, vegetables, ice cube, sea foods, etc.

3. OEM customized service are avaliable.

4. Low operational cost and service cost.

5.Easily installation.

6.Suitable for long distance transportation.

X-58 Top mounted Vehicle Refrigeration System Truck

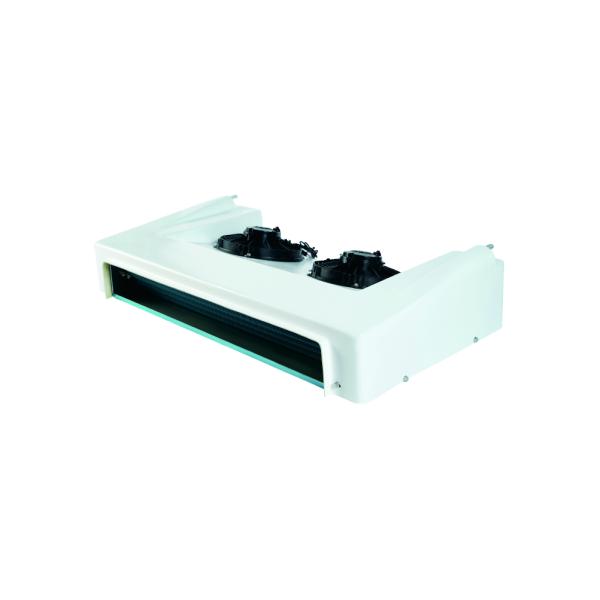

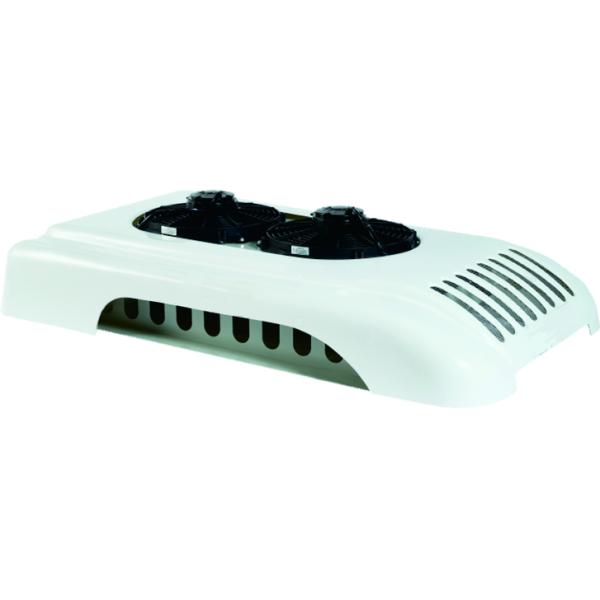

Product Pictures:

X-58 Vehicle Refrigeration System Truck Chiller, ≤14m³

X-58 Vehicle Refrigeration System Truck Chiller, ≤14m³

Features:

► Eco-friendly refrigerant R404A (R134a system is also avalible).

►Corrosion resistant and high strength FRP canning material.

► Aluminium fin parallel flow condenser, light and compact, with good heat exchanging.

► Inner grooved copper tube,with strong evaporator, with large airflow and good protection to the evaporator coils.

► Strong reliable and stable compressor for R404a systems specially.

► Digital display control panel,minimal operation.

► HP and LP switch safety protection.

► Large cooling capacity, reliable performance.

Technical Parameters:

Unit Model X-58
Applicable Temperature(℃) -25℃ ~ +25℃
Box Volume (m³) ≤14m³

Cooling Capacity

(W)

 0℃ 3250 W
-18℃ 1830 W
Compressor Model 5H14
CC 138 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Number of Fans 2 PCS

Condenser

 Material Parallel flow condenser
Number of Fans 2 PCS
Refrigerant R404a
Refrigerant Charge 1.2KG
Box Temperature Adjustment Electronic digital display
Safety Protect High and low pressure switch
Defrosting Hot gas defrost automatically
Weight/Dimensions Evaporator 15 KG
Condenser 27 KG
Evaporator 910*570*210
Condenser 1150*690*250
Drive Model Non-independent engine driven
