YD36-24-8L36, Raw Audio Speakers commonly used accessories, 1W, 8ohm
YD36-24-8L36, Raw Audio Speakers commonly used accessories, 1W, 8ohm
YD36-24-8L36, Raw Audio Speakers commonly used accessories, 1W, 8ohm
YD36-24-8L36, Raw Audio Speakers commonly used accessories, 1W, 8ohm
YD36-24-8L36, Raw Audio Speakers commonly used accessories, 1W, 8ohm
YD36-24-8L36, Raw Audio Speakers commonly used accessories, 1W, 8ohm
Specifications
Brand Name :
YUESEN
Model Number :
YD36-24-8L36
Certification :
ISO2000, RoHS, REACH
Place of Origin :
China, Jiangsu, Changzhou
MOQ :
10kpcs
Price :
$0.6/pcs
Payment Terms :
T/T, Western Union
Supply Ability :
1-1.5million/month
Delivery Time :
2-4 weeks
Packaging Details :
Carton size: 48*30*30cm 800pcs/carton
Size :
36mm
Power :
1W
Impedance :
8ohm
Sound Pressure Level :
92±3dB
Frequency Response :
400Hz-5.0kHz
Product Name :
Raw Audio Speakers
Description

YD36-24-8L36, Raw Audio Speakers commonly used accessories, 1W, 8ohm

We are a high-tech enterprise which integrates research, design, production and sales. Our products are widely used for TV, Mobile devices such as notebook, GPS, mobile DVD and so on.

General Specifications:

Dimensions 36mm
Rated Input Power 1W
Maximum Input Power 1.5W
Sound Pressure Level 92±3dB 0.1M/0.1W at 0.8,1.0,1.2,1.5KHz Average
(0dB SPL=20μPa)
Impedance 8Ω±1.2Ω(at 1.5kHz, 1.5V)

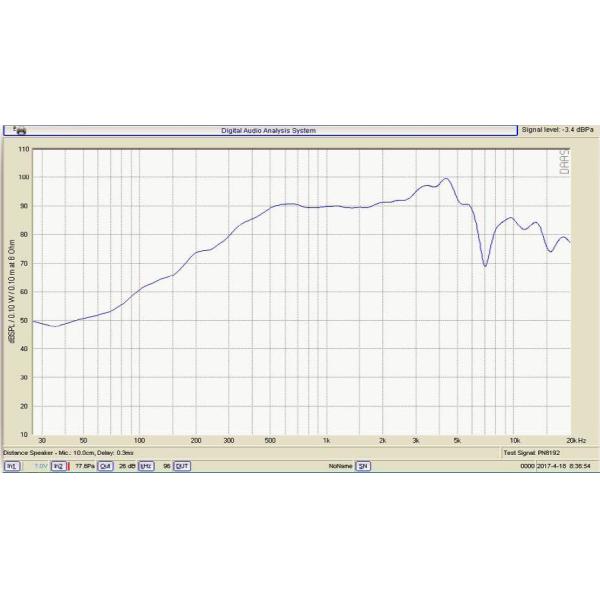

Frequency Response 400Hz~5.0kHz(-10dB)
Lower Resonance Frequency 600Hz±100Hz at 1.0V

Distortion Factor

 Not exceed 5% (at 1kHz, Input:1W)
Operation It shall be normal. Input Power: 2.83V of 300-500Hz sine wave.
Polarity When a positive DC current is applied to the terminal marked(+), diaphragm shall move forward
Reliable Test Sensitivity difference shall be within 2dB and should be normal after test.
Load Test

Shall be normal after test.

Input Power: 1.0W (2.83V) White Noise

Duration: 96 hours
Humidity Test

Shall be normal after test.

Temperature: 40℃

Relative Humidity: 90~96%

Duration: 96 hours
High Temperature Test

Shall be normal after test.

Temperature: 65℃

Duartion: 96 hours
Cold Temperature Test

Shall be normal after test.

Temperature: -2.℃

Duartion: 96 hours
Thermal Shock Test

a) High Temperature: 60℃

Low Temperature: -20℃

b) Number Of Cycles: 5 cycles

c) Duration Of Exposure: 2 hours at each temp

d) Duration Of Recovery: 1 hour
Vibration Test

Shall be normal after test.

Amplitude: 1.5mm

Frequency: 10~55Hz

Sweep Time: 1 minute

Axes: 3 axes

Duration: 2 hours on each axes
Drop Test 1.5m 12 cycles

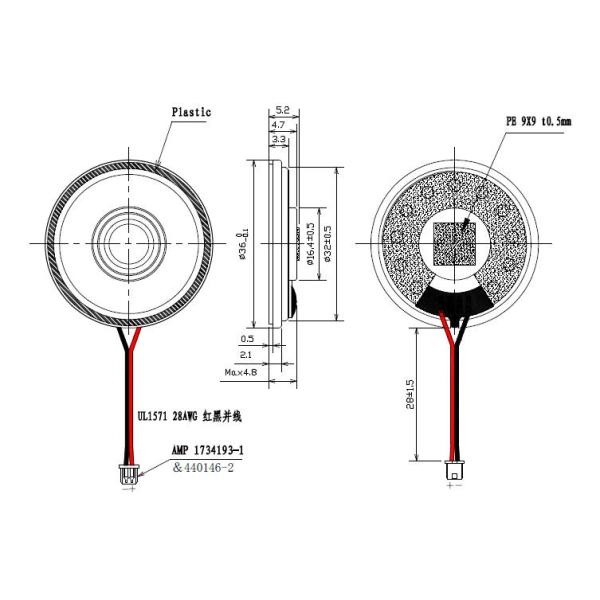

Drawing:

YD36-24-8L36, Raw Audio Speakers commonly used accessories, 1W, 8ohm

YD36-24-8L36, Raw Audio Speakers commonly used accessories, 1W, 8ohm

Product Processing:

YD36-24-8L36, Raw Audio Speakers commonly used accessories, 1W, 8ohm
