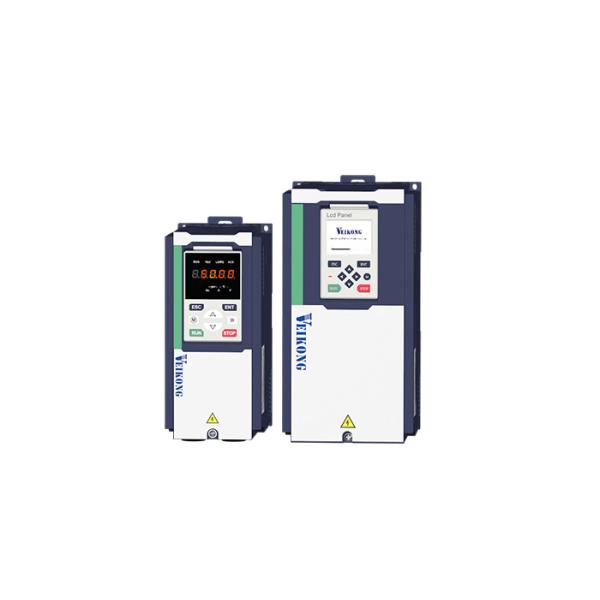

Hybrid DC AC MPPT VFD Solar Pump Inverter With GPRS Monitoring
Hybrid DC AC MPPT VFD Solar Pump Inverter With GPRS Monitoring
Hybrid DC AC MPPT VFD Solar Pump Inverter With GPRS Monitoring
Hybrid DC AC MPPT VFD Solar Pump Inverter With GPRS Monitoring
Specifications
Brand Name :
VEIKONG
Model Number :
VFD500-PV
Certification :
CE IEC
Place of Origin :
China
MOQ :
50 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15000 per/ month
Delivery Time :
3-8 working days
Packaging Details :
paper carton under 45kw, starting from 45kw wooden case for packing
Power range :
0.75-250kw
Low / full water protection :
Supported
Display choices :
LCD/LED
Certificate :
CE IEC
voltage :
380V-480V
Brand :
Veikong
Description

Hybrid DC AC MPPT VFD Solar Pump Inverter With GPRS Monitoring

Hybrid DC/AC MPPT VFD Solar Pump Inverter With One Button Switch & GPRS Monitoring

1. Veikong solar pump inverter high performance product features achieve higher requirement in water supply

1) VEIKONG solar pump inverter GPRS system is a professional monitoring system platform managing solar pump plants.

2) MPPT and PID function which is special in the whole market.

3) Support hybrid mode, both AC and DC.

4) Provide multi protection for the whole water system.


2. VFD500-PV technical and factory testing room pics

Type Terminal Symbol Terminal Name Terminal function description
Analog input voltage +10V Input voltage 10.10V±1%
Maximum output current:10mA,it provides power supply to external potentiometer with resistance range of:1KΩ~51KΩ
GND Analog ground Internal isolation from COM
AI1 Analog input1 Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage
Input current:0~20mA:Impedance 500Ω,Maximum input current
Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input.
AI2 Analog input 2 Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage
Input current:0~20mA:Impedance 500Ω,Maximum input current
hrough the jumper switch AI2 0 ~ 10V and 0 ~ 20mA. Analog input switch, the factory default voltage input.
Analog output AO1 Analog output 1 Output voltage:0~10V:Impedance ≥10KΩ
Output current:0~20mA:Impedance 200Ω~500Ω
Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output.
AO2 Analog output 2 Output voltage:0~10V:Impedance ≥10KΩ
Output current:0~20mA:Impedance 200Ω~500Ω
Through the jumper switch AO2 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output.
GND Analog ground Internal isolation from COM

Hybrid DC AC MPPT VFD Solar Pump Inverter With GPRS Monitoring

Hybrid DC AC MPPT VFD Solar Pump Inverter With GPRS MonitoringHybrid DC AC MPPT VFD Solar Pump Inverter With GPRS Monitoring

3. The MPPT and PID function

When P00.11=100, it will execute the following macro modification

1. P47.01=211 (auto start, enable MPPT, enable auto switch)

2. P07.03=47 (Mains action relay, normally closed for mains (when the automatic switching mode is 2)

3. P07.16=1.000 Relay 1 action delay 1s

4. P07.17=1.000 Relay 1 reset delay 1s

5. P47.06=600s Mains switching judgment 10min

6. P47.07=3600s Mains use time 60min.

When P00.11=101, it will execute the following macro modification

1. P01.07=8 enable PID function

2. P40.06=50.00 The default setting is the midpoint

4. VFD500-PV series product brochure and user manual download
VEIKONG VFD500-PV Hybrid Solar pumping inverter us...
VEIKONG solar pump inverter brochure.pdf
