Specifications
Brand Name :
VEIKONG
Model Number :
VFD580
Certification :
CE IEC
Place of Origin :
China
MOQ :
2 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15490 per/ month
Delivery Time :
7-8 working days based on quantity
Packaging Details :
paper carton under 45kw, starting from 45kw wooden case for packing
Power :
45KW
Frequency :
50/60hz
Keypad :
support LCD and LED keypad optional
STO function :
support
Current :
25A
Software OEM :
Support
Description

VFD580 45KW 380V Powerful Performance Variable frequency Inverter in higher applications

1. Main features of VEIKONG VFD580

1. Support AC asynchronous and permanent magnet synchronous motor, servo motor, supports speed, torque and servo position control mode.

2. 15kw and above equipped with built-in DC reactor as standard.

3. 37kw and below equipped with built-in braking unit as standard, 45kw-90kw is optional, starting from 110kw is external.

4. 90kw and below equipped with brake circuit short-circuit protection function.

5. Support MODBUS-RTU, CAN-Open, ProfiNet. Stronger mode VFD586 supports EtherCat.

6. Support 6 kinds of PG card(Incremental PG card, rotary, sin-cos pg card, ABZ close loop pg card, UVW pg card and Tamagawa absolute pg card.

7. Standard motor temperature sensor interface, support PT100, PT1000, KTY84.

8. Support Spanish LCD keypad, it is easy to monitor and operator.

9. Support optional STO function.

2. VFD580 series control circuit terminals

Type Terminal symbol Terminal name Terminal function description
Analog input VREF

Analog input

reference voltage

 VREF can choose 10V or 15V, switch between 10V and 15V of VREF throughthe "VREF" toggle switch, the factory default is 10V 10V3%,
10V+3%,15V+3%
The maximum output current is 30mA, that is, the recommended external
potentiometer resistance range: 1K~51K
GND Analog input ground Internally isolated from COM. 0V
AI 1 Analog input 1 Only input voltage:-10V~10V :Impedance 20K

3. Series description

Model Rated output current Applicable motor Size Brake unit
Three phase :400V
VFD580/586-2R2-T4B 5.6A 2.2KW

SIZE A

Standard

built-in
VFD580/586-4R0-T4B 9.4A 4.0KW
VFD580/586-5R5-T4B 13.0A 5.5KW
VFD580/586-7R5-T4B 17.0A 7.5KW SIZE B
VFD580/586-011-T4B 25.0A 11KW
VFD580/586-015-T4B 32.0A 15KW

SIZE C
VFD580/586-018-T4B 37.0A 18.5KW
VFD580/586-022-T4B 45.0A 22KW
VFD580/586-030-T4B 60.0A 30KW SIZE D
VFD580/586-037-T4B 75.0A 37KW
VFD580/586-045-T4 (B) 90.0A 45KW SIZE E

Optional

built-in
VFD580/586-055-T4 (B) 110.0A 55KW
VFD580/586-075-T4 (B) 152.0A 75KW SIZE F

Optional

built-in
VFD580/586-090-T4 (B) 176.0A 90KW
VFD580/586-110-T4 210.0A 110KW

SIZE G

Circumscribed
VFD580/586-132-T4 253.0A 132KW
VFD580/586-160-T4 304.0A 160KW SIZE H
VFD580/586-200-T4 380.0A 200KW

SIZE I
VFD580/586-220-T4 426.0A 220KW
VFD580/586-250-T4 465.0A 250KW
VFD580/586-280-T4 520.0A 280KW SIZE J
VFD580/586-315-T4 585.0A 315KW

Model Rated output current Applicable motor Size Brake unit
Single phase/Three phase :220V
VFD580/586-0R7-S2B (T2B) 5.6A 0.75KW

SIZE A

Standard

built-in
VFD580/586-1R5-S2B (T2B) 8.0A 1.5KW
VFD580/586-2R2-S2B (T2B) 10.6A 2.2KW
VFD580/586-4R0-S2B (T2B) 17.0A 4.0KW SIZE B
VFD580/586-5R5-S2B (T2B) 25.0A 5.5KW
VFD580/586-7R5-S2B (T2B) 32.0A 7.5KW SIZE C
VFD580/586-011-S2B (T2B) 45.0A 11KW
VFD580/586-015-S2B (T2B) 60.0A 15KW SIZE D
VFD580/586-018-S2B (T2B) 75.0A 18.5KW

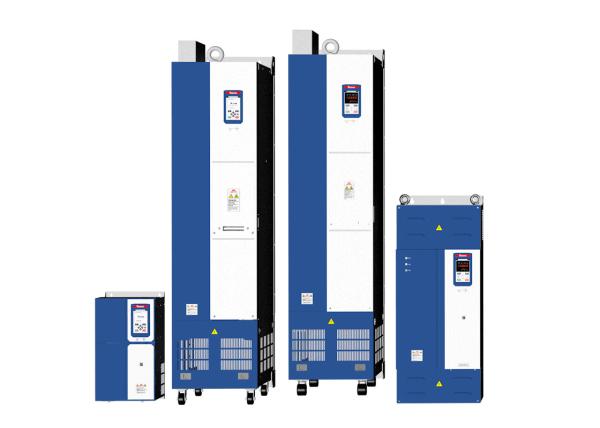

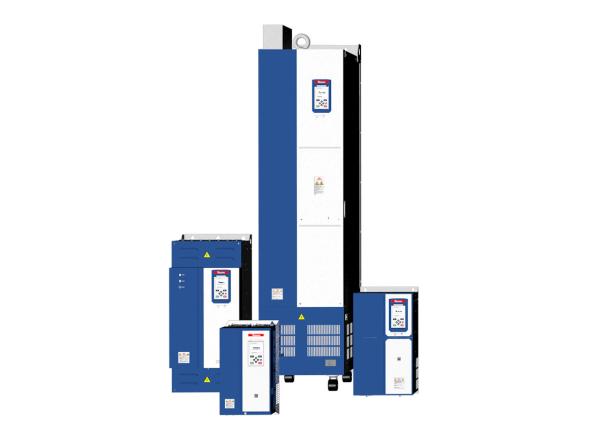

4. VFD580 product images

VFD580 45KW 380V Powerful Performance Variable frequency Inverter in higher applicationsVFD580 45KW 380V Powerful Performance Variable frequency Inverter in higher applications

5. FAQ

1. Can you accept to use our logo?

we accept OEM production.

2. How can i get the after-service?

Our R&D team with more than 20 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.

3. How about your products quality inspection?

We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.
