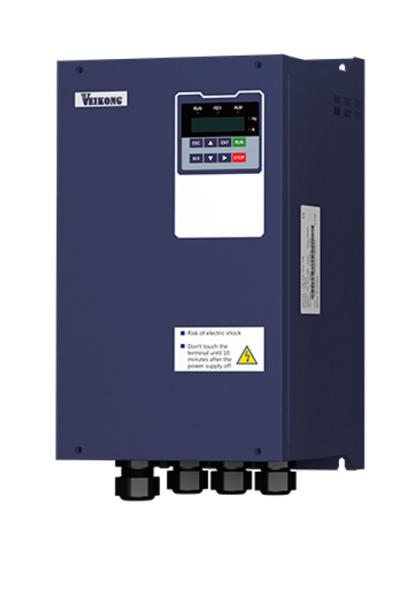

MPPT VFD Solar Pump Inverter for Solar Water Pump System 4kw 5.5kw 7.5kw 11kw IP65
MPPT VFD Solar Pump Inverter for Solar Water Pump System 4kw 5.5kw 7.5kw 11kw IP65
MPPT VFD Solar Pump Inverter for Solar Water Pump System 4kw 5.5kw 7.5kw 11kw IP65
MPPT VFD Solar Pump Inverter for Solar Water Pump System 4kw 5.5kw 7.5kw 11kw IP65
MPPT VFD Solar Pump Inverter for Solar Water Pump System 4kw 5.5kw 7.5kw 11kw IP65
MPPT VFD Solar Pump Inverter for Solar Water Pump System 4kw 5.5kw 7.5kw 11kw IP65
Specifications
Brand Name :
VEIKONG
Model Number :
VFD510-PV
Certification :
CE, Rosh
Place of Origin :
China
MOQ :
1
Price :
Negotiable based on quantity
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
15000pcs per Month
Delivery Time :
3 days, depend on the order quantity
Packaging Details :
Paper carton and wooden box
Product Name :
4kw 5.5kw 7.5kw 11kw solar pump inverter
Output Frequency :
50HZ 60Hz
Application :
Farming Irrigation and solar pumping system
Output Current :
Depend on model
Output Type :
3 phase, TRIPLE
Weight :
Depend on model
Protection level :
IP54
Brand :
VEIKONG
OEM :
Support
Description

4kw 5.5kw 7.5kw 11kw IP65 Solar Water Pump Inverters MPPT Controller

Key Feature

1. Operates without grid directly from photovoltaic (PV) cells


2. Automatic start and stop with solar radiation


3. Built-in maximum power point tracking (MPPT)


4. Easy installation and set-up for serial production


5. Compatible with all pump types


6. Dual supply capability with change over switch - solar and grid compatible


7. Energy saving function and dry run self learning function

8. GPRS monitoring control via PC and Mobile

Technical Specification

220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

Normal working DC voltage

260V-400V

400V-650V

Recommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

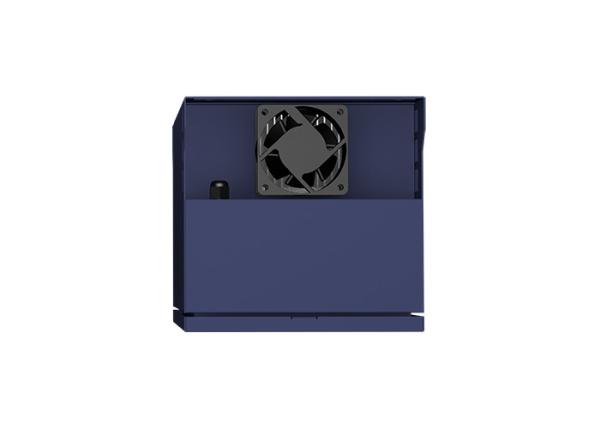

Cooling method

Air cooling

Protection degree

IP20/IP21

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS

Product Details

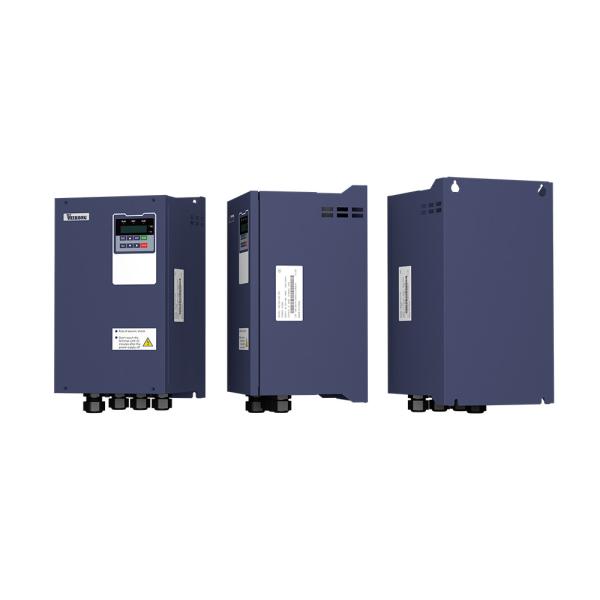

MPPT VFD Solar Pump Inverter for Solar Water Pump System 4kw 5.5kw 7.5kw 11kw IP65

MPPT VFD Solar Pump Inverter for Solar Water Pump System 4kw 5.5kw 7.5kw 11kw IP65

Q&A

1. Does the product need to set a lot of parameters?

No, it doesn't. The inverter has a self-adaptive and self-learning function. It is automatic start and stop, you can press Run key to start, or you just wait for 600S then it will automatically start

2. Could it replace my previous PV pumping inverter?
Yes, of course. Selecting inverter model according to the rated voltage, current and power of the water pump. A bit more is better. Then take off the old one and put ours on, the system will work.

3. How to design solar PV water pump system?
Key point: the rated VOC and vmp and power of the PV Array need to match the input range of the inverter. If need, we will provide technical support online.

4. How to make the water pump system work without sunshine?

Usually, solar PV water pump system can meet the needs of pumping water.
If there is no sunshine, the system will not work. But out inverter could also support AC input. So, connect the power grid or diesel power generation to the inverter, the pumping system will work. If necessary, keep switch and interface locations during the system design time.

5. How to use terminal control with external switch to run and stop solar pump inverter ?
(Terminal control): As the default control mode is keypad control, First set P00.06=1 and use a wire or switch to connect com and DI1, When the switch is closed, the drive run, when the switch is open, the drive stop

6. How to use a float in the water tank to stop the pump if the tank is full?
Use float switch to short DI 1 and com.

7. Use level probe in the well for protection against dry running
Set P24.12=1 and set P24.13 and P24.14 and P23.21

8. How to set minimum frequency 25hz and maximum 50HZ?
Set P47.05=25HZ and 47.06 to some time and 47.07 to some time

9. If pump is 60HZ frequency, how to set max frequency?
Notice: If your motor rated frequency is 60HZ you should set P01.06=P01.08=P11.05=60HZ.

10. How to achieve Automatic start after stop?
Our solar pump inverter is automatic start and stop with our special software
