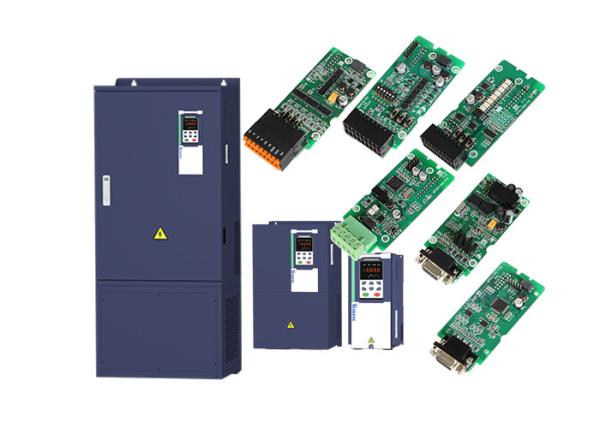

VEIKONG VFD500-PV 3 Phase Solar Pump Inverter with Advanced MPPT Technology
VEIKONG VFD500-PV 3 Phase Solar Pump Inverter with Advanced MPPT Technology
VEIKONG VFD500-PV 3 Phase Solar Pump Inverter with Advanced MPPT Technology
VEIKONG VFD500-PV 3 Phase Solar Pump Inverter with Advanced MPPT Technology
VEIKONG VFD500-PV 3 Phase Solar Pump Inverter with Advanced MPPT Technology
VEIKONG VFD500-PV 3 Phase Solar Pump Inverter with Advanced MPPT Technology
Specifications
Brand Name :
VEIKONG
Model Number :
VFD500-PV
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15000pcs per Month
Delivery Time :
depend on the order quantity
Packaging Details :
the power less than 45kw use Carton, starting from 45kw use Wooden case
Product Name :
solar pump controller
Voltage :
380v/220v
Output type :
three Phase/single phase
Color :
bule and white
Protection :
IP20 IP65
Power :
0.75kw-710kw
Brand :
VEIKONG
Original :
China
Warranty :
18 months or more
Description

IP20 IP65 High Frequency Solar Inverter Suppliers 0.75kw TO 250kw Power

5.5KW 50hz to 60hz solar pump inverter solar vfd dc 900V AC drive pump

Electrical Specifications and Power degree

220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

Normal working DC voltage

260V-400V

400V-650V

Recommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP20/IP21

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS



Product Details and Features:

VEIKONG VFD500-PV solar pumping inverter is specially designed for watering system. A high converting efficiency of 99% and advanced MPPT technology make the solar energy fully used. It converts DC power into AC to drive all kinds of motors. The intelligent design protects the pumps from many abnormal cases, such as over-loading, over-voltage, dry-running, over-heating,low frequency and et
● Easy to use
Simply connect the photovoltaic panel to the inverter, no need to set any parameters, and the PV pump can be automatically started after power-on
● mperature automatic derating, etc., which can effectively extend the life of the product
● Advanced MPPT algorithmEnsure solar power tracking efficiency can reach 99%
● GPRS remote monitoringSupports optional GPRS module, which can realize remote monitoring function of computer webpage and mobile APP
● AC/DC switching schemeAll series of products can realize automatic switching of PV DC input and grid AC input, which can meet 24 hours of no care work

Accessories:

1. GPRS (support 2g/3g/4g internet)

It supplies water volume monitoring and operation of inverter from anywhere at anytim
It’s convenient to visit real time and historical data via web or Android APP anytime and anywhere.
This easy-to-use platform makes monitoring of solar pump systems simple and convenient,
far reducing operate time and monitoring costs as well.

VEIKONG VFD500-PV 3 Phase Solar Pump Inverter with Advanced MPPT Technology

2. LCD keypad

Standard inverter are with LED keypad,LCD keypad is optional.
LCD keypad can monitor 4 parameters at the same time. LED keypad show one parameter only.
LCD keypad with detailed parameter explain,no need use user manual ,more user friendly.
LCD keypad with copy and update and download function.widely used for government projects and big farms.

VEIKONG VFD500-PV 3 Phase Solar Pump Inverter with Advanced MPPT Technology

VFD500-PV 5.5KW 380V inverter picture:


VEIKONG VFD500-PV 3 Phase Solar Pump Inverter with Advanced MPPT Technology


Package:

When power is less than 45kw, we use carton package:
VEIKONG VFD500-PV 3 Phase Solar Pump Inverter with Advanced MPPT Technology

When power is more than 45kw, we use wood case package:
VEIKONG VFD500-PV 3 Phase Solar Pump Inverter with Advanced MPPT Technology

The solar pump inverter is the most important equipment in the photovoltaic water pumping system and the soul of the system. Electrical energy from photovoltaic solar panels to drive AC motor water pumps.
Solar pump inverter that switches the DC power supply from the solar panels to the AC power needed to control the pump. With the solar inverter, pumps can adapt to solar energy sources rather than traditional power supplies or generators. Solar pumping system is a series-parallel absorb sunlight radiation energy through solar panels and convert it into AC power by inverter to drive centrifugal pump, irrigation pump, axial flow pump, mixed-flow pump of deep well water pump system.
According to the change of intensity of sunlight, solar pump inverter system adjusts output frequency in real time, output power close to the sun cell array maximum power.
Veikong solar pump drive can help and bring you more water and more green world
