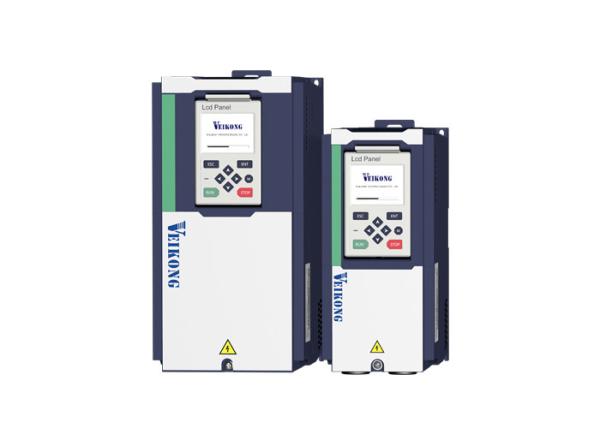

Intelligent MPPT VFD Solar Pump Inverter for Maximum Efficiency and Convenience
Intelligent MPPT VFD Solar Pump Inverter for Maximum Efficiency and Convenience
Intelligent MPPT VFD Solar Pump Inverter for Maximum Efficiency and Convenience
Intelligent MPPT VFD Solar Pump Inverter for Maximum Efficiency and Convenience
Intelligent MPPT VFD Solar Pump Inverter for Maximum Efficiency and Convenience
Intelligent MPPT VFD Solar Pump Inverter for Maximum Efficiency and Convenience
Specifications
Brand Name :
VEIKONG
Model Number :
VFD500-PV
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability :
15000pcs per Month
Delivery Time :
3 days, depend on the order quantity
Packaging Details :
Carton and Wooden Box
Product Name :
IP20 380V 4KW Solar Pump Inverter
Current :
9.4A
Keypad :
LED/LCD and shuttle display for options
Model Range :
0.75KW-250KW
Working Principle :
AC-DC-AC
Frequency :
50HZ/60HZ
Brand :
VEIKONG
MPPT efficiency :
more than 99.9999%
Special function :
MPPT+PID
Remote control :
Support with GPRS
Description

IP20 380V 4KW Solar Pump Inverter Work With Solar Panel And Water Pump

Product Feature:

1. Advanced MPPT Technology: Maximum MPPT Efficiency: 99%;


2. Auto-track All Daytime;


3. Auto dormancy/wake-up, Under-voltage restart;


4. Support both AC and DC power input (optional);


5. Water Level Monitoring: dry run protection, overflow protection Record: generated power, pumped water, running time;


6. The whole water pumping systems running not rely on grid power or battery;


7. Protection Functions: support low frequency, dormancy, dry-run, over-current, minimum power and other protection functions;


8. Default Auto-running: auto-running by keypad, auto-running by IoT, auto-running by Terminals;


9. Excellent Control Performance: make sure the system auto-running with unattended, maximum output frequency is 600hz under VF control;


10. Intelligent IoT: support GPRS module, for remote control.

Solar Pump Inverter Special Parameters

Function code Name Description Default Property
47 Group solar pumping special group
P00.03 RESET

0:NO ACTION

11:Restore default parameter except for motor parameter and auto-tune related parameter and factory parameter

12:Restore default to factory parameter 13:Clear tripping record

 0 ★
P00.06 Source of the Operation Command

0:keypad

1:terminal

2:communication

Ø Command source: run,stop,forward,reverse,jog,fast brake stop.etc

 0 ★
P00.07 Numeric frequency setting 00.00Hz～maximum frequency 50.00Hz ☆
P00.11 Application Macro

01:Output three phase 50HZ

02:Output three phase 60hz

21:Output single phase with capacitor 50hz

22:Output single phase with capacitor 60hz

31:Output single phase without capacitor 50hz

32:Output single phase without capacitor 60hz

 00 ★
P01.06 Maximum frequency 10.00～600.00Hz 50.00Hz ★
P01.08 Upper limit frequency Lower limit frequency-maximum frequency 50.00Hz ☆
P07.03 Relay 1 Output terminal function group(T1A T1B T1C)

0:No function

1:READY

2:RUN

3:Error1(stop fault)

4:Error2(same as Error1 except undervoltage)

5:Warning output(fault but in running)

 3 ☆
P11.01 AC asynchronous motor TYPE

0:Three phase AC asynchronous motor

1:Single phase AC asynchronous motor without starting capacitor

 0 ★
P11.02 Motor rated power

0.1kW～710.0kW

Ø when power is less than 1kw ,0.75kw set to 0.8 as per round up principle ,0.55kw motor set 0.6

Ø when change motor rated power,AC drive will automatically set other parameter of motor name plate and motor model parameter be careful to use

 Depend ★
P11.03 Motor rated voltage 10V～2000V Depend ★
P11.04 Motor rated current

P11.02<30kW:0.01A

P11.02>=30kW:0.1A

 Depend ★
P11.05 Motor rated frequency 1.00Hz～600.00Hz 50.00Hz ★
P11.06 Motor rated RPM 1～60000rpm Depend ★
P21.00 Monitoring display

0:Standard mode (display frequency only)

1:Automatic scrolling display(Check 3.1 in detail )it show hz,current,power and voltage

 0 ★
P23.15 Output phase loss function 0.0-30%, 0% means output phase detections shielded 30% ☆
r27.15 Accumulative running time Unit:hour ●
P47.00 Solar pump Mppt function enable

0: invalid

The parameters behind the 47 group cannot be changed!

1: Enable, to enable the special mppt function of the PV pump inverter

 1 ★
P47.01

Solar pump control mode

Units digit’s: Startup mode

0: Manual start, the start mode is determined by P00.06;

1: automatic start,

When P00.06 change, the association changes here.

P00.06=0, when inverter starts and stops by keypad control, it is automatically modified to 1-automatic start

P00.06=1, when inverter starts and stops by terminal control.it is automatically changed to 0-manual start

Ten digit’s: MPPT function

0: MPPT is disabled; CVT control is used (voltage is given as P47.04).

1: Enable MPPT.

 11 ★
P47.03 Automatic start timing In auto start mode, set the time from power on to start. It is also waiting time to start 600 ★
P47.04 MPPT starting voltage

Set the starting voltage of the MPPT algorithm.

When the MPPT function is disabled, this value is the reference voltage.

 305V(530V) ★
P47.05 Light detection threshold If the output frequency is lower than this value and exceeds P47.06, it will be reported to Sleep and stop 0Hz ☆
P47.06 Light detection time See P47.05 for explanation. 60s ☆
P47.07 Light weak wake up time After the sleep fault is reported, if the time when Vdc is higher than the undervoltage point is greater than the set value, the fault state is exited and the operation continues. 600s ☆
P47.08 MPPT tracking step length The amount of change in the bus voltage during an MPPT cycle. The larger the value, the faster the maximum power point is found, but the lower the accuracy of the maximum power point. 2V ☆
P47.09 Regulator proportional gain 0.001~1.00 It is for immediate response speed, it is not recommended to change 0.05 ☆
P47.10 Regulator integral gain 0.001~0.100 tracking response.it is not recommended to change 0.05 ☆
P47.28 Starting coefficient 0.000～1.000 0.850 ☆
P47.30 Fast speed function

Unit digit:fast starting

0:Disable 1:Enable

Ten digit:Fast mppt tracking

0:Disable 1:Enable

 11 ☆

Intelligent MPPT VFD Solar Pump Inverter for Maximum Efficiency and Convenience


Product Application

Intelligent MPPT VFD Solar Pump Inverter for Maximum Efficiency and Convenience

Intelligent MPPT VFD Solar Pump Inverter for Maximum Efficiency and Convenience

FAQ

1. Does the product need to set a lot of parameters?

No, it doesn't. The inverter has a self-adaptive and self-learning function. It is automatic start and stop, you can press Run key to start, or you just wait for P47.03=600S(Default) then it will automatically start

2. Could it replace my previous PV pumping inverter?

Yes, of course. Selecting inverter model according to the rated voltage, current and power of the water pump. A bit more is better. Then take off the old one and put ours on, the system will work.

3. How to design solar PV water pump system?

Key point: the rated VOC and VMP and power of the PV Array need to match the input range of the inverter. If needed, we will provide technical support online.

4. How to make the water pump system work without sunshine?

Usually, solar PV water pump system can meet the needs of pumping water.

If there is no sunshine, the system will not work. But out inverter could also support AC input. So, connect the power grid or diesel power generation to the inverter, the pumping system will work. If necessary, keep switch and interface locations during the system design
