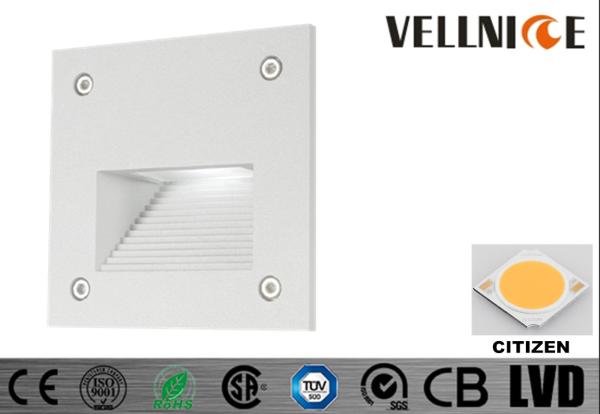

IP65 Square outdoor step lighting , 700mA EDISON Wall Light
IP65 Square outdoor step lighting , 700mA EDISON Wall Light
Specifications
Brand Name :
VELLNICE
Model Number :
R3A0001
Certification :
CE.ROHS
Place of Origin :
Dongguan city,Guangdong Province,China
MOQ :
11-50PCS
Price :
negotiation
Payment Terms :
30% TT Deposit before production.70% balance before loading
Supply Ability :
50000-80000PCS/Month
Delivery Time :
20-30days
Packaging Details :
White inner box,24PCS/Ctn .Ctn size:375*495*330mm
Power :
3W
IP :
65
Current :
700mA
LED Chip :
LED EDISON
Cut out :
94*94mm
Specification :
100*100*118mm
Material :
Aluminum alloy
Surface treatment :
electrostatic dusting
NW :
0.52KGS
GW :
14.48KGS
Packing :
24PCS/Ctn
Description

IP65 Square outdoor step lighting , 700mA EDISON Wall Light

Features of item R3A0001:

The cover frame and the lamp body are made of aluminum alloy and are molded through die-casting;the surface is treated by two processes of electrostatic dusting.

The cover side is equipped with sandblasted fully toughened glass with woven design and the four sides are sealed with glass glue,Silica gel waterproof gasket which are resistant to high temperature are installed around the glass and under the cover;the protection class is IP55

LED is used for this product;electric appliance is installed internally

It is suitable for exterior corridor,passageway,wall,park and so on

This product is CE certified and all materials are in compliance with ROHS standard.

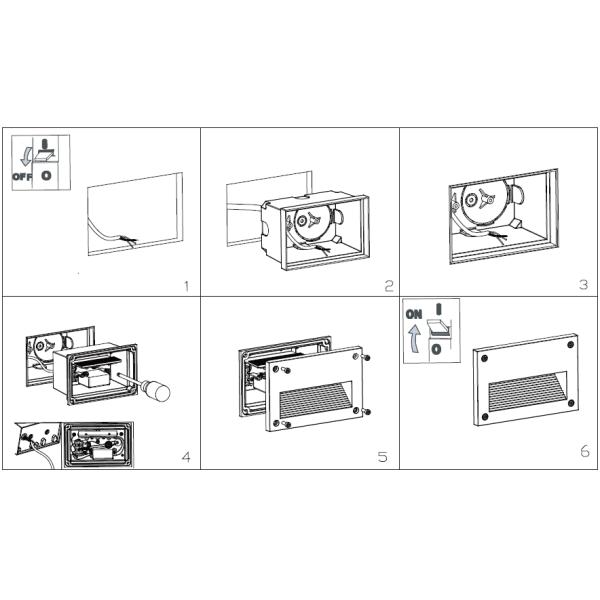

Installation Method:

1.Get the holes ready on the ceiling by fellowing the description on the left.

2.Make the power cord getting through the fixture from the back side.

3.Put the recessed box into the wall

4.Select the appropriate ballast according to above description and connect properly with the power supply,and then install the fixture into the ceiling box

5.Put the lamp cover on to the lighting fixture

6.Please see step 4 and 5 when changing the lamp source.

7.The demonstration below is only suitable for the indicated models

IP65 Square outdoor step lighting , 700mA EDISON Wall Light

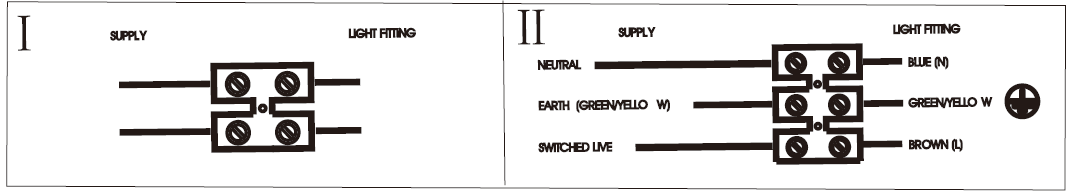

Connecting Method:

Please connect the power cord properly as shown by the drawing:

IP65 Square outdoor step lighting , 700mA EDISON Wall Light

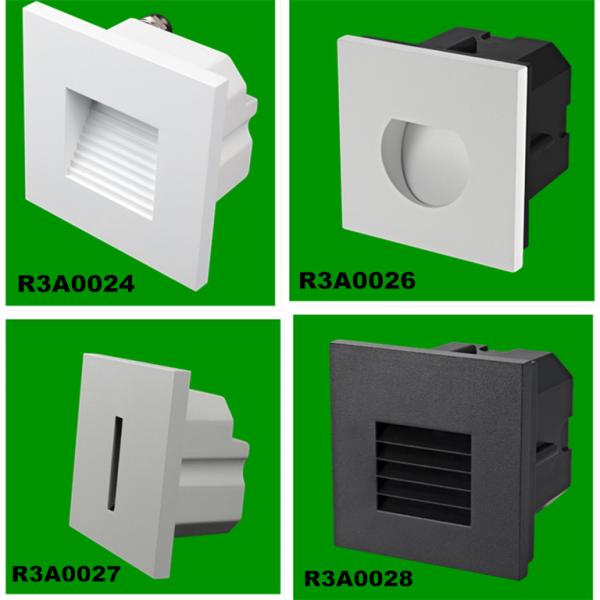

Other IP65 Wall lights you will like:
