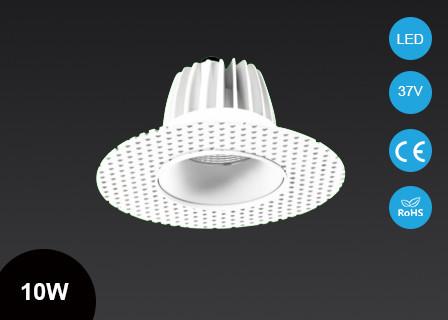

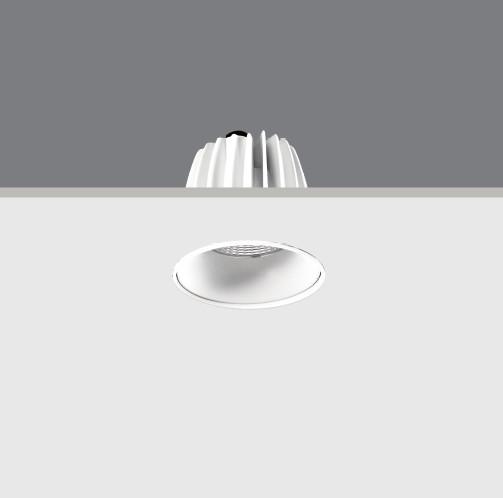

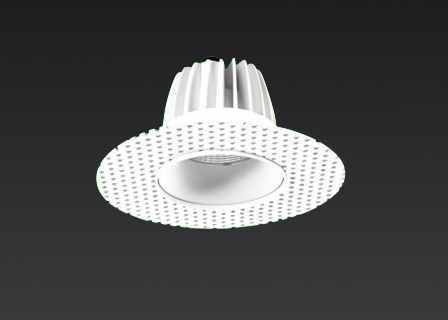

Anti glare 10W Trimless COB LED Downlight 76mm Cut Out Warm White 37V Pre-buried Frame Design
Anti glare 10W Trimless COB LED Downlight 76mm Cut Out Warm White 37V Pre-buried Frame Design
Anti glare 10W Trimless COB LED Downlight 76mm Cut Out Warm White 37V Pre-buried Frame Design
Anti glare 10W Trimless COB LED Downlight 76mm Cut Out Warm White 37V Pre-buried Frame Design
Specifications
Brand Name :
VELLNICE
Model Number :
R3B0565
Certification :
CE RoHs
Place of Origin :
Guangdong, China (Mainland)
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T,30% TT deposit before production,70% balance before loading
Supply Ability :
1,00000 pcs per month
Delivery Time :
25 working days after received your payment
Packaging Details :
8 pcs per carton, carton size 415*415*370mm
Material :
Aluminum
Color :
White
CCT :
2700~3000K
Lifetime :
50000h
IP rate :
IP20
Power :
10W
Finish :
Powder coating
Warranty :
Five years warranty
Voltage :
37V
Current :
250mA
Size :
Dia129*64mm
Beam angle :
24°/36°/60°
CRI :
80
Flux :
700lm
Description

Anti-glare 10W Trimless COB LED Downlight 76mm Cut Out Warm White 37V Pre-buried Frame Design


Specifications:

Type: Recessed LED Downlights
Series: Trimless led downlights
Model no.: R3B0565
Power 10W
CCT 2700-3000K
Power supply unit: 250mA LED driver
Size(mm) Dia129*H64mm
Cutout(mm) 76mm
Beam Angle 24/36/60 degree
Input Voltage 37V
Light efficiency >80%
CRI >80
Working Temperature -40~45°C
Storage Temperature -25~60°C
Color of Housing Texture white
Lifespan 50,000hrs
IP rating IP20
Certificate CE/ROHS
Warranty 5 years

Description:


Anti glare 10W Trimless COB LED Downlight 76mm Cut Out Warm White 37V Pre-buried Frame Design

Anti glare 10W Trimless COB LED Downlight 76mm Cut Out Warm White 37V Pre-buried Frame Design

1.The lamp body is made of aluminum and the heatsink is molded through die-casting and excellent thermal design.

2.The halftone pre-buried frame design,flat plaster ceiling after the trimless installation and good anti-glare,setting off a warm and comfortable atmosphere.

3.Steady structure and high reliability,it is simple and easy to installation by the pre-buried frame.

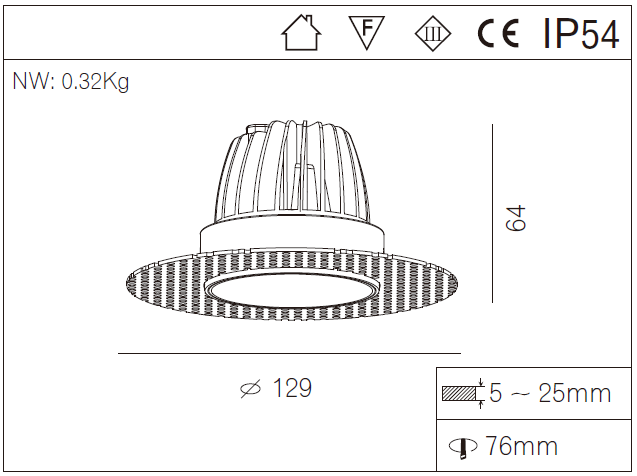

Dimension:

Anti glare 10W Trimless COB LED Downlight 76mm Cut Out Warm White 37V Pre-buried Frame Design

Application:

1)Hotels

2)Conference / Meeting rooms

3)Factories & Offices

4)Commercial Purposes.

5)Residential / Institution Buildings

6)Schools, Colleges & Universities Hospitals

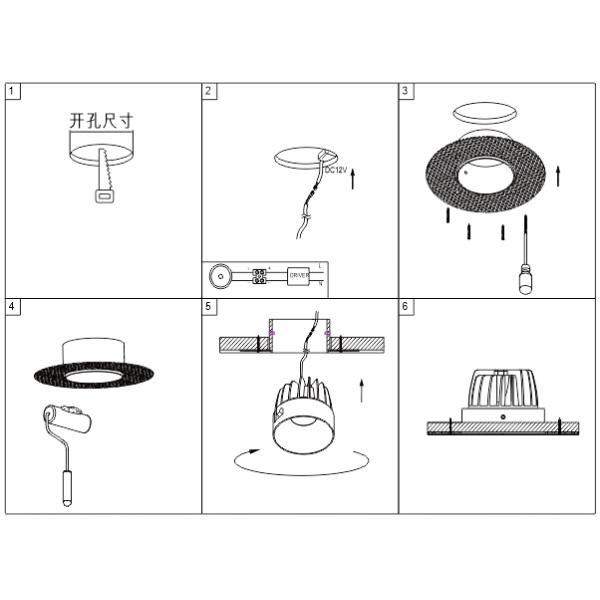

Installation:

Note: The luminaire should be installed by a licensed electrician and in accordance with local regulations. Make sure that the power is off before installation or maintenance.

Anti glare 10W Trimless COB LED Downlight 76mm Cut Out Warm White 37V Pre-buried Frame Design

Trade Terms:

1).Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery .

2).Production lead time for the bulk: 25days

3).Shipping freight are quoted under your requests

4).Shipping port: Shenzhen, Mainland China
