Metal Casing Precise Motor Centrifugal Flow 14.5m/S 3D Door Air Barrier
Metal Casing Precise Motor Centrifugal Flow 14.5m/S 3D Door Air Barrier
Metal Casing Precise Motor Centrifugal Flow 14.5m/S 3D Door Air Barrier
Metal Casing Precise Motor Centrifugal Flow 14.5m/S 3D Door Air Barrier
Metal Casing Precise Motor Centrifugal Flow 14.5m/S 3D Door Air Barrier
Metal Casing Precise Motor Centrifugal Flow 14.5m/S 3D Door Air Barrier
Specifications
Brand Name :
NANYOO / OME / ODM
Model Number :
FM-3509H(B)-L(Y)-MC
Certification :
CE/ CB /CCC
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
5000 per month .
Delivery Time :
30-35 work days
Packaging Details :
Carton With Foam Protection
Price :
Negotiated
Type :
Centrifugal Flow fan
Product name :
Air Barrier, Door Air Curtain / Commercial Door Air
Voltage :
220V / 110V
Control type :
Button / Remote control
Material :
Full Metal
Color :
White , Options
Application :
Restaurant, Shopping Mall, Coffee Shop, Hotel
Description

Model H Type 3D Door Air Barrier Full Metal Casing White Color With Precise Motor /

Strong Air Volume

Uniform forced airflow / Air speed more than 14.5m/s

Metal Casing Precise Motor Centrifugal Flow 14.5m/S 3D Door Air Barrier

​Door Air Barrier - Specification

Model

Diameter

of Impeller

Input

Power

Air
Velocity 		Air Volume Noise Fuselage Size Mounting Height
(mm) (W) (m/s) (m³/h)/CFM (dB) (mm) (m)
FM-3509H(B)-L(/Y)(-MC) 120 230 14.5 1020/600 ≤44 900×235×215 3.0-3.5
FM-3510H(B)-L(/Y)(-MC) 120 230 14.5 1020/600 ≤44 1000×235×215 3.0-3.5
FM-3512H(B)-L(/Y)(-MC) 120 305 14.5 1360/800 ≤45 1200×235×215 3.0-3.5
FM-3515H(B)-L(/Y)(-MC) 120 385 14.5 1700/1000 ≤48 1500×235×215 3.0-4.5
FM-3518H(B)-L(/Y)(-MC) 120 460 14.5 2040/1200 ≤50 1800×235×215 3.0-3.5
FM-3520H(B)-L(/Y)(-MC) 120 460 18 20401200 ≤50 2000×235×215 3.0-3.5
FM-4509H(B)-L(/Y)(-MC) 120 330 18 1260/741 ≤46 900×235×215 4.0-4.5
FM-4510H(B)-L(/Y)(-MC) 120 330 18 1260/741 ≤46 1000×235×215 4.0-4.5
FM-4512H(B)-L(/Y)(-MC) 120 420 18 1680/988 ≤47 1200×235×215 4.0-4.5
FM-4515H(B)-L(/Y)(-MC) 120 545 18 2100/1235 ≤50 1500×235×215 4.0-4.5
FM-4518H(B)-L(/Y)(-MC) 120 635 18 2520/1482 ≤52 1800×235×215 4.0-4.5
FM-4520H(B)-L(/Y)(-MC) 120 635 18 2520/1482 ≤52 2000×235×215 4.0-4.5
FM-5509H(B)-L(/Y)(-MC) 120 440 21 1450/853 ≤48 900×235×215 5.0-5.5
FM-5510H(B)-L(/Y)(-MC) 120 440 21 1450/853 ≤48 1000×235×215 5.0-5.5
FM-5512H(B)-L(/Y)(-MC) 120 550 21 1930/1135 ≤49 1200×235×215 5.0-5.5
FM-5515H(B)-L(/Y)(-MC) 120 780 21 2420/1423 ≤52 1500×235×215 5.0-5.5
FM-5518H(B)-L(/Y)(-MC) 120 830 21 2900/1706 ≤54 1800×235×215 5.0-5.5
FM-5520H(B)-L(/Y)(-MC) 120 830 21 2900/1706 ≤54 2000×235×215 5.0-5.5

3D Design Door Air Barrier Full Metal Casing White Color Suitable For Restaurant/ Coffee Shop/ Factories

Warehouse/ Shopping Mall/ Super market so on

Metal Casing Precise Motor Centrifugal Flow 14.5m/S 3D Door Air Barrier

Working principle (SAVING 90% ENERGY)

Door air curtain / Door air barrier also known as Air door , Air Barrier , widely used in Factories , Shops ,

Restaurants , Pharmacies , Cold storage , Hotels , Hospitals , Airports , Stations and other environments

and all air-conditioned place .

Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating

Indoor and Outdoor air , reduce energy consumption , prevent the intrusion of dust , insects and harmful gases

and provide a comfortable working , shopping and leisure environment .

Metal Casing Precise Motor Centrifugal Flow 14.5m/S 3D Door Air Barrier

PRODUCT FEATURES

  • Full metal casing with unique design
  • Centrifugal style fan
  • Uniform forced airflow
  • Air speed more than 14.5 m / s

Precise motor , Strong air volume - 30 years of experience in motor R & D and manufacturing

Power is enough , Strong torsional force , High speed ,

Ensure strong power

Expuisite workmanship , Make sure that it is steady and noiseless for a long time .

Metal Casing Precise Motor Centrifugal Flow 14.5m/S 3D Door Air Barrier

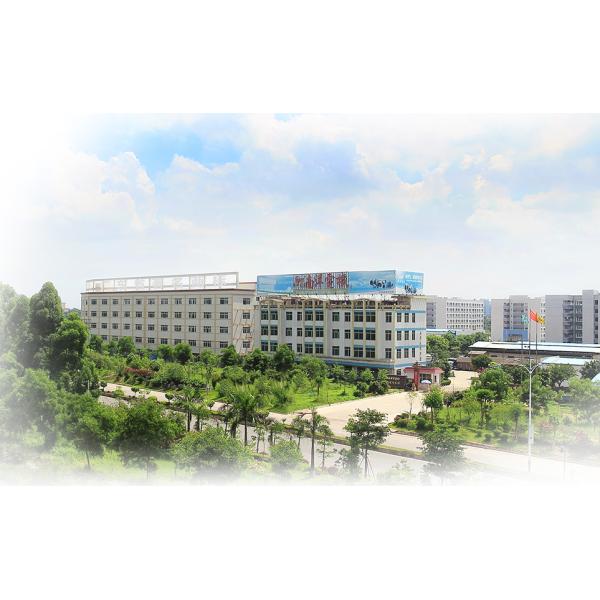

Foshan Nanhai Nanyang Electric Appliance & Motor Co., Ltd (NANYOO)

was set up in March 1987. Over more than three decades of development since its founded ,

it has become a professional scientific and technological enterprise which specializes in the research

and development , production and sales of air curtain, ventilator and fresh air ventilation products .

Metal Casing Precise Motor Centrifugal Flow 14.5m/S 3D Door Air Barrier
