900mm 1200mm 1500mm Explosion Proof Industrial Air Curtain Door
900mm 1200mm 1500mm Explosion Proof Industrial Air Curtain Door
900mm 1200mm 1500mm Explosion Proof Industrial Air Curtain Door
900mm 1200mm 1500mm Explosion Proof Industrial Air Curtain Door
Specifications
Brand Name :
NANYOO
Model Number :
FM-6015GY
Certification :
CE/CB/CCC
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
5000 pcs per month
Delivery Time :
20-35 work days
Packaging Details :
Carton and foam protection
Price :
Negotiated
Product name :
Industrial Door Air Curtain
Type :
Commercial / Industrial air curtain
Voltage :
380V-400V / 220-240V
Fan Type :
Centrifugal Type
length :
1500 mm
Color :
White / Gray
Cover Material :
Metal
Application :
Use for warehouse ,subway , basement
Description

Industrial Air Curtain Door and commercial use for explosion proof door air curtain

for Gate size 900mm / 1200 mm / 1500 mm

CUT OFF COMPLETELY AIRTIGHT

Optimization of centrifugal duct design , up to 326 large air volume , high air pressure , obvious effect of blocking ,

Highlight its efficient performance .

Suitable for many kinds of workshops needs .

900mm 1200mm 1500mm Explosion Proof Industrial Air Curtain Door

INDUSTRIAL AIR CURTAIN FEATURES

1. Metal housing for fire resistance.

2. Powder coating for rust free .

3. New ventilating air duct gives a high pressure , and mouthing height up to 6-8 meters.

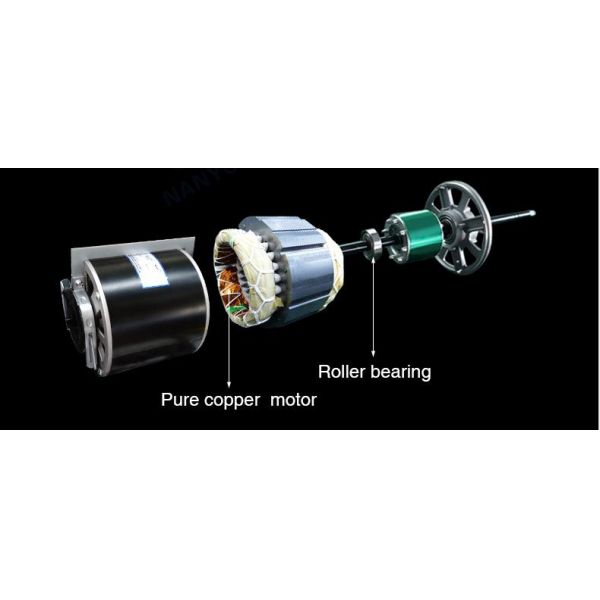

30 years professional technology focus on motor

Higher Efficient Motor / More Energy Saving / Longer Service Life

Using bigger core diameter , longer core lengh , big stator slot dimensions

and greater copper wire and weight to increase efficiency

Under the same air volume and wind pressure , the motor design with lower power ,

provides more energy saving and longer life 900mm 1200mm 1500mm Explosion Proof Industrial Air Curtain Door

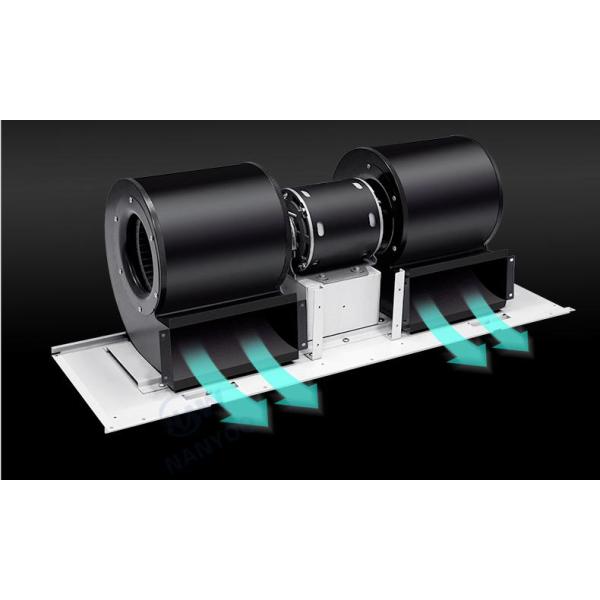

Optimization Of Centrifugal Air Duct Design

Used centrifugal type galvanized plate turbine , Safe and reliable , Durable ,

High speed pure copper motor Scientifically design of impeller clearnance .

Air inlet more smoothly

900mm 1200mm 1500mm Explosion Proof Industrial Air Curtain Door

Refer Specification for Industrial Air Curtain

Model

Voltage/Frequency

 Input Power(w) Air Volume(CFM) Noise(dB) Air Velocity (m/s) Unit Size(mm)
FM-6009GY 220-240V/50HZ 800 3500/2059 ≤ 63 21 914*345*351
FM-6012GY 220-240V/50HZ 1200 4650/2735 ≤ 65 21 1218*345*351
FM-6015GY 220-240V/50HZ 1600 5700/3353 ≤ 66 21 1523*345*351
FM-6009GY 380-400V/50HZ 1100 3750 / 2206 ≤ 65 24 914*345*351
FM-6012GY 380-400V/50HZ 1600 5000 / 2941 ≤ 66 24 1218*345*351
FM-6015GY 380-400V/50HZ 2200 6250 / 3677 ≤ 68 24 1523*345*351
