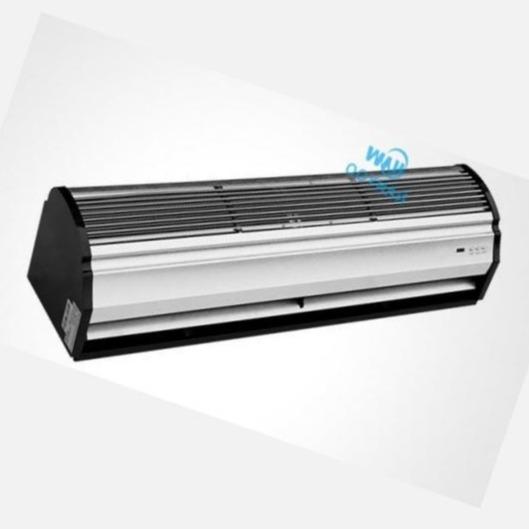

Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains
Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains
Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains
Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains
Specifications
Brand Name :
NANYOO / OME / ODM
Model Number :
FM-1212P
Certification :
CE/CB/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
15000 pcs per month
Delivery Time :
20-30 work days
Packaging Details :
Carton With Foam Protection
Fan Type :
Cross Flow
Mounting Height :
2.3-3 m
Name :
Cross Flow Door Air Curtain with Remote Control
Mounting :
Door/ Window Mount/ Wall and Other
Operating voltage :
220-240V / 50Hz or 110V/60Hz, 110V/50Hz, 220V/60Hz
Color :
Silver, Customer Requirements
Air Flow :
1394 / 2370 CFM
Material :
Aluminium Housing
Size :
1200MM for door width
Application :
Commercial, Shopping Malls, Airports, Restaurant, Warehouses
Description

Door Air Curtain The New Bar Grille Panel And Luxury Air Intake Design Be Able To Maintain A Lasting Clean Body

Model - P is the flagship of our air curtain portfolio, easy maintenance, cleaning and service

Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains

Use fluid mechanics and engineering technology to optimize and upgrade the impeller ,

increase valid wind force, reduce the wind noise and drag coefficient .

On plane, the air friction between the wing surface and fuselage determines the efficiency of the air plance .

Microstructure use a textured surface made of fiberglass, it can reduces friction resistance .

so that the wind turbine blades have better aerodynamic performance .

and improve the service life of wind turbine blades

Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains

Impeller blades around mobility

Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains

PRODUT PARAMETERS

Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains

Model Diameter of Impeller Input Power Air
Velocity		 Air
Volume		 Noise Net
Weight		 Gross
Weight		 Unit Size Carton Size Mounting
Height
(mm) (W) (m/s) (m³/h)/CFM (dB) (KG) (KG) (mm) (mm) (m)
FM-1209P-2(Y) 120 150 11 1780/1047 ≤52 11.5 12.5 900×220×200 955×270×255 2.3-3
FM-1210P-2(Y) 120 180 11 1980/1164 ≤52 12.3 13.5 1000×220×200 1055×270×255 2.3-3
FM-1212P-2(Y) 120 180 11 2370/1394 ≤54 14.3 15.8 1200×220×200 1255×270×255 2.3-3
FM-1215P-2(Y) 120 220 11 2970/1747 ≤55 16.8 18.8 1500×220×200 1555×270×255 2.3-3

INSTALLATION DIAGRAM

Step 1 Remover mounting plate from air curtain fuselage

Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains

Step 2 If installed on concrete and other hard wallk , need postion the mounting fix screw for the mounting plate on the wall

and then fix with M8 expansion screw , the exposed part of the expansion screw is ensured to be in 13-15 mm

Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains

Step 3 If mounted on a wooden board or soft , use STS tapping screw , Fix the mounting plate ot the wall

Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains

Step 4 Installation method of glass door

1 / Use strong nail - free glue direct smear to installation, Solidity, Affordable and artistic

Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains

2 / Make a strut horizontally for fixing the gusset plate of the air curtain machine

Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains

Widely used in Factories, Shops, Restaurants,

Pharmacies, Cold storage, Hotels, Hospitals, Airports, Stations and other environments and all air-conditioned place .

Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains

A trong wind , Really Impede SAVING 90% ENERGY

Mounting Height : 2.3-3

Door Air curtain / Door air barrier also known as Air door, Air Barrier, widely used in Factories, Shops, Restaurants,

Pharmacies, Cold storage, Hotels, Hospitals, Airports, Stations and other environments and all air-conditioned place .

Function Use the blower to generate a powerful airflow, effectively keep the indoor air clean, prevent air circulating

Indoor and Outdoor air, reduce energy consumption, prevent the intrusion of dust, insects and harmful gases

and provide a comfortable working, shopping and leisure environment .

Horizontal 1394 / 2370CFM Bar Grille Panel Cross Flow Door Air Curtains
