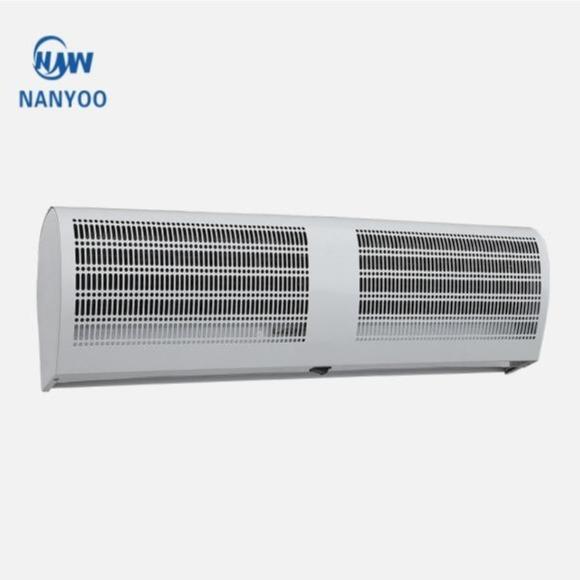

Copper Motor 90% Energy Saving Cross Flow Air Curtain For Various Places
Copper Motor 90% Energy Saving Cross Flow Air Curtain For Various Places
Copper Motor 90% Energy Saving Cross Flow Air Curtain For Various Places
Copper Motor 90% Energy Saving Cross Flow Air Curtain For Various Places
Specifications
Brand Name :
NANYOO / OME
Model Number :
FM-1215A-2(Y)
Certification :
CE/CB/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
15000 pcs per month
Delivery Time :
20-30 work days
Packaging Details :
Carton With Foam Protection
Fan Type :
Cross Flow Fan
Name :
Door Air Curtains / Cross flow air curtain door
Voltage :
110V / 220-240V
Size :
0.9m / 1.0m / 1.2m / 1.5m for options
Application :
Commercial, shopping malls, airports, Restaurant, warehouses
Air Flow :
2970 CFM
Mounting Height :
2.3-3 m
Mounting :
Door / Wall / Window Mount or other
Description

Saving 90% Engery / Closs Flow Door Air Curtains With High Air Flow / Pure Copper Motor

Slim all metal housing with esthetic curved design - Natural Air Curtain

Copper Motor 90% Energy Saving Cross Flow Air Curtain For Various Places

PRODUCTS PARAMETERS

Copper Motor 90% Energy Saving Cross Flow Air Curtain For Various Places

Voltage / Frequency 220 - 240V / 50Hz or 110V / 60HZ , 110V / 50HZ , 220V / 60HZ are all available

Model Diameter of Impeller Input Power Air
Velocity		 Air
Volume		 Noise Net
Weight		 Gross
Weight		 Unit
Size		 Carton
Size		 Mounting
Height
(mm) (W) (m/s) (m³/h)/CFM (dB) (KG) (KG) (mm) (mm) (m)
FM-1209A-2(Y) 120 150 11 1780/1047 ≤45 10.2 12.5 900×220×195 940×265×220 2.3-3
FM-1210A-2(Y) 120 150 11 1980/1164 ≤46 12.3 13.8 1000×220×195 1040×265×220 2.3-3
FM-1212A-2(Y) 120 180 11 2370/1394 ≤48 13.7 15.5 1200×220×195 1240×265×220 2.3-3
FM-1215A-2(Y) 120 250 11 2970/1747 ≤49 16.3 18.5 1500×220×195 1540×265×220 2.3-3

Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating

Keeping indoor with fresh air

Copper Motor 90% Energy Saving Cross Flow Air Curtain For Various Places

Door Air Curtains Working Principle - Saving 90% Engergy

Door Air curtains / Door air barrier also known as Air door , Air Barrier , widely used in Factories , Shops , Restaurants ,

Pharmacies , Cold storage , Hotels , Hospitals , Airports , Stations and other environments and all air-conditioned place .

Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating

Indoor and Outdoor air , reduce energy consumption , prevent the intrusion of dust , insects and harmful gases

and provide a comfortable working , shopping and leisure environment .

Copper Motor 90% Energy Saving Cross Flow Air Curtain For Various Places


INSTALLATION DIAGRAM

Step 1 Remover mounting plate from air curtain fuselage

Copper Motor 90% Energy Saving Cross Flow Air Curtain For Various Places

Step 2 If installed on concrete and other hard wallk , need postion the mounting fix screw for

the mounting plate on the wall and then fix with M8 expansion screw , the exposed part of

the expansion screw is ensured to be in 13-15 mm .

Copper Motor 90% Energy Saving Cross Flow Air Curtain For Various Places

Step 3 If mounted on a wooden board or soft , use STS tapping screw , Fix the mounting plate ot the wall

Copper Motor 90% Energy Saving Cross Flow Air Curtain For Various Places

Step 4 Installation method of glass door

1 / Use strong nail - free glue direct smear to installation , Solidity , Affordable and artistic .

2 / Make a strut horizontally for fixting the gusset plate of the air curtain machine

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly,

convenient and efficient packaging services will be provided.

Copper Motor 90% Energy Saving Cross Flow Air Curtain For Various Places

Company Profile

Foshan Nanhai Nanyang Electrical Machinery & motor Co., Ltd (NANYOO)

was founded in March 1987, and has been developing for 30 years.

It has become a professional and technological enterprise dedicated to the R&D,

manufacture and sales of curtain fans, ventilation fans and fresh air ventilation products.Copper Motor 90% Energy Saving Cross Flow Air Curtain For Various Places
