Single Phase 1500m3/h Heated Air Curtain For Office Public Places
Single Phase 1500m3/h Heated Air Curtain For Office Public Places
Single Phase 1500m3/h Heated Air Curtain For Office Public Places
Single Phase 1500m3/h Heated Air Curtain For Office Public Places
Single Phase 1500m3/h Heated Air Curtain For Office Public Places
Single Phase 1500m3/h Heated Air Curtain For Office Public Places
Specifications
Brand Name :
NANYOO / OEM / ODM
Model Number :
RM-1210N - D / Y
Certification :
CE/CB/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000 pcs per month
Delivery Time :
30-35 work days
Packaging Details :
Carton (K=K)
Product Name :
Heating Air Curtain / Heated Air Curtains
Voltage :
220V Single Phase / 380V Three Phase
Fan Type :
Cross Flow Fan
Fan Material :
Aluminum Blower
Cover Material :
Metal Casing
Width :
Use for 1000MM Door Width
Application :
For Entryway , Door Head , Window , Office Buliding
Color :
White or Natural Color
Heater :
PTC heater & heating tube for options
Control :
Button or Remote Control
Description

Aluminum Blower / PTC Heating Cross Flow Heated Air Curtains Use For

Widely Used In Door / Gate Of Public Places

Single Phase 1500m3/h Heated Air Curtain For Office Public Places

An air curtain is a product which creates a uniform stream of directed air, whether heated or unheated, across an opening to create a barrier inhibiting the transfer of heat and particulate matter from one zone to the other. An appropriately designed system will create this barrier across the entire height and width of the opening to create the effects.

HEATED AIR CURTAIN FEATURE

  • Full Metal Housing with unique design
  • Cross Flow Blower
  • Uniform Forced Airflow

Heated Air Curtains -- Product Parameter

Single Phase 1500m3/h Heated Air Curtain For Office Public Places

110V / 60Hz , 110V / 50Hz , 220V / 60Hz are all available

Model Voltage/ Frequency Input Power Air
Velocity (m/s)		 Air Volume Noise Fuselage Size Mounting Height
(V/Hz) motor (w) Heater
(KW)		 (m/s) (m³/h)/CFM (dB) (mm) (m)
RM-1209N-D/Y 380/50 150 3.5 7-8 1000/588 ≤45 900×220×195 2.5
RM-1210N-D/Y 380/50 180 4.5 7-8 1100/647 ≤45 1000×220×195 2.5
RM-1212N-D/Y 380/50 180 4.5 7-8 1500/822 ≤47 1200×220×195 2.5
RM-1215N-D/Y 380/50 220 5.5 7-8 1800/1059 ≤47 1500×220×195 2.5
RM-1218N-D/Y 380/50 280 8 7-8 2160/1271 ≤49 1800×220×195 2.5
RM-1220N-D/Y 380/50 320 10 7-8 2400/1412 ≤51 2000×220×195 2.5

Invisible air door builds effective barrier / Reduce inside temperature loss . Single Phase 1500m3/h Heated Air Curtain For Office Public Places

Quite Running no disturbing / large air volume less noise / Let your baby have sleep well

Single Phase 1500m3/h Heated Air Curtain For Office Public Places

High Efficiency / Safe PTC Heater

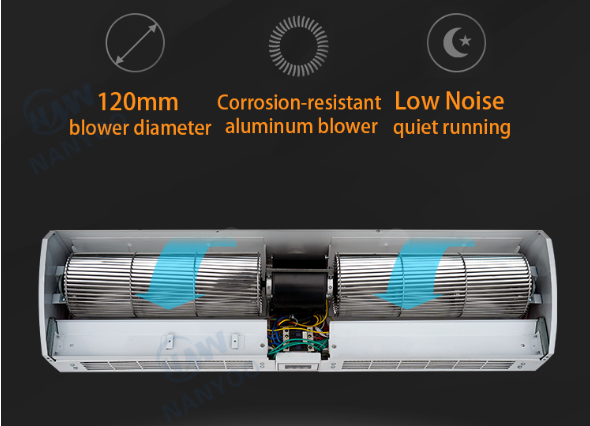

Metal blower - Adopt aluminum blower of diameter 120mm ,

Larger air volume , lower noise , safe and durable , two - speed three - temperature conversion freely

Single Phase 1500m3/h Heated Air Curtain For Office Public Places

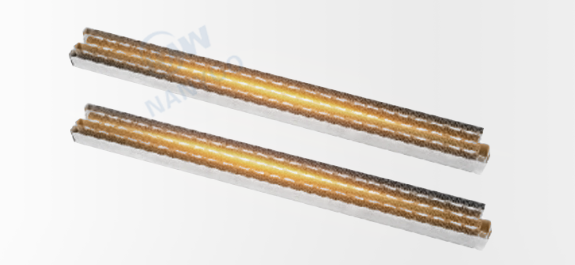

Non-charged PTC heater

PTC heater can be disassembled and cleaned separately , automatic delay when power off ,

PTC heater has high power, large heat , no electricity on the surface safe runing .

Single Phase 1500m3/h Heated Air Curtain For Office Public Places

Remote control applicable to replace manual control

Long distance remote easily control

Single Phase 1500m3/h Heated Air Curtain For Office Public Places

How to select appropriate air curtain?

There are many factors that we have to consider when selecting an air curtain, some of which are as follows:
1. Door height and width
2. Door structure
3. Noise level
4. Air curtain size
5. External wind
6. Power consumption
7. Air curtain design and appearance
8. Building static pressure
9. Ambient temperature

What is the main functions of Air curtain?
1. Heat air ccurtain
2. Isolate the smell
3. Energy saving

4. Dust-proof, insect prevention

Contact us to have more professional answers.
