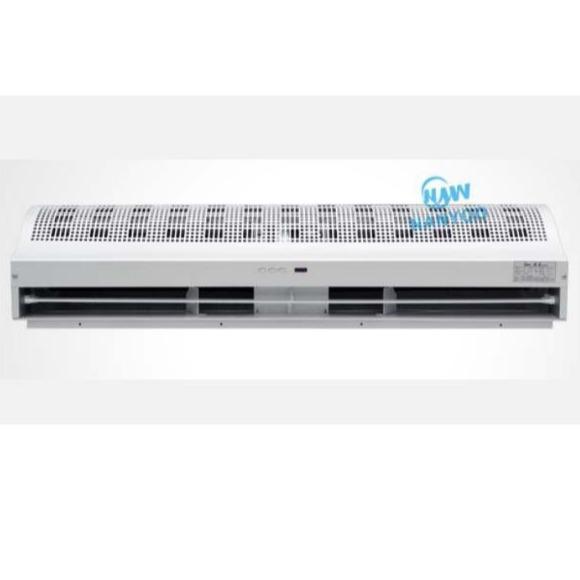

Slim Metal Esthetic 2370m3/H Curved Cross Flow Door Air Curtains
Slim Metal Esthetic 2370m3/H Curved Cross Flow Door Air Curtains
Slim Metal Esthetic 2370m3/H Curved Cross Flow Door Air Curtains
Slim Metal Esthetic 2370m3/H Curved Cross Flow Door Air Curtains
Slim Metal Esthetic 2370m3/H Curved Cross Flow Door Air Curtains
Slim Metal Esthetic 2370m3/H Curved Cross Flow Door Air Curtains
Slim Metal Esthetic 2370m3/H Curved Cross Flow Door Air Curtains
Slim Metal Esthetic 2370m3/H Curved Cross Flow Door Air Curtains
Specifications
Brand Name :
NANYOO or OEM / ODM
Model Number :
FM- 1212X
Certification :
CB
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
10000 units per month
Delivery Time :
30-35 work days
Packaging Details :
Carton With Foam Protection
Product name :
Cross flow commerial door air curtains
Fan Type :
Cross Flow Fan
Voltage :
110V / 220V
Material :
Metal Casing
Color :
Silver / White
Noise :
44db
Size :
90cm/100cm/120cm/150cm/180cm/200cm
Operation :
Remote control and button control
Motor :
Fine copper motor warranty for 5 years
Function :
Adjustable air deflector / High efficient motor / Quiet wind wheel
Mounting :
Ceiling Mount
Description

Cross Flow Door Air Curtains Slim All Metal Housing With Esthetic Curved Design

FEATURE

Slim all metal housing with esthetic curved design

Sturdy metal housing, smooth and bright apraying for a variety of applications

Metal casing with durable powder spray coating / Cross fan and wheel

Multiple width available 900 , 1000 , 1200 , 1500 , 1800 and 2000mm

Simple Design Cross Flow Door Air Curtains - Model X

SAVING 90% ENERGY , SAVING YOUR MONEY

Slim Metal Esthetic 2370m3/H Curved Cross Flow Door Air Curtains

SPECIFICATION

Slim Metal Esthetic 2370m3/H Curved Cross Flow Door Air Curtains

Voltage / Frequency: 220-240V / 50Hz, or 110V / 60Hz, 110V / 50Hz, 220V / 60Hz are all available

Model Diameter of Impeller Input Power Air
Velocity		 Air
Volume		 Noise Net
Weight		 Gross
Weight		 Unit
Size		 Carton
Size		 Mounting
Height
(mm) (W) (m/s) (m³/h)/CFM (dB) (KG) (KG) (mm) (mm) (m)
FM-1209X-2(Y) 120 150 11 1780/1047 ≤43 11.5 13.0 900×215×200 960×270×250 2.3-3
FM-1210X-2(Y) 120 150 11 1980/1164 ≤43 12.1 13.8 1000×215×200 1060×270×250 2.3-3
FM-1212X-2(Y) 120 180 11 2370/1394 ≤44 14.5 16.5 1200×215×200 1260×270×250 2.3-3
FM-1215X-2(Y) 120 220 11 2970/1747 ≤46 17.2 19.7 1500×215×200 1560×270×250 2.3-3
FM-1218X-2(Y) 120 280 11 3560/2094 ≤50 20.0 23.0 1800×215×200 1860×270×250 2.3-3
FM-1220X-2(Y) 120 320 11 3960/2329 ≤51 21.5 25.0 2000×215×200 2060×270×250 2.3-3

Working Principle Of Air Curtain

Slim Metal Esthetic 2370m3/H Curved Cross Flow Door Air Curtains

Use for Shopping mall / Hotel / Subway / Metro Slim Metal Esthetic 2370m3/H Curved Cross Flow Door Air Curtains

Slim Metal Esthetic 2370m3/H Curved Cross Flow Door Air Curtains

Company Profile

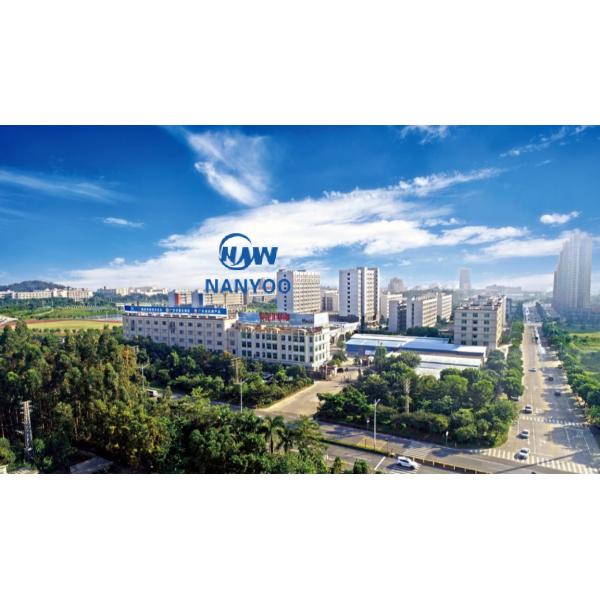

Founded in 1987 , Foshan Nanhai Nanyang Electric Appliance& Motor Co.,Ltd , (NANYOO)

has specialized in the manufacturing ,Marketing and R&D of Air Curtains , Inline Fans , HRV, Cabinet Fans

and Air Purifier for over 30 years , and become a leading professional science and technology enterprise.

Especially widely used in the door position of the wind curtain of public places manufacturers.

NANYOO has passed ISO9001 international quality management system and ISO14001 environmental management system certification. The products have passed CCC, CE, CB, RoHS and SAA certification.

Slim Metal Esthetic 2370m3/H Curved Cross Flow Door Air Curtains

If you have any questions about our products

Please contact us and we will give you some satisfactory reply
