99.5% Purification Fresh Air Cleanroom Ventilation Duct Fan
99.5% Purification Fresh Air Cleanroom Ventilation Duct Fan
99.5% Purification Fresh Air Cleanroom Ventilation Duct Fan
99.5% Purification Fresh Air Cleanroom Ventilation Duct Fan
99.5% Purification Fresh Air Cleanroom Ventilation Duct Fan
99.5% Purification Fresh Air Cleanroom Ventilation Duct Fan
Specifications
Brand Name :
NANYOO
Model Number :
DHT10-23 X 3
Certification :
CE / CB / CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
12000 pcs per month
Delivery Time :
20-35 work days
Packaging Details :
Carton
Voltage :
220V-240V/50HZ, 110V/50HZ
Blade material :
Metal Casing
Mounting :
Ventilation Duct Fan,Wall Fan,Ceiling Fan
Type :
duct fan,fan ventilation
Air volume :
76 CFM-230 CFM
Power :
36W-43W
Funtion :
With two layers of HEPA filter
Noise :
Low noise / 22 dB
Description

NEW VENTILATION DUCT FAN WITH FILTER CLEANROOM SPACE , PURIFICATION FILTRATION RATE MORE OVER 99.5%

24 hours non-stop fresh air injection

The air supply method is flexible and varied .

22 dB super quiet uning design ,Enjoy a quiet and comfortable life .

SPECIFICATION

Voltage / Frequency 220 - 240V / 50HZ , Or 110V / 60HZ ,110V / 50HZ , 220V/ 60HZ are all available

Model Input Power aStatic Pressure Air Volume Noise Net Weight Unit Size Speed Position
(W) (Pa) (㎥/h)CFM (dB) (KG) (MM) high speed
DHT10-23x3 43 193 230/135 26 11 630*495*195 High speed
36 132 130/76 22 11 630*495*195 Low speed
DHT10-31x3 45 235 310/182 28 11 630*495*195 High speed
38 182 230/135 26 11 630*495*195 Low speed
DHT15-45x3 57 216 450/265 66 13 645*495*255 High speed
47 191 350/206 29 13 645*495*255 Low speed
DHT15-55x3 79 227 550/323 36 13 645*495*255 High speed
57 208 450/265 33 13 645*495*255 Low speed
DHT20-62x3 115 262 720/423 40 14 625*495*295 High speed
87 246 620/365 38 14 625*495*295 Low speed
DHT20-86x3 142 263 800/470 43 14 625*495*295 High speed
102 245 700/412 40 14 625*495*295 Low speed
DHT20-96x3 156 290 920/541 46 14 625*495*295 High speed
117 285 820/482 43 14 625*495*295 Low speed

ENJOY YOUR LIFE / ENJOY FRESH AIR

Say goodbye to second -hand air pollution

Closed windows for a long time in the room lead to CO2 exceeding the standard feel oppressed ,

the new duct fan bring in the fresh air from outside ,keeping fresh air indoor and ventilation .

99.5% Purification Fresh Air Cleanroom Ventilation Duct Fan

99.5% Purification Fresh Air Cleanroom Ventilation Duct Fan

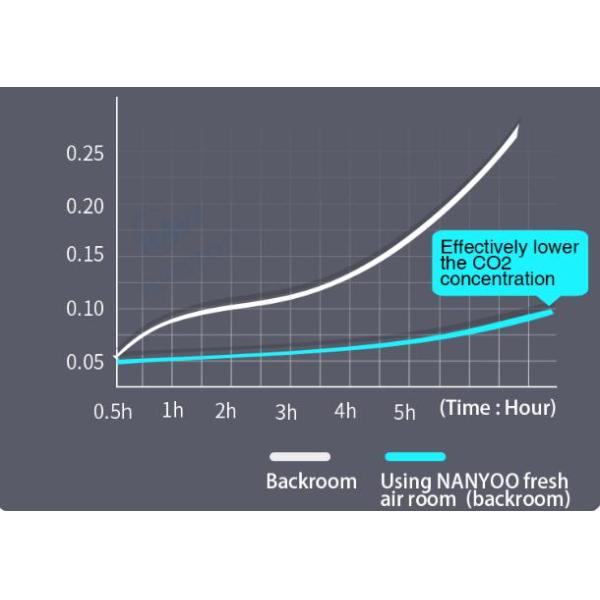

INDOOR CO₂ RATE OF DECAY VISUAL COMPARSION CHART

(CO₂ CONCENTRATION PERCENT )

Using NANYOO new duct fan / fresh air room suitable for Backroom / Cloakroom / Common room etc.

99.5% Purification Fresh Air Cleanroom Ventilation Duct Fan

DOUBLE - LAYER FILTER

Optional install two layers HP high efficiency filters or two layers full-effective mulriple filters filtration rate more over 99.5%

1 ) FRE filter(G4) filter element

Anti-mosquito , Graved , Cotton fibre , Hair

Washable ,It should be cleared every 1 - 3 months , It depends on the local air quality .

2 ) HEPA (H11) filter net

Dust , Bacteria

Do not wash ,Use vacuum cleaners or replace , it change every 3 - 6 months .

99.5% Purification Fresh Air Cleanroom Ventilation Duct Fan
