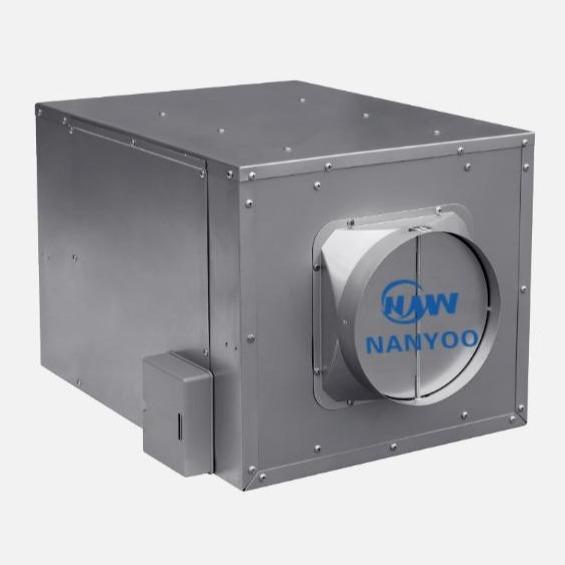

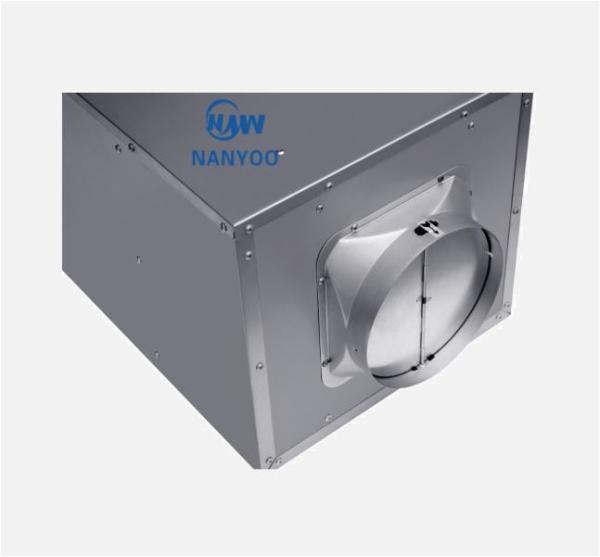

One Direction 21W Silent 100m3/H Square Duct Fan
One Direction 21W Silent 100m3/H Square Duct Fan
One Direction 21W Silent 100m3/H Square Duct Fan
One Direction 21W Silent 100m3/H Square Duct Fan
One Direction 21W Silent 100m3/H Square Duct Fan
One Direction 21W Silent 100m3/H Square Duct Fan
Specifications
Brand Name :
NANYOO / OEM / ODM
Model Number :
DPT10-12B
Certification :
CE / CB / CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
20000 pcs per Month
Delivery Time :
30-35 work days
Packaging Details :
As per factory standard
Type :
Centrifugal Fan,duct fan,fan ventilation
Voltage :
220V / 50hz ,110-230V,60hz
Electric current type :
AC
Material :
Metal
Mounting :
Duct Fan,Ceiling Fan
Air volume :
100 m3/h
Power :
21W
After-sales service provided :
Online support
Description

One Direction - Square Duct Fans Intake And Outlet In The Same Line,Suitable For Different Occasions

FEATURES

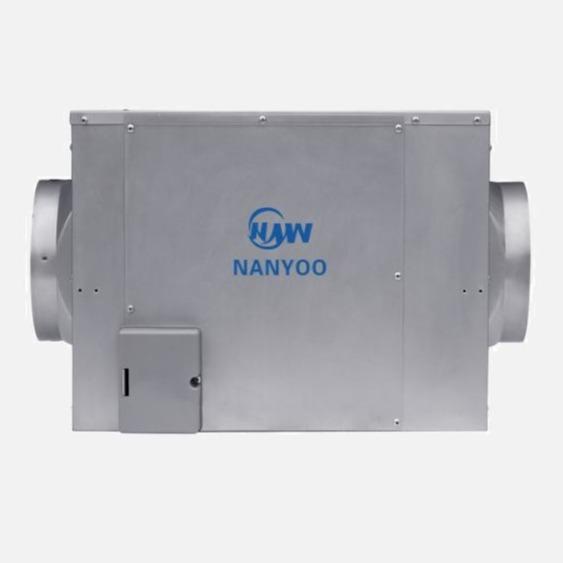

Intake and outlet in the same line,suitable for different occasions.

Excellent motor,energy saving,silence running stable quality&long life

Ventilation Design And Selection

The required air volume of ventilation depends on the usage situation,created contamination within the room and

amount of heat needs to be extracted,calculated in various criteria and ways with following equation and tables

Required product QTY = Resonable air volume ( m³/ h ) ÷ Selected models of air volume values ( m³/ h )

Remark : Calculation of the required air volume has two methods as below ( m³ / h )

1. Using air exchange to calculate

V=RV*N

RV: room volume (m³)

N: number of air exchange hours(n/h)

2. Using per capita air volume to calculate

V=PV*P

PV:The required air volume for each person hours(m³/h)

P:Number of people

Ventilation Duct Fan Perfomance Chart

One Direction 21W Silent 100m3/H Square Duct Fan

Ventilation Duct Fan Size Description

Model A B C D E H I R P Q
DPT10-12B 340 298 95 240 65 68 210 100 200 285
DPT10-24B 340 298 95 240 65 68 210 100 200 285
DPT15-32B 340 298 150 240 75 53 120 120 240 285
DPT15-42B 390 348 150 270 75 58 140 140 280 315
DPT20-54B 420 378 200 340 65 64 140 140 280 385
DPT20-54C 490 448 200 370 65 58 160 160 320 415
DPT20-65B 520 478 200 400 65 74 183 183 365 445
DPT20-75B 520 478 200 400 65 74 183 183 365 445
DPT25-76B 590 548 250 400 75 74 190 190 380 445
DPT25-76C 590 548 250 400 75 74 190 190 380 445
DPT25-76D 590 548 250 400 75 74 190 190 380 445
DPT25-76E 590 548 250 400 75 74 190 190 380 445

One Direction 21W Silent 100m3/H Square Duct Fan

Specification

Voltage / Frequency 220-240V / 50Hz or 110V / 0Hz , 110V / 50Hz , 220V / 60Hz are all available

Model Duct Diameter Power Air
Volume		 Static Pressure Noise Speed Velocidad Net
Weight		 Gross
Weight		 Usable Area Carton
Size
(W) (m³/h)/CFM (Pa) (dB) rpm (KG) (KG) (㎡) (mm)
DPT10-12B Φ100 21 100 80 20 1180 6.2 6.6 4-7 485*325*270
DPT10-24B Φ100 52 180 160 23 1800 6.2 6.6 7-12 485*325*270
DPT15-32B Φ150 40 360 132 42 1050 7.7 8.3 12-22 512*322*317
DPT15-42B Φ150 100 500 167 49 1250 11.2 11.8 25-28 570*360*355
DPT20-54B Φ200 135 770 200 47 800 12.6 13.2 28-35 585*430*355
DPT20-54C Φ200 155 920 240 48 950 17.0 17.7 35-40 640*450-385
DPT20-65B Φ200 220 1200 360 48 1100 20.3 21.1 40-50 675*480*450
DPT20-75B Φ250 320 1500 380 49 1250 20.3 21.1 50-60 675*480*450
DPT25-76B Φ250 350 1700 420 53 1050 23.0 24.1 60-70 765*495*455
DPT25-76C Φ250 400 1900 430 54 1150 23.0 24.1 70-80 765*495*455
DPT25-76D Φ250 500 2100 450 56 1300 23.0 24.1 80-90 765*495*455
DPT25-76E Φ250 550 2300 480 58 1360 23.0 24.1 90-100 765*495*455

One Direction 21W Silent 100m3/H Square Duct Fan
