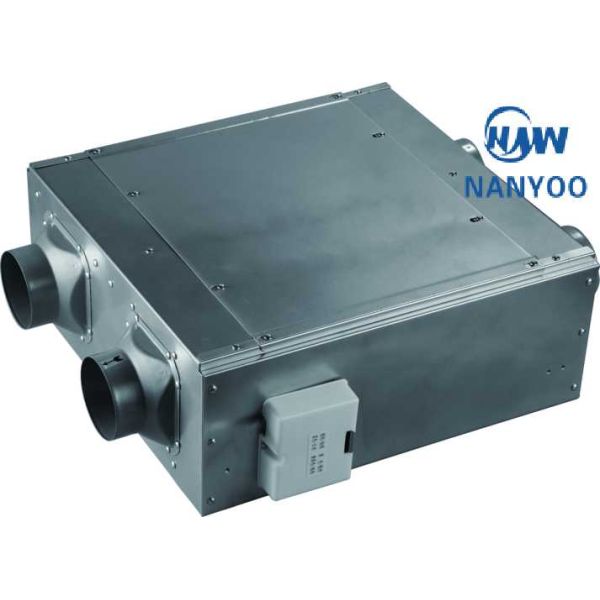

Dual Direction 100CMH Ventilation Rectangular Duct Fan
Dual Direction 100CMH Ventilation Rectangular Duct Fan
Dual Direction 100CMH Ventilation Rectangular Duct Fan
Dual Direction 100CMH Ventilation Rectangular Duct Fan
Dual Direction 100CMH Ventilation Rectangular Duct Fan
Dual Direction 100CMH Ventilation Rectangular Duct Fan
Specifications
Brand Name :
NANYOO / OEM / ODM
Model Number :
DUT10-24(D)
Certification :
CE / CB / CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15000 per month
Delivery Time :
30-35 work days
Packaging Details :
As per factory standard
Name :
Square Ventilation Duct Fans
Type :
duct fan,fan ventilation
Voltage :
220V,110-230V,60hz ，50hz
Electric current type :
AC
Blade material :
Mile Steel / Aluminum Alloy / Stainless Steel
Mounting :
Duct Fan,Free Standing,Wall Fan,Ceiling Fan
Air volume :
100 -180 CFM
Power :
85 -105 W
Description

Square Ventilation Duct Fans-Dual Direction Thin Body Satisfies The Installation In Different Places

FEATURES

Thin body satisfies the installation in different places

Intake and outlet work together

With filter for enjoying the fresh air

Dual Direction 100CMH Ventilation Rectangular Duct Fan

PRODUCT DESCRIPTION / SPECIFICATION

Model A B C D E F G H I J X J K
DUT10-24(D) 500 480 420 528 240 100 65 38 103 500X500 201
DUT15-32(D) 500 480 420 528 243 150 74 38 120 500X500 241
DUT15-42(D) 600 540 520 588 270 150 74 38 140 600X600 281
DUT20-54(D) 690 750 733 677 373 200 65 23 156 322X311 322
DUT25-66(D) 800 822 843 748 403 250 75 23 190 400X340 437
DUT25-76(D) 800 822 843 748 403 250 75 23 190 400X340 437

Dual Direction 100CMH Ventilation Rectangular Duct Fan

Model A B C D E F x F G x G
DUT30-86(D) 900 1180 1223 818 588 396 x 331 548 x 386
DUT40-87(D) 900 1180 1223 818 588 548 x 386

548 X 386

Model H I J K x K L x L M N
DUT30-86(D) 26 218 175 440 x 380 440 x 190 437 48
DUT40-87(D) 26 218 175 440 x 380 440 x 190 437 48

Dual Direction 100CMH Ventilation Rectangular Duct Fan

Voltage/Frequency 220-240V/50Hz , or 110V/60Hz , 110V/50Hz , 220V/60Hz are all available

Dual Direction 100CMH Ventilation Rectangular Duct Fan

Model Power Air
Volume		 Static Pressure Noise Net
Weight		 Gross
Weight		 Carton
Size		 Remark
(W) (m³/h)/CFM (Pa) (dB) (KG) (KG) (mm)
DUT10-24(D) 105/85 180/106 100/59 210/110 45-36 18.9 20.1 666 x 570 x 260 Without Filter (With Filter)
DUT15-32(D) 70/59 360/212 250/147 160/130 50-39 24.1 25.5 666 x 570 x 300 Without Filter (With Filter)
DUT15-42(D) 165/155 500/294 400/235 210/190 52-44 17.9 29.5 766 x 629 x 340 Without Filter (With Filter)
DUT20-54(D) 420/400 1000/588 800/470 320/270 58-54 39.2 41 868 x 840 x 395 Without Filter (With Filter)
DUT25-66(D) 700/590 1500/882 1200/706 350/320 60-58 53.4 58.7 948 x 839 x 380 Without Filter (With Filter)
DUT25-76(D) 960/650 2000/1176 1500/882 360/350 65-61 53.4 58.7 948 x 839 x 380 Without Filter (With Filter)
DUT30-86(D) 1470/850 2600/1529 1700/1000 440/305 82-62 53.4 58.7 948 x 839 x 380 Without Filter (With Filter)
DUT40-87(D) 2400/2180 3800/2235 2800/1647 460/330 90-82 53.4 58.7 948 x 839 x 380 Without Filter With Filter)
