Silence Square Duct Fans
Silence Square Duct Fans
Silence Square Duct Fans
Silence Square Duct Fans
Specifications
Brand Name :
NANYOO / OEM / ODM
Model Number :
DPT10 / 15 / 20 /25
Certification :
CE / CB / CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
20000 pcs per Month
Delivery Time :
30-35 work days
Packaging Details :
As per factory standard
Type :
Inline duct fan / duct fan ventilation
Electric current type :
AC
Voltage :
220V / 50hz ,110V / 60hz
Material :
Metal Housing / Fashion design
Mounting :
Duct Fan, Inline fan
Air volume :
100 - 2300 m3 / h
Power :
21 - 550 W
application :
For a variety of space - bedroom ,living room , schoolroom , kids room so on
Description

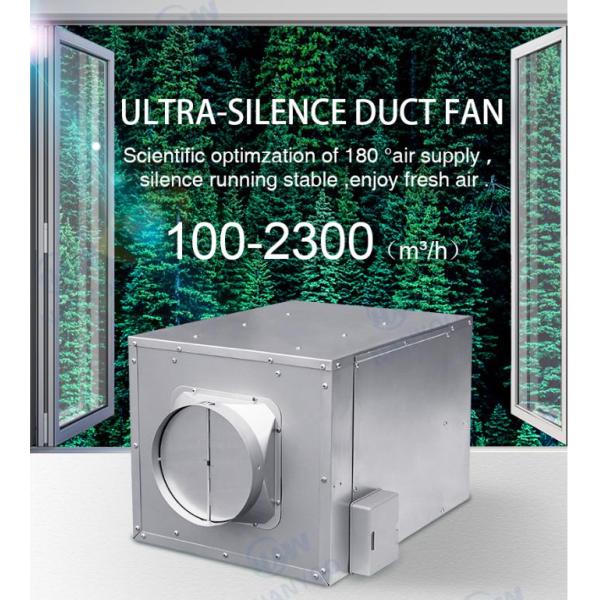

One Direction - Square Duct Fans Eesy Installation / Fresh Air / Oxygen - Rich / Silence

Fresh indoor environment

Fresh air / oxygen - rich / silence

Closed windows for a long time in the room lead to CO2 exceeding the standard ,feel oppressed ,

the new duct fan bring in the fresh air from outside , keeping fresh air indoor and ventilation

Silence Square Duct Fans

Silence Square Duct Fans

Product Structure Parsing

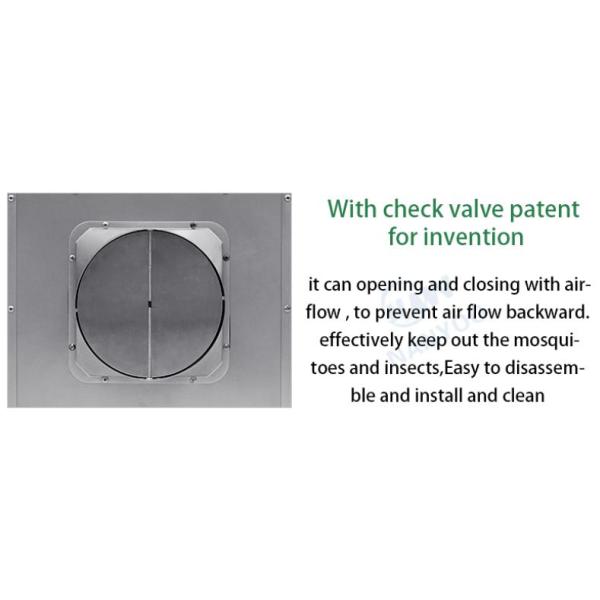

With check valve patent for invention , it can opening and closing with airflow ,to prevent air flow backward .

effectively keep out the mosquitoes and insects , Easy to disassemble and install and clean .

Silence Square Duct Fans

Silence Square Duct Fans

Silence Square Duct Fans

Silence Square Duct Fans

For a variety of space - bedroom ,living room , schoolroom , kids room so on

Silence Square Duct Fans

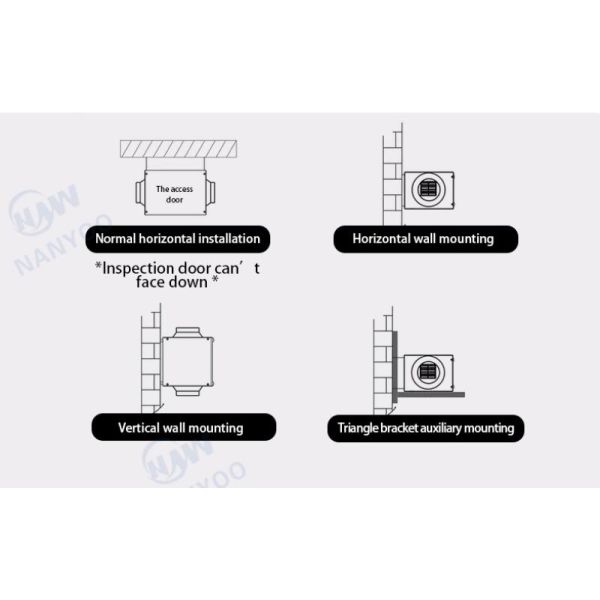

Easy Installation

Silence Square Duct Fans

Ventilation Duct Fan Size Description

Model A B C D E H I R P Q
DPT10-12B 340 298 95 240 65 68 210 100 200 285
DPT10-24B 340 298 95 240 65 68 210 100 200 285
DPT15-32B 340 298 150 240 75 53 120 120 240 285
DPT15-42B 390 348 150 270 75 58 140 140 280 315
DPT20-54B 420 378 200 340 65 64 140 140 280 385
DPT20-54C 490 448 200 370 65 58 160 160 320 415
DPT20-65B 520 478 200 400 65 74 183 183 365 445
DPT20-75B 520 478 200 400 65 74 183 183 365 445
DPT25-76B 590 548 250 400 75 74 190 190 380 445
DPT25-76C 590 548 250 400 75 74 190 190 380 445
DPT25-76D 590 548 250 400 75 74 190 190 380 445
DPT25-76E 590 548 250 400 75 74 190 190 380 445

Silence Square Duct Fans

Specification

Voltage / Frequency 220-240V / 50Hz or 110V / 0Hz , 110V / 50Hz , 220V / 60Hz are all available

Model Duct Diameter Power Air
Volume		 Static Pressure Noise Speed Velocidad Net
Weight		 Gross
Weight		 Usable Area Carton
Size
(W) (m³/h)/CFM (Pa) (dB) rpm (KG) (KG) (㎡) (mm)
DPT10-12B Φ100 21 100 80 20 1180 6.2 6.6 4-7 485*325*270
DPT10-24B Φ100 52 180 160 23 1800 6.2 6.6 7-12 485*325*270
DPT15-32B Φ150 40 360 132 42 1050 7.7 8.3 12-22 512*322*317
DPT15-42B Φ150 100 500 167 49 1250 11.2 11.8 25-28 570*360*355
DPT20-54B Φ200 135 770 200 47 800 12.6 13.2 28-35 585*430*355
DPT20-54C Φ200 155 920 240 48 950 17.0 17.7 35-40 640*450-385
DPT20-65B Φ200 220 1200 360 48 1100 20.3 21.1 40-50 675*480*450
DPT20-75B Φ250 320 1500 380 49 1250 20.3 21.1 50-60 675*480*450
DPT25-76B Φ250 350 1700 420 53 1050 23.0 24.1 60-70 765*495*455
DPT25-76C Φ250 400 1900 430 54 1150 23.0 24.1 70-80 765*495*455
DPT25-76D Φ250 500 2100 450 56 1300 23.0 24.1 80-90 765*495*455
DPT25-76E Φ250 550 2300 480 58 1360 23.0 24.1 90-100 765*495*455
