Fillister Chamfer Air Duct Commercial Heating Recovery Ventilator
Fillister Chamfer Air Duct Commercial Heating Recovery Ventilator
Fillister Chamfer Air Duct Commercial Heating Recovery Ventilator
Fillister Chamfer Air Duct Commercial Heating Recovery Ventilator
Fillister Chamfer Air Duct Commercial Heating Recovery Ventilator
Fillister Chamfer Air Duct Commercial Heating Recovery Ventilator
Specifications
Brand Name :
NANYOO / OME / ODM
Model Number :
NYDZ-QR-2500Y
Certification :
CE/CB/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 units per month
Delivery Time :
30-35 work days
Packaging Details :
As per factory standard or Negotiated
Material :
Metal with filter
Voltage :
220V-240V -380V
Static Pressure :
H202 / L 161 pa
Air Volume :
H2500 / L1650 CFM
Heating :
70%
Motor warranty :
Copper motor warranty for 5 years
Application :
Subway / Shipping mall / Super -market etc.
Funtion :
Super motor, sufficient air pressure and air volume
Description

Commercial Heating Recovery Ventilator - Fillister Chamfer Air Exist Easily Installation Of Air Duct

Fillister Chamfer Air Duct Commercial Heating Recovery Ventilator

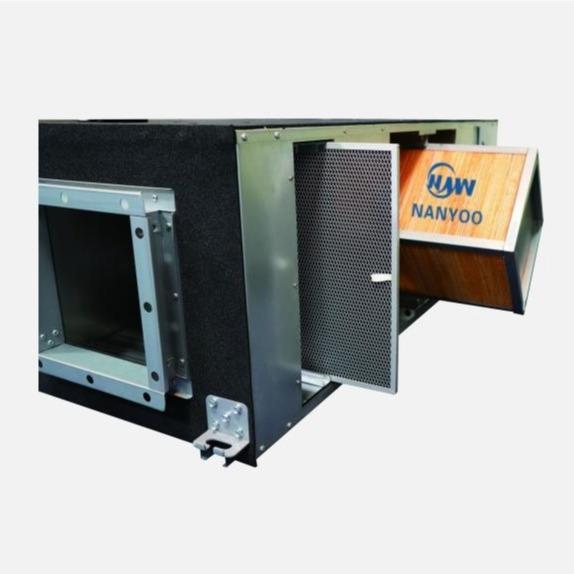

Convenient to change of motor and filter

Fillister Chamfer Air Duct Commercial Heating Recovery Ventilator

Fillister Chamfer Air Duct Commercial Heating Recovery Ventilator

FEATURES

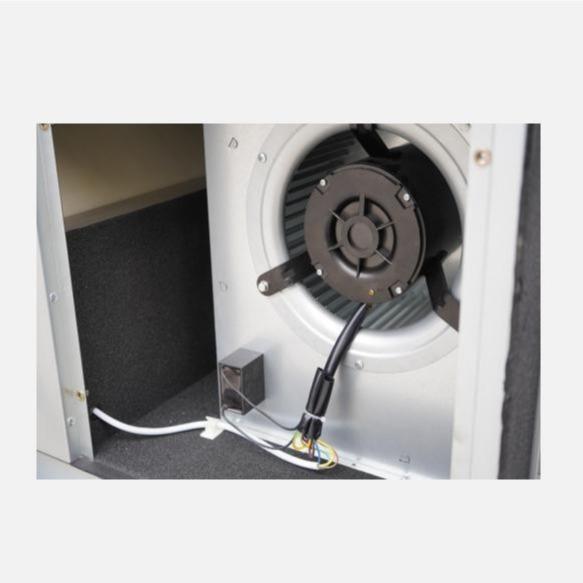

Super motor , low noise , with overload protection device
Fillister chamfer air exist , easily installation of air duct .
Independent maintenance door at side panel , convenient to change of motor and filter

Optimized air duct design to have sufficient air pressure and air volume .

External insulation cotton and internal equipped with drain pan to prevent from condensing water .

Internal acoustic cotton to reduce noise level .

Hermitical design to prevent from air leakage and turbulent flow

Commerial Heating Recovery Ventilators Dimensions
Model A B C D E F G H I J K
NYDZ-QR-2500Y 1556 1506 1270 1300 518 715 290 480 352 290 100
NYDZ-QR-3000Y 1556 1506 1270 1300 518 715 290 480 352 290 100
NYDZ-QR-4000 1864 1738 1400 1350 593 675 295 377 597 438 100
NYDZ-QR-5000 2076 1950 1700 1649 750 825 265 360 597 438 102
NYDZ-QR-6000 2076 1950 1700 1649 750 825 295 384 597 438 102
Fillister Chamfer Air Duct Commercial Heating Recovery Ventilator
Commerial Heating Recovery Ventilators - Specification
110V/60Hz , 110V/50Hz , 220V/60Hz are all available
Model Voltage/
Frequency (V/HZ)		 Input Power (W) Ampere (A) Air Volume (m³/h)/CFM Static Pressure (Pa) Exchange Rate Heating (%) Noise (dB)
H L H L H L H L Cool(%) Heat (%) H L H L
NYDZ-QR-2500Y 220/240/380V/50hz 1150 730 5.5 3.48 2500 1650 202 161 63/68 60/71 67 70 ≤58 ≤53
NYDZ-QR-3000Y 220/240/380V/50hz 1180 750 5.77 3.65 3000 2050 215 172 65/69 62/73 67 70 ≤59 ≤54
