OEM White Metal UV Indoor Air Curtain For Cold Storage
OEM White Metal UV Indoor Air Curtain For Cold Storage
OEM White Metal UV Indoor Air Curtain For Cold Storage
OEM White Metal UV Indoor Air Curtain For Cold Storage
OEM White Metal UV Indoor Air Curtain For Cold Storage
OEM White Metal UV Indoor Air Curtain For Cold Storage
Specifications
Brand Name :
NANYOO or OEM
Model Number :
UV-12-900/1200/1500
Certification :
CE / CB / CCC
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiated
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
13000 per month
Delivery Time :
30-35 work days
Packaging Details :
Carton With Foam Protection
Type :
UV Door Air Barrier
Materials :
Matel Housing
Light :
Indoor UV germicidal lamps
Impeller :
Aluminum Impeller
Voltage :
AC / 220V
Function :
Disinfection and discharge of indoor air
Color :
White color
Mounting Height :
2.5 - 3 M
Motor :
Self-developed motor warranty for 5 years
Applications :
Hospital / cold storage / Hotels etc.
Description

Wall Mounted Metal UV Door Air Curtain Machine Indoor Air For Cold Storage

SPECIFICATION

Model Voltage /Frequency Input Power (W) Air Velocity Air Volume Noise Net Weight Unit Size UV Power UV light Intensity
(V/HZ) UV ON UV OFF (M/S) (㎥/h)CFM (dB) (kg) (mm) (W) (uw/C㎡)
High Low High Low High Low High Low High Low Distance of 1 m
FM-1209-UV1/2Y4 220/50 220 175 158 102 11 8.5 1780/1047 1375/809 ≤46 ≤43 16 900*234*266 37 120
FM-1212-UV1/2Y4 220/50 248 179 220 142 11 8.5 2370/1394 1830/1076 ≤48 ≤45 20 1200*234*266 40 135
FM-1215-UV1/2Y4 220/50 298 298 274 180 11 8.5 2970/1747 2230/1312 ≤51 ≤47 24 1200*234*266 55 170

FEATURE

  • High power ozone free ultraviolet lamp can eliminate bacteria, interfere RNA replication and inactivate protein.
  • Ultraviolet rays destroy the DNA and RNA of microorganisms and viruses, making them lose their reproductive capacity and die, thus achieving the effect of disinfection and sterilization.
  • The strong wind of wind curtain can effectively block the invasion of outdoor harmful substances.

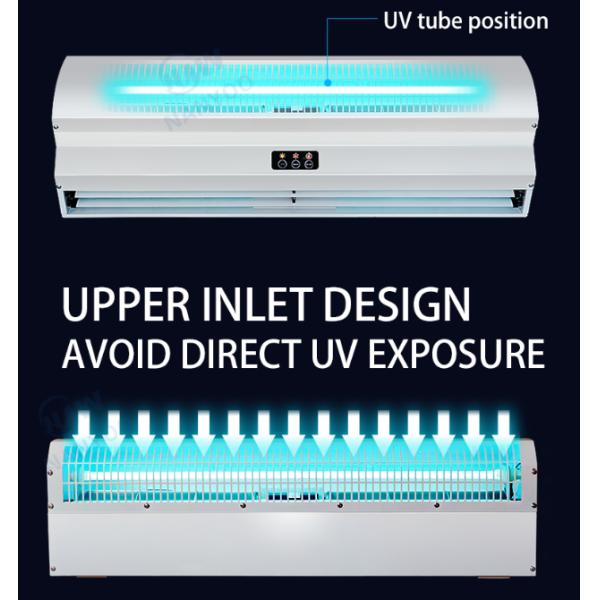

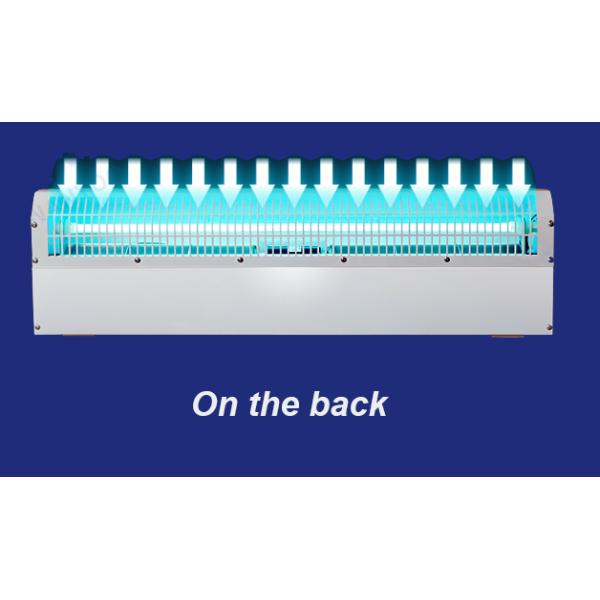

  • The ultraviolet lamp has a built-in air curtain, and the internal structure design has a blocking effect to avoid direct irradiation.

PROFESSIONAL CORE MOTOR DESIGH WITH STRONG SENSE OF TECHNOLOGY

Use a big core diameter , longer core length , big stator slot dimensions and thicker copper diameter .

EFFECT DIAGRAM ( WORKING PRINCIPLE )

OEM White Metal UV Indoor Air Curtain For Cold Storage

GREATER AIR VOLUME , WITH EXQUISITE APPEARANCE

MOUNTING HEIGHT 2.5 - 3 M

WIND SPEED DECAY SLOWLY , PARTITION GUARANTEED >>

OEM White Metal UV Indoor Air Curtain For Cold Storage

SUITABLE FOR ALL KINDS OF ENVIRONMENTAL

EXAMPLE - Hospital / Super -market / Catering Services / Office / Home etc.

OEM White Metal UV Indoor Air Curtain For Cold Storage
