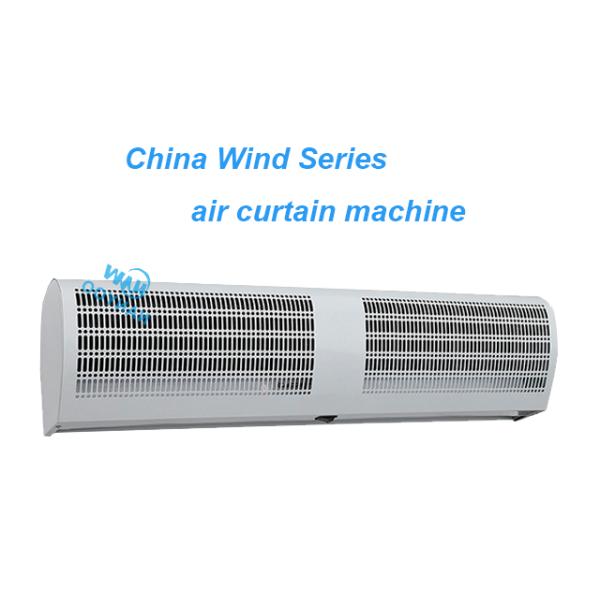

50HZ 1164CFM 46dB Indoor Air Curtains For Hospital
50HZ 1164CFM 46dB Indoor Air Curtains For Hospital
50HZ 1164CFM 46dB Indoor Air Curtains For Hospital
50HZ 1164CFM 46dB Indoor Air Curtains For Hospital
50HZ 1164CFM 46dB Indoor Air Curtains For Hospital
50HZ 1164CFM 46dB Indoor Air Curtains For Hospital
Specifications
Brand Name :
NANYOO
Model Number :
FM-1210A
Certification :
CE/CB/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
15000 pcs per month
Delivery Time :
20-30 work days
Packaging Details :
Carton With Foam Protection
Name :
Door Air Curtains
Type Fan :

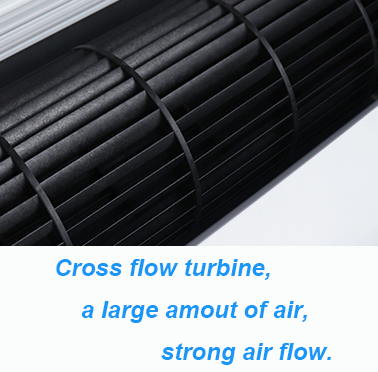

Closs Flow Fan
Input power :
150 W
Diameter of Impeller :
120
Mounting Height :
2.3-3 m
Operating voltage :
110V-220V / 50HZ & 60HZ
Size :
0.9m / 1.0m / 1.2m /1.5m
Mounting :
Door / Wall / Window Mount or other
Application :
Commercial, Shopping Malls, Airports, Restaurant, Warehouses
Color :
White Color
Description

1164CFM 46dB Fresh Air Cross Flow Indoor Air Curtains For Indoor Hospital

Cross Flow Door Air Curtains With High Air Flow Suitable For Indoor Hospital / Keeping Fresh Air

50HZ 1164CFM 46dB Indoor Air Curtains For Hospital

Voltage / Frequency 220 - 240V / 50Hz or 110V / 60HZ , 110V / 50HZ , 220V / 60HZ are all available

Model Diameter of Impeller Input Power Air
Velocity		 Air Volume Noise Net
Weight		 Gross
Weight		 Unit Size Carton Size Mounting
Height
(mm) (W) (m/s) (m³/h)/CFM (dB) (KG) (KG) (mm) (mm) (m)
FM-1209A-2(Y) 120 150 11 1780/1047 ≤45 10.2 12.5 900×220×195 940×265×220 2.3-3
FM-1210A-2(Y) 120 150 11 1980/1164 ≤46 12.3 13.8 1000×220×195 1040×265×220 2.3-3
FM-1212A-2(Y) 120 180 11 2370/1394 ≤48 13.7 15.5 1200×220×195 1240×265×220 2.3-3
FM-1215A-2(Y) 120 250 11 2970/1747 ≤49 16.3 18.5 1500×220×195 1540×265×220 2.3-3

INSTALLATION DIAGRAM

Step 1 Remover mounting plate from air curtain fuselage

50HZ 1164CFM 46dB Indoor Air Curtains For Hospital

Step 2 If installed on concrete and other hard wallk , need postion the mounting fix screw for

the mounting plate on the wall and then fix with M8 expansion screw , the exposed part of

the expansion screw is ensured to be in 13-15 mm .

50HZ 1164CFM 46dB Indoor Air Curtains For Hospital

Step 3 If mounted on a wooden board or soft , use STS tapping screw , Fix the mounting plate ot the wall

50HZ 1164CFM 46dB Indoor Air Curtains For Hospital

Step 4 Installation method of glass door

1 / Use strong nail - free glue direct smear to installation , Solidity , Affordable and artistic

2 / Make a strut horizontally for fixting the gusset plate of the air curtain machine

50HZ 1164CFM 46dB Indoor Air Curtains For Hospital

Door Air Curtains Working Principle

50HZ 1164CFM 46dB Indoor Air Curtains For Hospital

PRODUCT PARAMETERS

50HZ 1164CFM 46dB Indoor Air Curtains For Hospital

50HZ 1164CFM 46dB Indoor Air Curtains For Hospital
