2970CFM Wall Mounted Cooling Door Air Curtains For Shopping Mall
2970CFM Wall Mounted Cooling Door Air Curtains For Shopping Mall
2970CFM Wall Mounted Cooling Door Air Curtains For Shopping Mall
2970CFM Wall Mounted Cooling Door Air Curtains For Shopping Mall
Specifications
Brand Name :
NANYOO / OME
Model Number :
FM-1215A-2(Y)
Certification :
CE/CB/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
15000 pcs per month
Delivery Time :
20-30 work days
Packaging Details :
Carton With Foam Protection
Fan Type :
Cross Flow Fan
Name :
Door Air Curtains / Cross Flow Air Curtain Door
Voltage :
110V / 220-240V
Size :
0.9m / 1.0m / 1.2m / 1.5m for options
Air Flow :
2970 CFM
Mounting Height :
2.3-3 m
Mounting :
Door / Wall / Window Mount Or Other
Application :
Commercial, Shopping Malls, Airports, Restaurant, Warehouses
Description

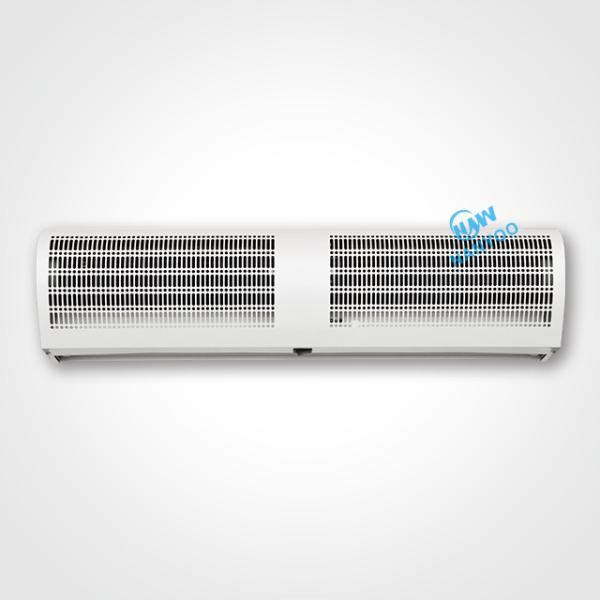

Wall Mounted Cooling Cross Flow Air Curtain For Shopping Mall Door

Saving 90% Engery / Closs Flow Door Air Curtains With High Air Flow / Pure Copper Motor

Slim all metal housing with esthetic curved design - Natural Air Curtain

2970CFM Wall Mounted Cooling Door Air Curtains For Shopping Mall

Cross Flow Type -

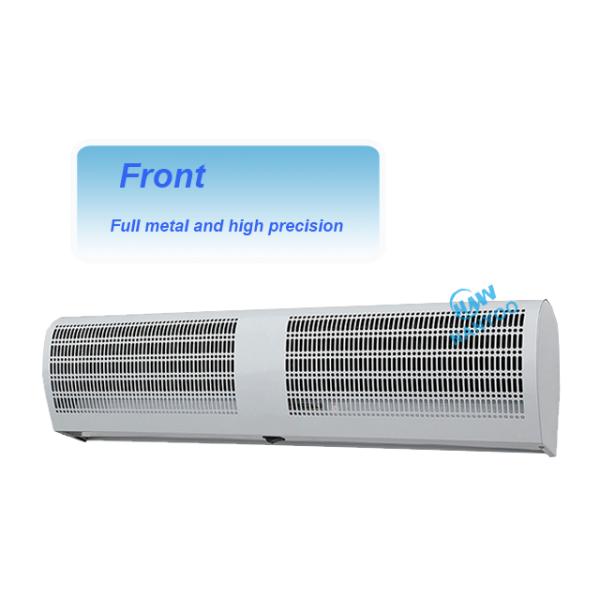

* Slim all metal housing with esthetic curved design.
* Full metal shell and minimal maintenance.
* Easy installation and cleaning.

PRODUCTS PARAMETERS

2970CFM Wall Mounted Cooling Door Air Curtains For Shopping Mall

Voltage / Frequency 220 - 240V / 50Hz or 110V / 60HZ , 110V / 50HZ , 220V / 60HZ are all available

Model Diameter of Impeller Input Power Air
Velocity		 Air
Volume		 Noise Net
Weight		 Gross
Weight		 Unit
Size		 Carton
Size		 Mounting
Height
(mm) (W) (m/s) (m³/h)/CFM (dB) (KG) (KG) (mm) (mm) (m)
FM-1209A-2(Y) 120 150 11 1780/1047 ≤45 10.2 12.5 900×220×195 940×265×220 2.3-3
FM-1210A-2(Y) 120 150 11 1980/1164 ≤46 12.3 13.8 1000×220×195 1040×265×220 2.3-3
FM-1212A-2(Y) 120 180 11 2370/1394 ≤48 13.7 15.5 1200×220×195 1240×265×220 2.3-3
FM-1215A-2(Y) 120 250 11 2970/1747 ≤49 16.3 18.5 1500×220×195 1540×265×220 2.3-3

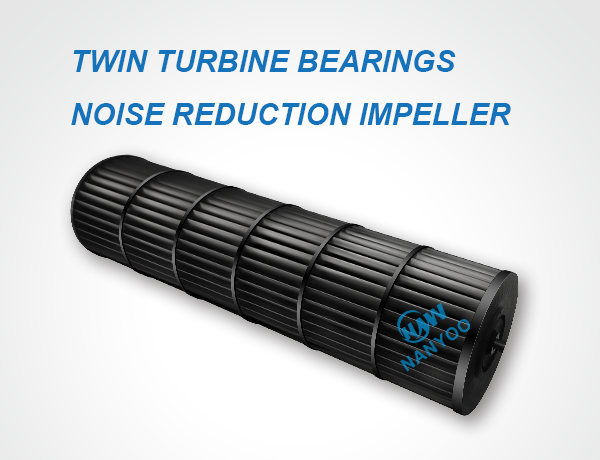

Fibergalss material impeller , Good sound insulation effect , Heatproof , Non-flammable , Corrosion resistance

Low noise , Durable / High material , Good design , Excellence performance

2970CFM Wall Mounted Cooling Door Air Curtains For Shopping Mall

Door Air Curtains Working Principle - Saving 90% Engergy

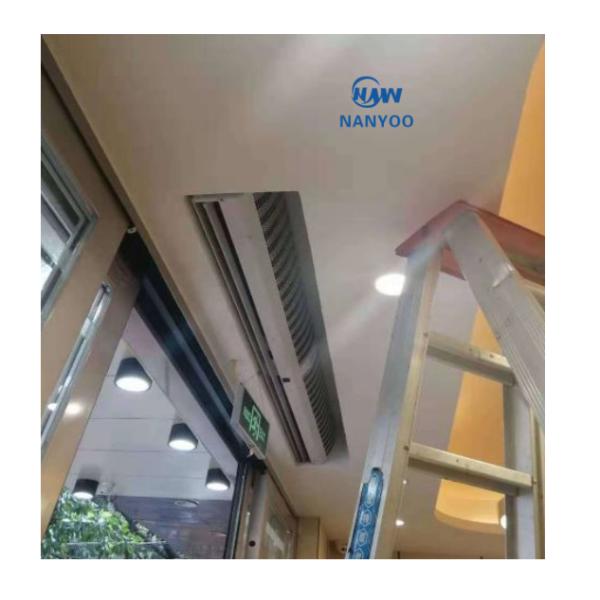

Door Air curtains / Door air barrier also known as Air door , Air Barrier , widely used in Factories , Shops , Restaurants ,

Pharmacies , Cold storage , Hotels , Hospitals , Airports , Stations and other environments and all air-conditioned place .

Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating

Indoor and Outdoor air , reduce energy consumption , prevent the intrusion of dust , insects and harmful gases

and provide a comfortable working , shopping and leisure environment .

2970CFM Wall Mounted Cooling Door Air Curtains For Shopping Mall


INSTALLATION DIAGRAM

Step 1 Remover mounting plate from air curtain fuselage

2970CFM Wall Mounted Cooling Door Air Curtains For Shopping Mall

Step 2 If installed on concrete and other hard wallk , need postion the mounting fix screw for

the mounting plate on the wall and then fix with M8 expansion screw , the exposed part of

the expansion screw is ensured to be in 13-15 mm .

2970CFM Wall Mounted Cooling Door Air Curtains For Shopping Mall

Step 3 If mounted on a wooden board or soft , use STS tapping screw , Fix the mounting plate ot the wall

2970CFM Wall Mounted Cooling Door Air Curtains For Shopping Mall

Step 4 Installation method of glass door

1 / Use strong nail - free glue direct smear to installation , Solidity , Affordable and artistic .

2 / Make a strut horizontally for fixting the gusset plate of the air curtain machine

2970CFM Wall Mounted Cooling Door Air Curtains For Shopping Mall

Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating

Keeping indoor with fresh air
