Metal Housing Centrifugal Flow Industrial Air Curtain Door For Tall Gate
Metal Housing Centrifugal Flow Industrial Air Curtain Door For Tall Gate
Metal Housing Centrifugal Flow Industrial Air Curtain Door For Tall Gate
Metal Housing Centrifugal Flow Industrial Air Curtain Door For Tall Gate
Specifications
Brand Name :
NANYOO
Model Number :
FM-6012GY
Certification :
CE CB SASO CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
10000 pcs per Month
Delivery Time :
20-35 work days
Packaging Details :
Carton
Type :
Air Curtain,Other,Commercial & Air door
Mounting :
Door/ Gate/ Wall Mounting
Operating voltage :
110V , 220V , 380V/50HZ/60HZ
Warranty :
5 years for motor, 1 year for main parts
Condition :
Used
Product name :
Door/ Window /Wall Air Curtain, Competitive Price Commercial / Industrial Door Air Curtains
Application :
Commercial, Shopping Malls, Airports, Restaurant, Warehouses
Noise level :
65db
Blower :
Metal Blower
Description

Metal Housing Centrifugal Flow Industrial Air Curtain Door For Tall Gate

Industrial Air Curtain Centrifugal Flow With Metal Casing Design Use For Tall Gate / Door / Factories , Shopping Mall

What is Industrial Air Curtain ?

Industrial normally use centrifugal flow system to have larger air flow and stronger air pressure so that can working at 5m to 8m height place mounted .

Basing on the stronger air speed and air flow, Industrial Air Curtain often applicable in factories , shopping mall , warehouse and such sites where have tall gate .

USING OCCASIONS -- Werehouse logistics

Specifications for your reference

110V/60Hz, 110V/50Hz, 220V/60Hz are all available

Model Voltage /Frequency Input Power (W) Air
Velocity (m/s)		 Air Volume (m³/h)/CFM Noise (dB) Fuselage Size Mounting Height
( V / HZ) H H H H (mm) (m)
FM-6009GY 220-240/50 800 21 3500 ≤63 914x345x351 6 - 7
FM-6012GY 220-240/50 1200 21 4650 ≤65 1218x345x351 6 - 7
FM-6015GY 220-240/50 1600 21 5700 ≤66 1523x345x351 6 - 7
FM-6009GY 380 /50 1100 24 3750 ≤65 988 x 410 x 417 6 - 8
FM-6012GY 380 /50 1600 24 5000 ≤66 1292 x 410 x 417 6 - 8
FM-6015GY 380 /50 2200 24 6250 ≤68 1597 x 410 x 417 6 - 8

Features and Functions

  • Metal housing for fire resistance .
  • Powder coating for rust free .
  • New ventilating air duct gives a high pressure , and mouthing height up to 6-8 meters.

Industrial Air Curtains - model explanation

Metal Housing Centrifugal Flow Industrial Air Curtain Door For Tall Gate

Air curtain can effectively isolate convection indoor and outdoor and keep temperature and humidity.

Especially used in the location with air conditioner to keep indoor environment and save energy of

refrigeration equipment.

In addition, industrial air curtain can prevent the invasion of dust, pest and harmful fumes from outside.

In this way, a comfortable indoor climate is maintained.

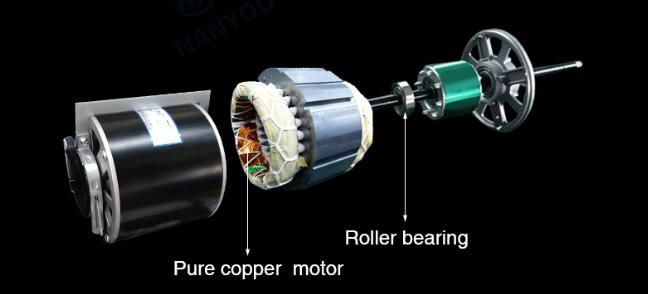

30 Years professional technology focus on motor
Higher efficient motor / More energy saving / Longer service life
Using bigger core diameter , longer core lengh ,
Big stator slot dimensions and greater copper wire
And weight to increase efficiency.

Metal Housing Centrifugal Flow Industrial Air Curtain Door For Tall Gate

Remove switch

Specially air guide plate design, with adjustable air direction provide thicker air barrier.

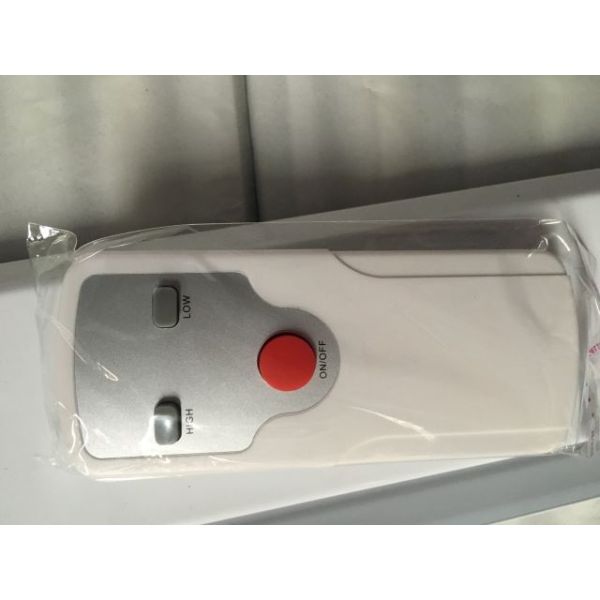

Available with new remote control and key switch with selectable high and low air velocity.

Metal Housing Centrifugal Flow Industrial Air Curtain Door For Tall Gate
