Strong Wind Metal 1720m3/H Wall Mounted Air Curtain For Library Door
Strong Wind Metal 1720m3/H Wall Mounted Air Curtain For Library Door
Strong Wind Metal 1720m3/H Wall Mounted Air Curtain For Library Door
Strong Wind Metal 1720m3/H Wall Mounted Air Curtain For Library Door
Strong Wind Metal 1720m3/H Wall Mounted Air Curtain For Library Door
Strong Wind Metal 1720m3/H Wall Mounted Air Curtain For Library Door
Specifications
Brand Name :
NANYOO / OEM / ODM
Model Number :
FM-1010H3-2(Y)
Certification :
CE/CB/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
15000 pcs per month
Delivery Time :
30-35 work days
Packaging Details :
Carton With Foam Protection
Product name :
Remote Control Cross Flow Strong Wind Low Noise Metal Door Air Curtain / air curtain door
Fan Type :
Cross Flow Fan
Operating voltage :
220 - 240 VAC ,110-115 VAC
Air volume :
1720 m3/h
Size :
1000 mm door width
Mounting Height :
2.3-3 M
Funtion :
Commercial building / Hotels / Shopping store / Library
Motor Material :
Pure copper motor warranty for 5 years
Description

Strong Wind Metal Cross Flow Commercial Door Air Curtains For Shopping Center

WHY USE AIR CURTAIN ( CURTAIN MACHINE ) ?

Conventioal - PVC curtain

Affect the image , Obstructing the view of customers , easy dirty and not easy to clean , Poor customer experience

the inconvenience goes out and in and it will let people a sense of rejection .

PRODUCT PARAMETERS

Voltage / Frequency 220 - 240V / 50Hz , or 110V / 60Hz , 110V / 50Hz , 220V / 60Hz are all available

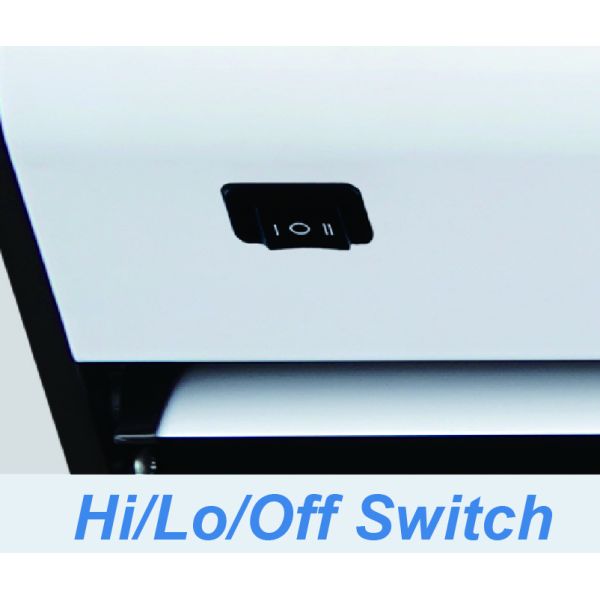

2 SPEEDS(With Or W / O The Remote Control)

Model

 Diameter of Impeller Input Power Air
Velocity 		Air Volume Noise Fuselage Size Mounting Height
(mm) (W) (m/s) (m³/h)/CFM (dB) (mm) (m)
FM-1009H3-2(Y) 100 100 10-11 1550 ≤45 910×178×176 2.3-3
FM-1010H3-2(Y) 100 115 10-11 1720 ≤45 1005×178×176 2.3-3
FM-1012H3-2(Y) 100 135 10-11 2130 ≤46 1205×178×176 2.3-3
FM-1015H3-2(Y) 100 150 10-11 2650 ≤48 1500×178×176 2.3-3
FM-1018H3-2(Y) 100 180 10-11 3200 ≤50 1795×178×176 2.3-3
FM-1020H3-2(Y) 100 185 10-11 3550 ≤52 2000×178×176 2.3-3

Door Air Curtain can help you solve this problem and saving 90% energy

Cross Flow Commercial Economical Door Air Curtains / Low Noise Machine And Higher Air Volume

And High Speed

Multiple voice noise reduction technology , more quiet , and noise low for 45 dB

Comfortable working environment and enjoy your working .

Four advanced technology , it's differed from the others . (It's unusual )

1 / 30 years for motor R & D and manuafacturing , more reliable quality

2 / Use fluid mechanics rotor designs , the wind force got stronger and less noise

3 / Impeller with glass fiber material , good sound insulation performances / insulation / corrosion resistance and durable

4 / Dual Direction inlet air , wind noise is more lower

Strong Wind Metal 1720m3/H Wall Mounted Air Curtain For Library Door

APPLICATIONS

Widely used in door / gate of public places

Hotel and Restaurant / Shopping Center

30 years professional technology focus on motor

Higher efficient , more quiet , Longer service life / Using bigger core diameter , longer core length ,

big stator slot dimensions and thicker copper wire .

under the same air volume and wind pressure , the motor design with lower power , provides more energy saving

and longer service life

Strong Wind Metal 1720m3/H Wall Mounted Air Curtain For Library Door
