Fashion Design Centrifugal Commercial ABS Plastic Door Air Barrier For Shops
Fashion Design Centrifugal Commercial ABS Plastic Door Air Barrier For Shops
Fashion Design Centrifugal Commercial ABS Plastic Door Air Barrier For Shops
Fashion Design Centrifugal Commercial ABS Plastic Door Air Barrier For Shops
Specifications
Brand Name :
NANYOO / OME / ODM
Model Number :
FM-3515QS
Certification :
CE &CB &ROHS
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability :
15000 pcs per month
Delivery Time :
30-35 work days
Packaging Details :
Carton With Foam Protection
Product name :
Commercial Air Curtain Door / Door Air Barrier
Fan Type :
Centrifugal Flow Fan
Material :
ABS Plastic Housing
Operating voltage :
110V / 60HZ & 220V / 50HZ
Size :
1500MM For Door Width
Motor :
Copper Motor Warranty For 5 Years
Condition :
Used , With Filter

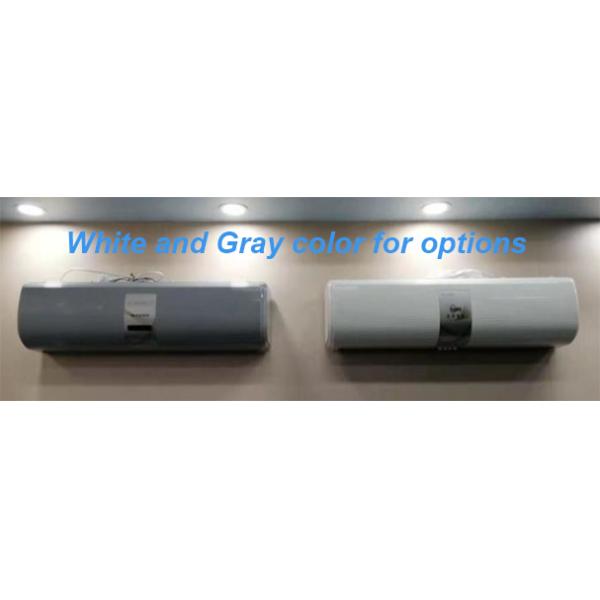

Color :
White / Gray Color For Options
Mounting :
In Door/ Wall / Window Mount / Gate of Public Places
Control :
Button + Remote
Noise :
Low Noise Level
After-sales service provided :
Free Spare Parts, Online Support
Description

Fashion Design Centrifugal Commercial ABS Plastic Door Air Barrier For Shops

Fashion Design Centrifugal Commercial ABS Plastic Door Air Barrier For Shops

Centrifugal Flow Door Air Curtain ( Barrier ) - SPECIFICATION

Model Input Power (W) Air Velocity (m/s) Air Volume (m³/h)/CFM Noise (dB) Unit Size Mounting Height
H M L H M L H M L H M L (mm) (m)
FM-3509QS-L/Y(X) 200 180 150 15.5 14.3 12.5 1080/635 996/586 870/512 ≤44 ≤42 ≤41 900x230x220 3-3.5
FM-3512QS-L/Y(X) 250 225 185 15.5 14.3 12.5 1450/853 1337/786 1168/687 ≤45 ≤43 ≤42 1200x230x220 3-3.5
FM-3515QS-L/Y(X) 325 290 240 15.5 14.3 12.5 1800/1059 1600/941 1398/822 ≤48 ≤46 ≤44 1500x230x220 3-3.5
FM-4509QS-L/(Y)(X) 350 260 200 19 16 12.5 1320/776 1100/647 860/506 ≤46 ≤44 ≤42 900x230x220 4-4.5
FM-4512QS-L/(Y)(X) 440 320 225 19 16 12.5 1770/1041 1455/856 1150/676 ≤47 ≤45 ≤43 1200x230x220 4-4.5
FM-4515QS-L/(Y)(X) 575 435 330 19 16 12.5 2200/1294 1850/1088 1450/853 ≤50 ≤47 ≤45 1500x230x220 4-4.5
FM-5509QS-L/(Y)(X) 440 325 250 22 18.5 14.5 1520/894 1270/747 1000/588 ≤52 ≤50 ≤47 900x230x220 5-5.5
FM-5512QS-L/(Y)(X) 530 385 270 22 18.5 14.5 2027/1192 1670/1044 1330/782 ≤54 ≤52 ≤50 1200x230x220 5-5.5
FM-5515QS-L/(Y)(X) 710 535 405 22 18.5 14.5 2543/1496 2135/1256 1680/988 ≤55 ≤53 ≤51 1500x230x220 5-5.5

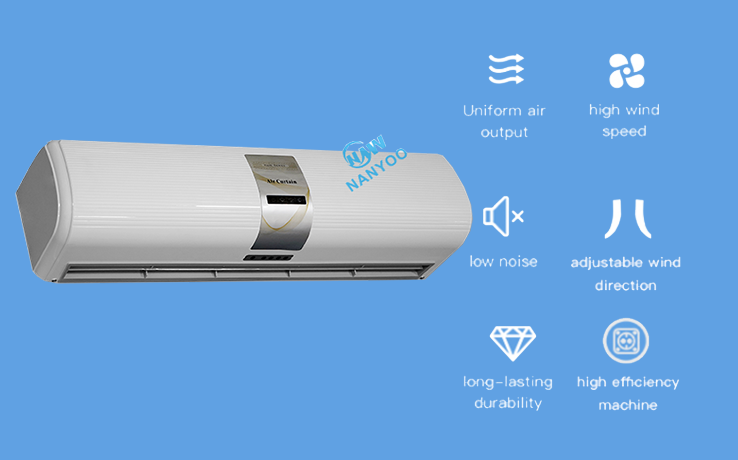

Centrifugal Flow Door Air Curtain ( Barrier ) - FEATURES

  • Plastic appearance with special and elegant design.
  • With filter and easy cleaning.
  • Four control modes to meet different clients needs and locations​.

Fashion Design Centrifugal Commercial ABS Plastic Door Air Barrier For Shops

​

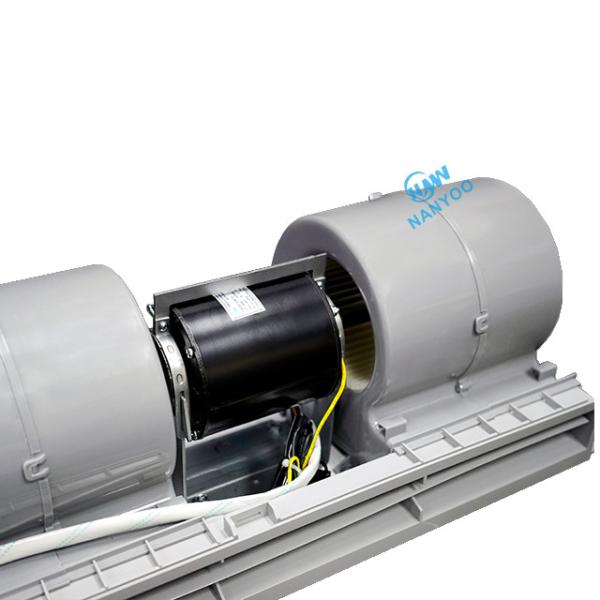

Motor : Mute Centrifugal - FLOW TURBINE

Greater air pressure , Air velocity is stronger , Lower noise

Working Principle : SAVING 90% ENERGY

Air curtain , also known as Air door , Air Barrier , widely used in Factories , Shops , Restaurants , Pharmacies ,

Cold storage , Hotels , Hospitals , Airports , Stations and other environments and all air-conditioned place .

Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating

Indoor and Outdoor air, reduce energy consumption , prevent the intrusion of dust , insects and harmful gases ,

and provide a comfortable working, shopping and leisure environment .

Fashion Design Centrifugal Commercial ABS Plastic Door Air Barrier For Shops
