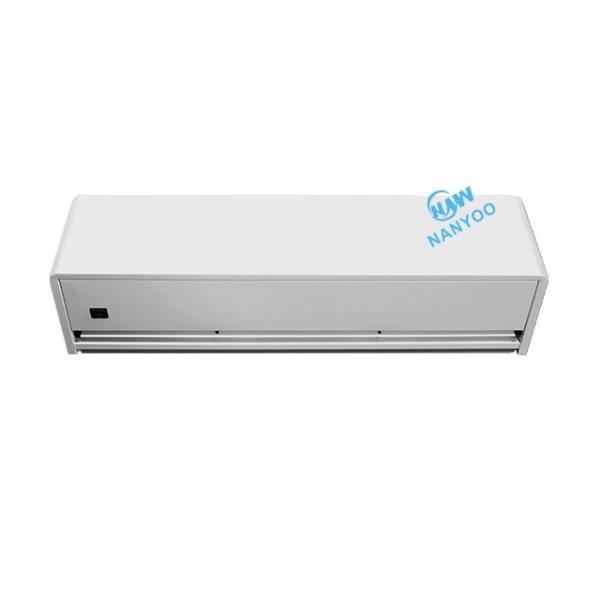

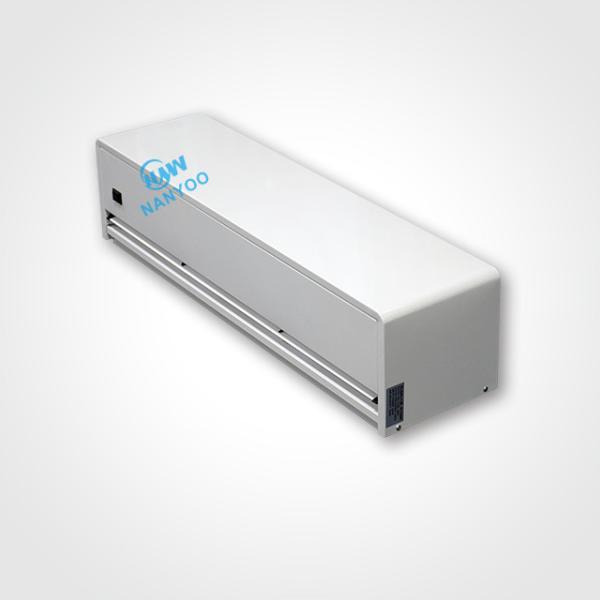

3D Door Air Barrier Full Metal Casing White Color With Strong Air Volume
3D Door Air Barrier Full Metal Casing White Color With Strong Air Volume
3D Door Air Barrier Full Metal Casing White Color With Strong Air Volume
3D Door Air Barrier Full Metal Casing White Color With Strong Air Volume
Specifications
Brand Name :
NANYOO / OME / ODM
Model Number :
FM-3510H(B)-L(Y)-(MC)
Certification :
CE/CB/CCC/ROHS
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
5000 per month .
Delivery Time :
30-35 work days
Packaging Details :
Carton With Foam Protection
Fan Type :
Centrifugal Flow
Material :
Durable Full Metal Casing
Product name :
Commercial Air Curtain/ Door air barrier
Voltage :
220V/110V
Frequency :
50Hz/60 Hz
Control type :
Button/ Remote control options
Funtion :
Greater Air Pressure ,Air Speed is Strong, Lower Noise
Application :
Indoors / Restaurant / Shopping Mall / Coffee Shop, Hotel
Description

3D Door Air Barrier Full Metal Casing White Color With Strong Air Volume

Uniform forced airflow / Air speed more than 14.5m/s

Door Air Barrier - FEATURES
* Full metal casing with unique design .
* Centrifugal style fan .
* Uniform forced airflow .
* Air speed more than 14.5 m / s .

Model - H eries Product parameters

Model Diameter of Impeller

Input Power

(W)

Air
Velocity 		Air Volume Noise Fuselage Size Mounting Height
(mm) H (m/s) (m³/h)/CFM (dB) (mm) (m)
FM-3509H(B)-L(/Y)(-MC) 120 230 14.5 1020/600 ≤44 900×235×215 3.0-3.5
FM-3510H(B)-L(/Y)(-MC) 120 230 14.5 1020/600 ≤44 1000×235×215 3.0-3.5
FM-3512H(B)-L(/Y)(-MC) 120 305 14.5 1360/800 ≤45 1200×235×215 3.0-3.5
FM-3515H(B)-L(/Y)(-MC) 120 385 14.5 1700/1000 ≤48 1500×235×215 3.0-4.5
FM-3518H(B)-L(/Y)(-MC) 120 460 14.5 2040/1200 ≤50 1800×235×215 3.0-3.5
FM-3520H(B)-L(/Y)(-MC) 120 460 18 20401200 ≤50 2000×235×215 3.0-3.5
FM-4509H(B)-L(/Y)(-MC) 120 330 18 1260/741 ≤46 900×235×215 4.0-4.5
FM-4510H(B)-L(/Y)(-MC) 120 330 18 1260/741 ≤46 1000×235×215 4.0-4.5
FM-4512H(B)-L(/Y)(-MC) 120 420 18 1680/988 ≤47 1200×235×215 4.0-4.5
FM-4515H(B)-L(/Y)(-MC) 120 545 18 2100/1235 ≤50 1500×235×215 4.0-4.5
FM-4518H(B)-L(/Y)(-MC) 120 635 18 2520/1482 ≤52 1800×235×215 4.0-4.5
FM-4520H(B)-L(/Y)(-MC) 120 635 18 2520/1482 ≤52 2000×235×215 4.0-4.5
FM-5509H(B)-L(/Y)(-MC) 120 440 21 1450/853 ≤48 900×235×215 5.0-5.5
FM-5510H(B)-L(/Y)(-MC) 120 440 21 1450/853 ≤48 1000×235×215 5.0-5.5
FM-5512H(B)-L(/Y)(-MC) 120 550 21 1930/1135 ≤49 1200×235×215 5.0-5.5
FM-5515H(B)-L(/Y)(-MC) 120 780 21 2420/1423 ≤52 1500×235×215 5.0-5.5
FM-5518H(B)-L(/Y)(-MC) 120 830 21 2900/1706 ≤54 1800×235×215 5.0-5.5
FM-5520H(B)-L(/Y)(-MC) 120 830 21 2900/1706 ≤54 2000×235×215 5.0-5.5

3D Door Air Barrier Full Metal Casing White Color With Strong Air Volume

Mute Centrifugal - Flow Turbine

Greater Air Pressure, Air Speed is Stronger, Lower Noise

The blower with a volute, make the air pressure even higher, strong air speed, the noise will be lower

due to the effect of the volute

From a strong invisible door to block air circulation

3D Door Air Barrier Full Metal Casing White Color With Strong Air Volume

NANYOO AIR CURTAIN ( Working Principle ) - SAVING 90% ENERGY

Door Air curtain / Door air barrier also known as Air door , Air Barrier , widely used in Factories ,

Shops , Restaurants , Pharmacies , Cold storage , Hotels , Hospitals , Airports , Stations

and other environments and all air-conditioned place .

Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean ,

prevent air circulating .

Indoor and Outdoor air , reduce energy consumption , prevent the intrusion of dust ,

insects and harmful gases and provide a comfortable working , shopping and leisure environment .3D Door Air Barrier Full Metal Casing White Color With Strong Air Volume

Refer Noise information

3D Door Air Barrier Full Metal Casing White Color With Strong Air Volume
