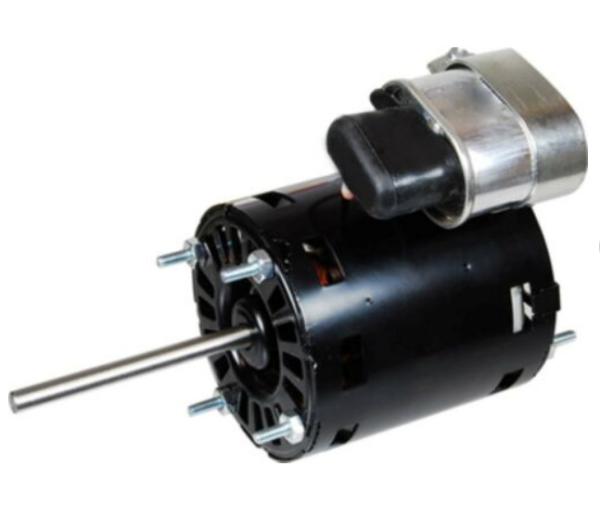

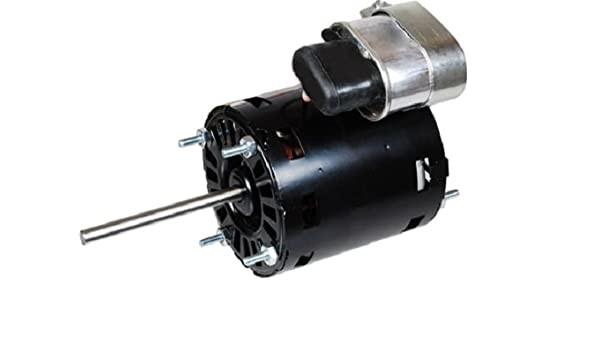

HVAC Ventilation Fan Motor 3.3 Inch Bathroom Exhaust Fan Motors PSC
HVAC Ventilation Fan Motor 3.3 Inch Bathroom Exhaust Fan Motors PSC
HVAC Ventilation Fan Motor 3.3 Inch Bathroom Exhaust Fan Motors PSC
HVAC Ventilation Fan Motor 3.3 Inch Bathroom Exhaust Fan Motors PSC
HVAC Ventilation Fan Motor 3.3 Inch Bathroom Exhaust Fan Motors PSC
HVAC Ventilation Fan Motor 3.3 Inch Bathroom Exhaust Fan Motors PSC
Specifications
Brand Name :
AirVent
Model Number :
SP8382
Certification :
CCC,UL,CE
Place of Origin :
China
MOQ :
2000PCS
Price :
$8
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
4~6weeks
Packaging Details :
Cartons
Speeds :
2
AMPs :
0.4
Rotation :
CW
RPM :
1550
Bearings :
Sleeve
Diameter :
3.3
Enclosure :
Open Air Vent
Mount :
Stubs
Overload Protection :
Automatic
Shaft Dimension :
5/16*2 3/8
Watts :
15
Shaft Length :
2-3/4
Include :
Capacitors
Type :
PSC
Voltage :
115V
Description

General Description:

3.3" PSC motors are a type of fractional horsepower, small, single phase induction motors that power fans and blowers. These motors are designed for direct-drive air moving applications in HVAC systems and mechanical applications including pumps.

Benefits:
  • Low Cost
  • High Reliability
  • Drop-in replacements for existing Shaded Pole motors
  • Wide range of application compatibility

Features:

  • UL/CSA recognized
  • Robust Construction
  • Numerous Mounting Configurations
  • 120-460VAC models
  • Up to 4 speeds
  • Thermal protected
  • Class B & H Insulation
  • Sleeve and ball bearing
  • Metal or Plastic Blower Housing

Specifications:

  • HP: 1/75 to 1/3
  • Speed: 1000 - 3500 RPM
  • Airflow: 15 - 1200 CFM
  • Volts: 120 to 460VAC
  • Duty: Intermittent or Continuous
  • Service Factor (SF): 1.0
  • Torque: 2.0 to 120 oz-in
  • Hz: 50 or 60
  • Phase: Single
  • Enclosure Type: Vented, Totally Enclosed, Totally Enclosed Air Over
  • Rotation: CW/CCW
  • Number of Speeds: up to 4
  • Maximum Ambient Temperature: 60°C
