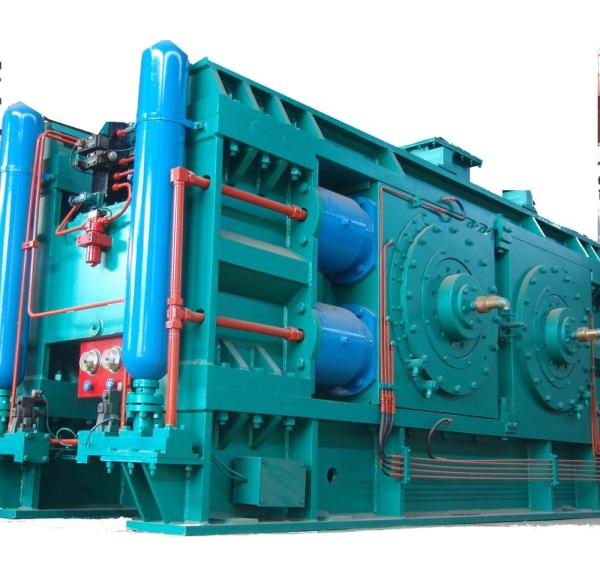

21 - 155 T / H Roller Press Cement Mill , 800 - 3550 Kw Cement Raw Mill
21 - 155 T / H Roller Press Cement Mill , 800 - 3550 Kw Cement Raw Mill
21 - 155 T / H Roller Press Cement Mill , 800 - 3550 Kw Cement Raw Mill
21 - 155 T / H Roller Press Cement Mill , 800 - 3550 Kw Cement Raw Mill
Specifications
Brand Name :
AGICO
Capacity :
21-155 t/h
Power :
800-3550 kw
Specific surface area :
330-380m²/kg
Item :
cement rolling press
Advantages :
reliable and stable
Keyword :
cement grinding plant
Price :
Negotiation
Description

cement rolling press

Our rolling mill is a new type of cement grinding equipment developed on the basis of advanced technology. Its grinding system integrates rolling, dispersing, separating, drying and powder separation. In addition, when used with a ball mill, it can be used in a variety of processes such as pre-grinding, mixing, semi-finished grinding, finished grinding, and the like. Due to changes in the grinding principle, the mill and its grinding system have more advantages, such as a 50-100% reduction in energy consumption and a 100-300% increase in productivity.

Advantages of cement roller press

  • Thermal surfacing has been adopted to make the maintenance of the wear layer more convenient. At the same time, the number of microcracks is greatly reduced, and the service life of the roller surface is not less than 8000h. It is very easy to maintain the roller surface.
  • Aviation hydraulic technology makes the hydraulic system more reliable and stable.
  • With the hydraulic system and automatic control system, it can complete the load control of the main drive motor, the deviation control of the roller pitch, automatic deviation adjustment and fault diagnosis.
  • The matched powder separator has the ability of dispersion, classification and drying, which can reduce operating costs and improve work efficiency.

​specifications

Model of roller press PFG
200-180		 PFG
180-160		 PFG
180-120		 PFG
170-100		 PFG
160-140		 PFG
150-100
Diameter of roller Φ2000 Φ1800 Φ1800 Φ1700 Φ1600 Φ1500
Width of the roller 1800 1600 1200 1000 1400 1000
Width of the roller(m/s) 1.83 1.74 1.75 1.47 1.47 1.50
Normal working distance
between rollers(mm)		 25-50 25-45 24-45 25-45 25-45 22-40
Maximum feed
partied size (mm)		 65 65 65 60 60 60
Maximum feed
temperature (℃)		 ≤130 ≤130 ≤130 ≤130 ≤130 ≤130
Grinding
capacity		 clinker(t/h) 1000-1250 920-1120 650-750 480-620 600-720 460-500
Raw meal(t/h) 1050-1280 920-1150 700-820 500-650 650-760 480-520
Main
motor		 Model YRKK7104-4 YR6302-4 YR560-4 YR5004-4 YRKK630-6 YR5002-4
Power(kw) 2000×2 1600×2 1250×2 900×2 1120×2 710×2
Rotary speed(r/min) 1000 1490 1480 1485 993 1485
Voltage(v) ~10000 ~10000 ~10000 ~10000 ~10000 ~10000
Model of main motor GYM23PZN GYM2292N GYM18PZN RPG29 GYM18P2N RPG26
Weight (t) 290 250 250 208 212 178
Model of roller press PFG
140-120		 PFG
140-80		 PFG
140-70		 PFG
140-65		 PFG
120-60		 PFG
120-50
Diameter of roller Φ1400 Φ1400 Φ1400 Φ1400 Φ1200 Φ1200
Width of the roller 1200 850 700 650 600 500
Width of the roller(m/s) 1.52 1.46 1.48 1.48 1.47 1.47
Normal working distance
between rollers(mm)		 18-35 18-35 18-35 18-35 16-30 16-30
Maximum feed
partied size (mm)		 60 60 60 60 55 55
Maximum feed
temperature (℃)		 ≤130 ≤130 ≤130 ≤130 ≤130 ≤130
Grinding
capacity		 clinker(t/h) 460-530 300-350 240-334 240-300 110-165 115-170
Raw meal(t/h) 485-550 320-390 280-360 260-320 175-220 130-195
Main motor Model YR500-4 YR560-6 YR5001-8 YR5001-8 Y355L-6 Y315L-6
Power(kw) 800×2 560×2 500×2 500×2 280×2 250×2
Rotary speed(r/min) 1485 1485 740 740 960 960
Voltage(v) ~10000 ~10000 ~600 ~600 ~380 ~380
Model of main motor RPG28 PRG23 XGL48 XGL48 XGM38 XGL38
Weight (t) 176 125 120 115 68 64

Working principles

The motor drives the grinding disc to rotate through the reducer, and the material falls from the feeding opening to the center of the grinding disc, moves to the edge of the grinding disc under the action of centrifugal force and is crushed by the grinding roller, and the pulverized material overflows from the edge of the grinding disc and is simultaneously from the nozzle ring ( Wind Ring) The high-speed upward hot air flow is brought to the high-efficiency classifier integrated with the vertical mill. The coarse powder is sorted by the separator and returned to the grinding disc for re-grinding; the fine powder is ground with the airflow and is collected in the system. Collected in the dust device, that is, the product. The coarse-grained material that has not been taken up by the hot air flow and the accidentally entered metal parts fall from the wind ring, are scraped off by the scraping plate, and are fed again into the grinding mill by the externally circulating bucket lifter.
