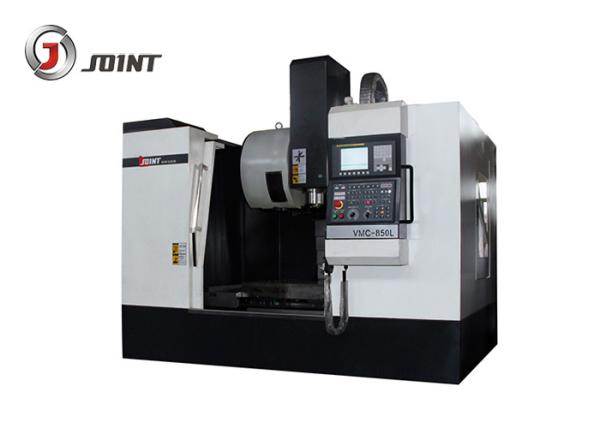

Full Enclosed Cover CNC Machining Center 4 Axis Rotary Table 7.5 Kw Power
Full Enclosed Cover CNC Machining Center 4 Axis Rotary Table 7.5 Kw Power
Specifications
Brand Name :
JOINT
Model Number :
VMC857L
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC/DA/DP
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Table size :
1000*520mm
Travel :
800*550*700mm
Distance between spindle and table :
110-810mm
Spindle speed :
8000rpm
Spindle :
7.5kw BT40 45°
Rapid feed :
24/24/18 m/min
Max load :
500kg
Dimension :
2750*2380*2800mm
Description

500kg Max Load Vertical CNC Machine Parts Processing 7.5kw Power VMC857L

Product features:

1.The VMC is suitable for the mechanical processing and mold making.

2. It can adapt to the processing requirement from rough machining to finish machining.

3. It can also finish many working procedures like milling,drilling,tapping,boring etc.

4. Optional: 4 axis rotary table, 10000rpm/12000rpm/15000rpm spindle speed, spindle oil coolant, heat exchanger, Tool magazine, Chip conveyor etc.

Product advantage:

1. The machine tool external protection of machine tool uses the full protection structure. It is convenient operation, safe and reliable, and nice shape.


2. Guide rail and ball screw of X, Y, Z direction are all use protection device to ensure that the screw and the guide is clean and accurate.


3. The spindle unit is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial.


4. The feed of X, Y, Z direction adopts the inner loop preloading large-lead ball screw with double nut so it is of high feed speed.

5. Z axis matched with counterweight to keep balance, which ensure the spindle box running smoothly and stable.

Specification Of Vertical machine center VMC857L

Model Unit VMC-857L
Travel X axis mm 800
Y axis mm 550
Z axis mm 700
Distance between spindle and table mm 110-810
Working table Table size mm 1000*520
Max. Load of table Kg 500
T slot Pcs－mm-mm 5-18-90
Positioning accuracy X/Y/Z axis mm 0.006/0.006/0.008
Repeated positioning accuracy X/Y/Z axis mm 0.005/0.005/0.007
Spindle Spindle rotation speed Rpm 8000
Spindle taper BT40
Diameter mm Φ150
Rivet model BT40 45°
Rapid feed X/Y/Z axis m/min 30/30/18
Cutting feed X/Y/Z axis m/min 10
Tool magazine Umbrella type Size Tools 20
Too changing time (T-T) Sec 6
Max. diameter/ length/weight of tool mm 100/200/8
Max tool diameter (no tool adjacent) mm 180
Arm type Size Tools 24
Tool changing time (T-T) sec 3.5s
Max. diameter/ /length/weight of tool mm 80/200/8
Max tool diameter (no tool adjacent) mm 150
Total capacity of electric KVA 15
Weight of machine

Kg

 5400
Dimension mm 2750*2380*2800

Standard Accessories:

Fanuc/Mitsubishi Controller system

Full enclosed cover

Spindle encoder position system

Three axis inner encoder feedback system

Auto lubrication system

Pneumatic system

RS 232 Interface

Operation unit

Working light

Tool and tool box

Optional accessories:

Siemens controller or other controller system

Spindle oil coolant

Umbrella type tool magazine

Arm type tool magazine

Screw type auto conveyor

Chain type tool magazine

4 Axis rotary table

Ring spray spindle
