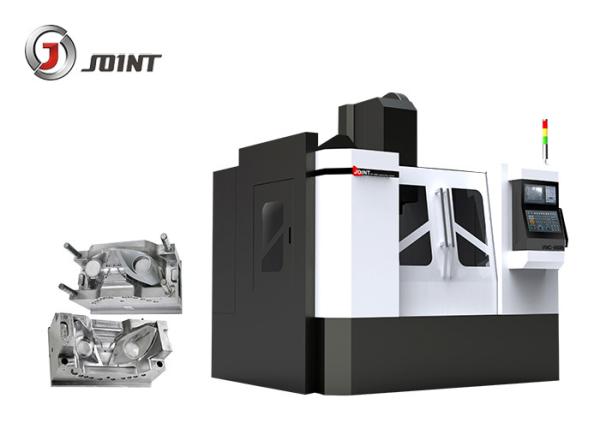

600kg Max Load Vertical CNC Machine , Cnc Moulding Machine For Metal Making
600kg Max Load Vertical CNC Machine , Cnc Moulding Machine For Metal Making
Specifications
Brand Name :
JOINT
Model Number :
VMC650
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC/DA/DP
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Name :
Vertical CNC Machine VMC650
Table :
800*420mm
X axis travel :
650mm
Y axis travel :
400mm
Z axis travel :
480mm
Rapid feed :
10 m/min
Cutting feed :
8 m/min
Net weight :
4200kg
Description

600kg Max Load VMC650 Vertical Machine Center Metal Mould Making Machine Tools

Quick details:

1. Base, slide, table, column, spindle box and other main parts of the use of high-strength cast iron; base for the box structure, compact and reasonable symmetrical structure to ensure that the basic pieces of high rigidity and bending Performance.


2. A-type bridge cross-column and the internal grid-like tendons, effectively ensure the Z-axis strong cutting rigidity and accuracy.

3. Basic pieces of resin sand molding and aging treatment for the long-term use of machine tools to provide a guarantee of machine stability.

4. X, Y, Z guide rail are square way with fast, high rigidity, low friction, low noise, low temperature rise and other characteristics, with automatic forced lubrication, improve machine life.

Product advantage:

1. Taiwan spindle and ball screw, Customer can also chose high speed spindle 10000 rpm or 12000 rpm.

2. We have M70B, M70A, FANUC, Siemens, LNC systems available.

3. The machine outside the protection of the use of full protection structure design, easy operation, safe and reliable.

4. The use of reliable centralized automatic lubrication device, timing, quantitative lubrication of the machine automatically point intermittent lubrication, according to the working conditions to adjust the lubrication time.

5. New structure: spindle with floating tool stroke and screw pre-tensioned to ensure long service life and steady accuracy.

Specification Of Vertical machine center VMC650

Model Unit VMC-650
Travel X axis mm 650
Y axis mm 400
Z axis mm 480
Distance between spindle and table mm 80-560
Working table Table size mm 800*420
Max. Load of table Kg 600
T slot Pcs－mm-mm 3-18-135
Positioning accuracy X/Y/Z axis mm 0.008/0.008/0.008
Repeated positioning accuracy X/Y/Z axis mm 0.007/0.007/0.007
Spindle Spindle rotation speed Rpm 8000
Spindle taper BT40
Diameter mm Φ150
Rivet model BT40 45°
Rapid feed X/Y/Z axis m/min 10
Cutting feed X/Y/Z axis m/min 8
Tool magazine Umbrella type Size Tools 20
Too changing time (T-T) Sec 6
Max. diameter/ length/weight of tool mm 100/200/8
Max tool diameter (no tool adjacent) mm 180
Arm type Size Tools 24
Tool changing time (T-T) sec 3.5s
Max. diameter/ /length/weight of tool mm 80/200/8
Max tool diameter (no tool adjacent) mm 150
Total capacity of electric KVA 15
Weight of machine

Kg

4200
Dimension mm 2300*2270*2350

Standard Accessories:

Fanuc Controller system

8000Rpm spindle

Full enclosed cover

Spindle encoder position system

Three axis inner encoder feedback system

Auto lubrication system

Pneumatic system

RS 232 Interface

Operation unit

RS232 Interface +working light

Tool and tool box

Optional accessories:

Siemens controller or other controller system

Spindle oil coolant

Heat exchanger

Umbrella type tool magazine

Arm type tool magazine

Screw type auto conveyor

Chain type tool magazine

4 Axis rotary table

Ring spray spindle
